Assembly
Access
4-13
CAUTION
CAREFULLY HANDLE
110
CARD
TO
PREVENT DAMAGE
TO
CARD FROM ELECTROSTATIC DISCHARGE OR OTHER CAUSES.
HOLD
BY
EJECTORS OR SIDE EDGES ONLY. DO NOT TOUCH
EDGE CONNECTORS OR CARD PLANES.
IMMEDIATELY
PLACE
CARD
IN
ANTISTATIC BAG OR ON ANTISTATIC SURFACE. \
5. Pull out on card ejectors to release card from 1/0 backplane and slide card out of slot.
Note
Install replacement liD card with ejectors partially
open
until ejectors
clear front edges of card guides. Then push in
firmly
on
the ejectors to
seat card
in
1/0 backplane. Ejectors should
be
flush with 1/0 card when
card
is
fully
seated.
9130K Flexible
Disc
Drive Controller Card
1.
UNPLUG COMPUTER POWER CORD FROM
AC
OUTLET.
2.
Remove right side door as previously described.
3. Remove three
#2
Pozidriv screws from mass storage cover (Figure 4-12).
MASS STORAGE COVER *
1/0
DOOR
*
#2
POZIDRIV MASS STORAGE COVER SCREW
*
1/0
DOOR CAPTIVE THUMB SCREW

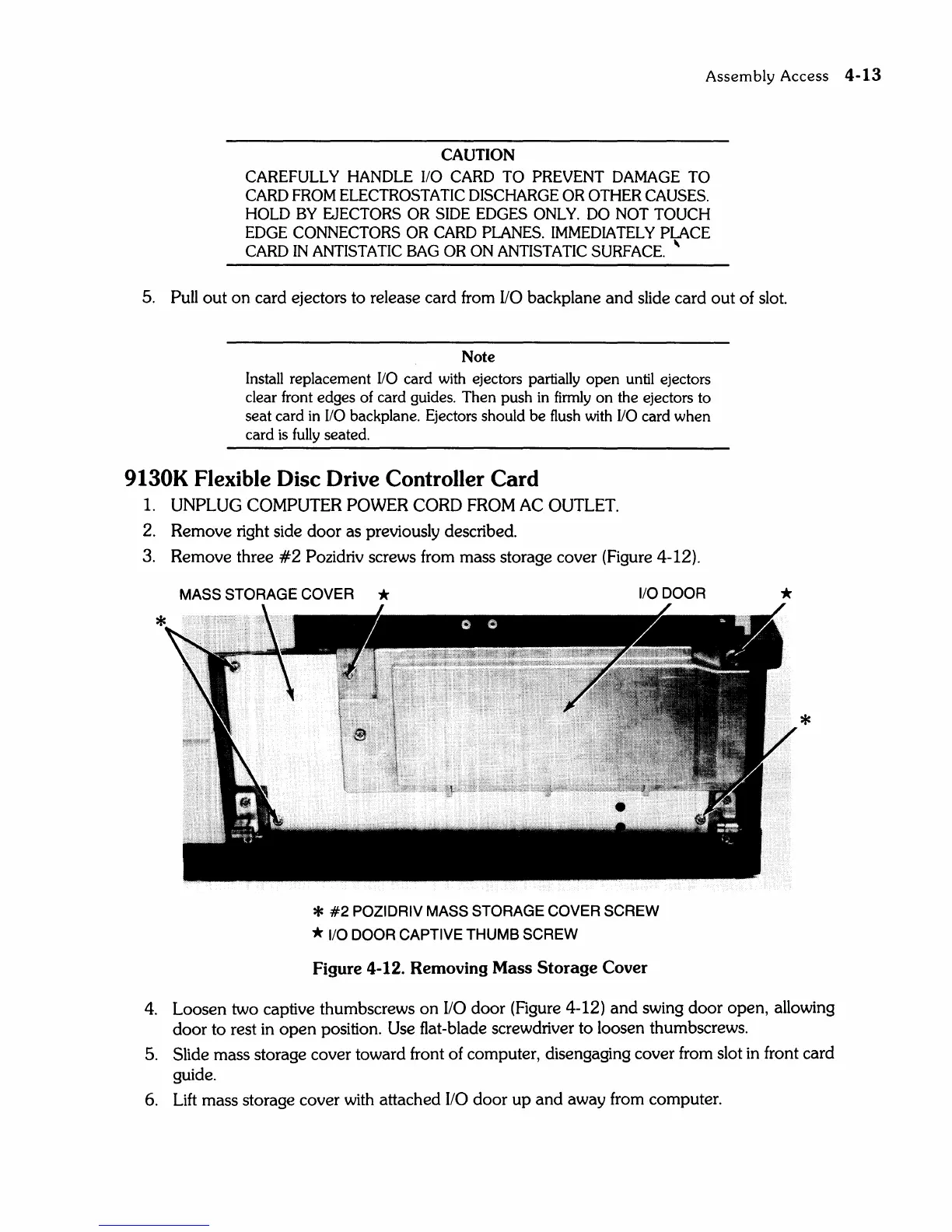

Figure
4-12.
Removing Mass
Storage
Cover
*
*
4.
Loosen two captive thumbscrews on
110
door (Figure 4-12) and swing door open, allowing
door to rest
in
open
position. Use flat-blade screwdriver to loosen thumbscrews.
5. Slide mass storage cover toward front of computer, disengaging cover from slot
in
front card
guide.
6.
Lift
mass storage cover with attached
1/0
door up and away from computer.
