Line Filter
WARNING
AFTER REPLACING THE LINE FILTER, PERFORM CONTINUITY
TEST BETWEEN POWER CORD GROUND AND METAL CHASSIS.
RECORD RESULTS ON REPAIR ORDER.
1.
UNPLUG COMPUTER POWER CORD FROM
AC
OUTLET.
2.
Remove front
and
rear covers as previously described.
3. Disconnect power cord from ac module as previously described.
4.
Disconnect ground cable from ac module cover (Figure 4-63).
Assembly
Access 4-61
5. Remove two
#2
Pozidriv screws that attach display connector assembly to ac module cover
(Figure 4-63),
and
roll
connector assembly onto top of power supply.
*
#2
POZIDRIV SCREW
GROUND
CABLE

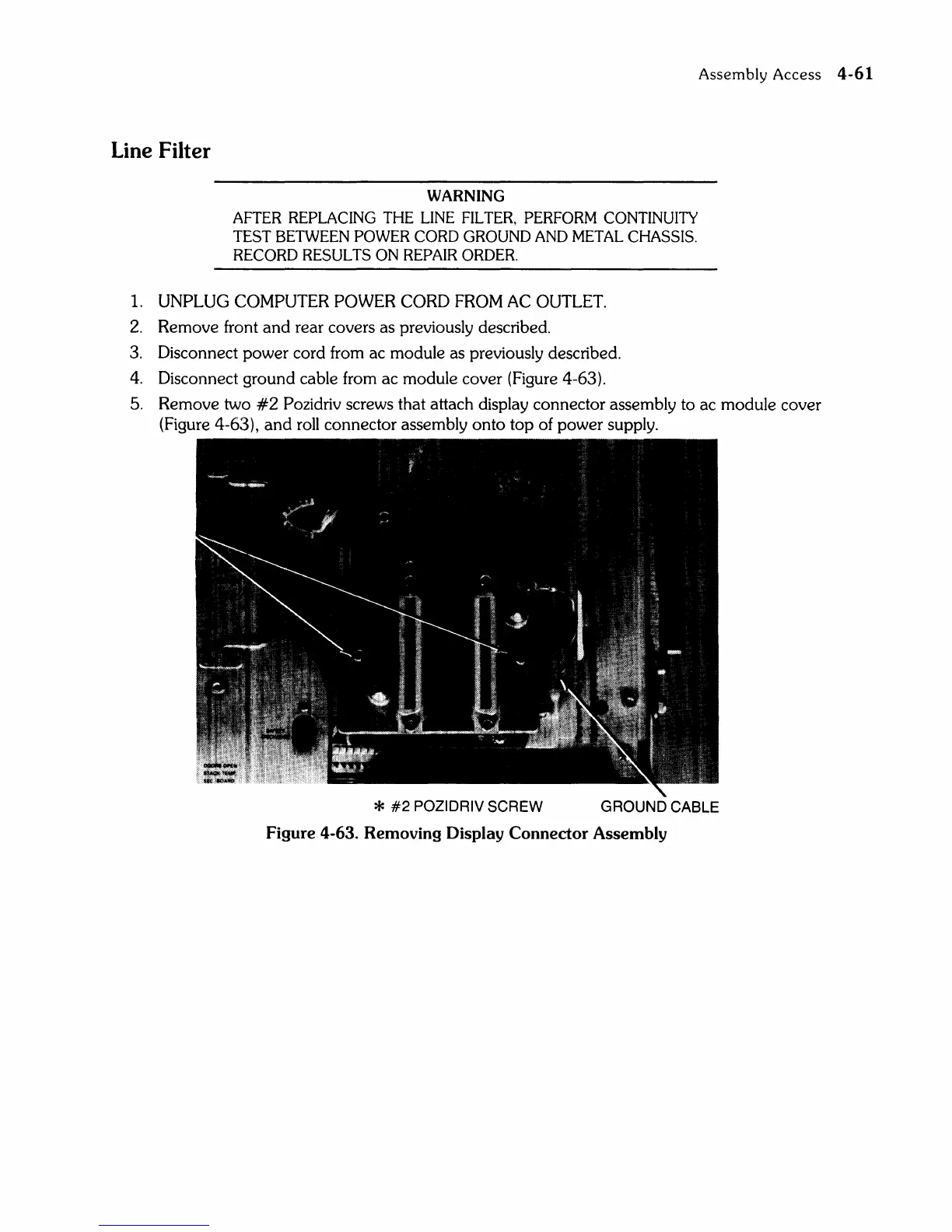

Figure 4-63. Removing Display Connector Assembly
