HP 9020 - Processor Stack Parts List

Replaceable Parts 5-13
Table

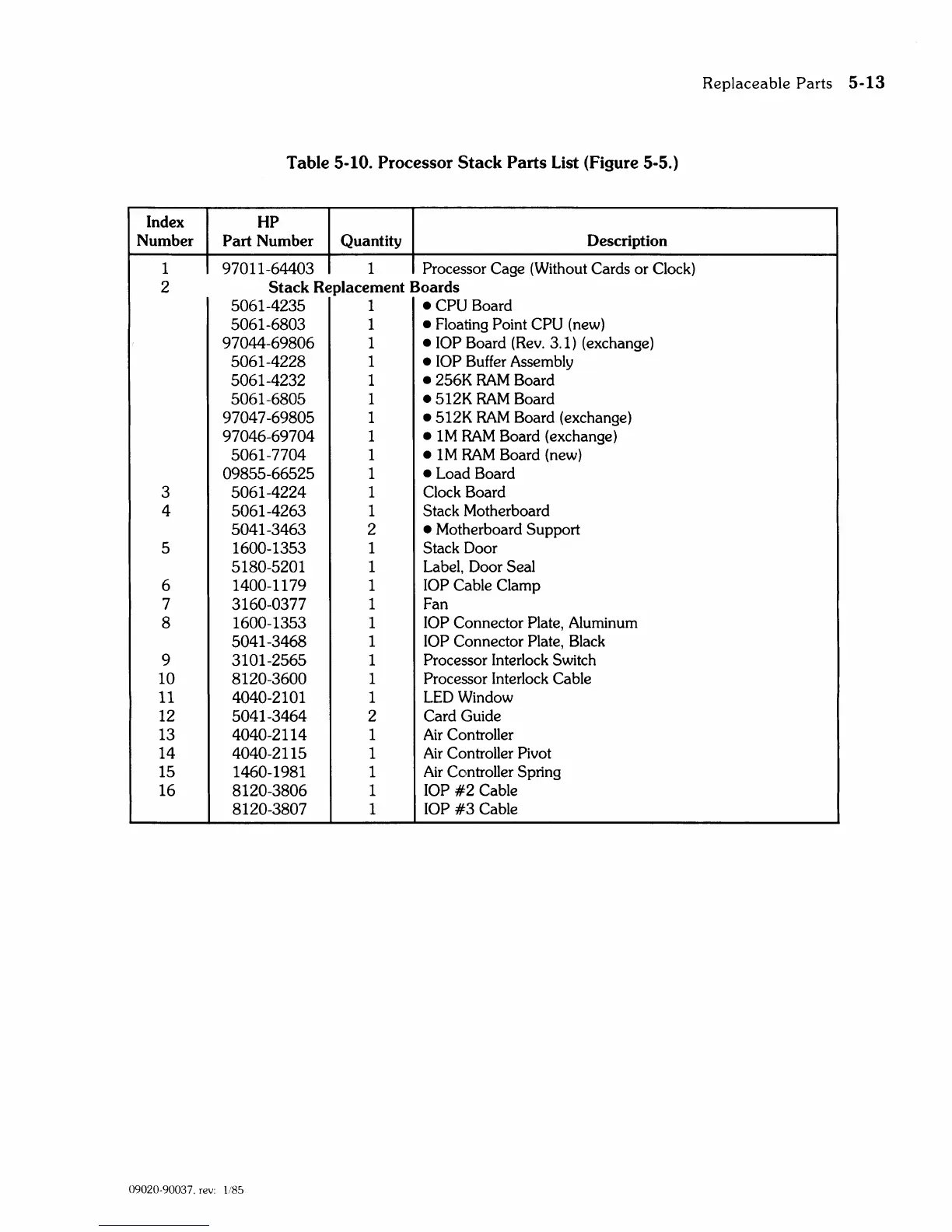

5-10. Processor Stack Parts List (Figure 5-5.)
Index
HP
Number Part Number
Quantity Description
1 97011-64403
1 Processor Cage (Without Cards or Clock)
2
Stack Replacement Boards
5061-4235 1
• CPU Board
5061-6803 1
• Floating Point CPU (new)
97044-69806 1
• lOP Board (Rev. 3.1) (exchange)
5061-4228
1
• lOP Buffer Assembly
5061-4232 1
• 256K RAM Board
5061-6805 1
• 512K RAM Board
97047-69805 1
• 512K RAM Board (exchange)
97046-69704
1
• 1M RAM Board (exchange)
5061-7704
1
• 1M RAM Board (new)
09855-66525 1
• Load Board
3
5061-4224
1 Clock Board
4
5061-4263 1
Stack Motherboard
5041-3463 2
• Motherboard Support
5
1600-1353 1
Stack Door
5180-5201
1
Label, Door Seal
6
1400-1179 1
lOP Cable Clamp
7
3160-0377
1 Fan
8
1600-1353 1
lOP Connector Plate, Aluminum
5041-3468 1
lOP Connector Plate, Black
9
3101-2565
1
Processor Interlock Switch
10
8120-3600
1 Processor Interlock Cable
11
4040-2101
1 LED Window
12
5041-3464 2
Card Guide
13
4040-2114
1 Air Controller
14 4040-2115 1
Air Controller Pivot
15 1460-1981 1
Air Controller Spring
16
8120-3806
1 lOP #2 Cable
8120-3807 1
lOP #3 Cable
09020-90037, rev: 1/85
