4-66
Assembly
Access
Power Supply Fan
1.
UNPLUG COMPUTER POWER CORD FROM AC OUTLET.
2.
Remove
power
supply from computer as previously described.
3. Disconnect
power
cable plug from power supply fan (Figure 4-69).

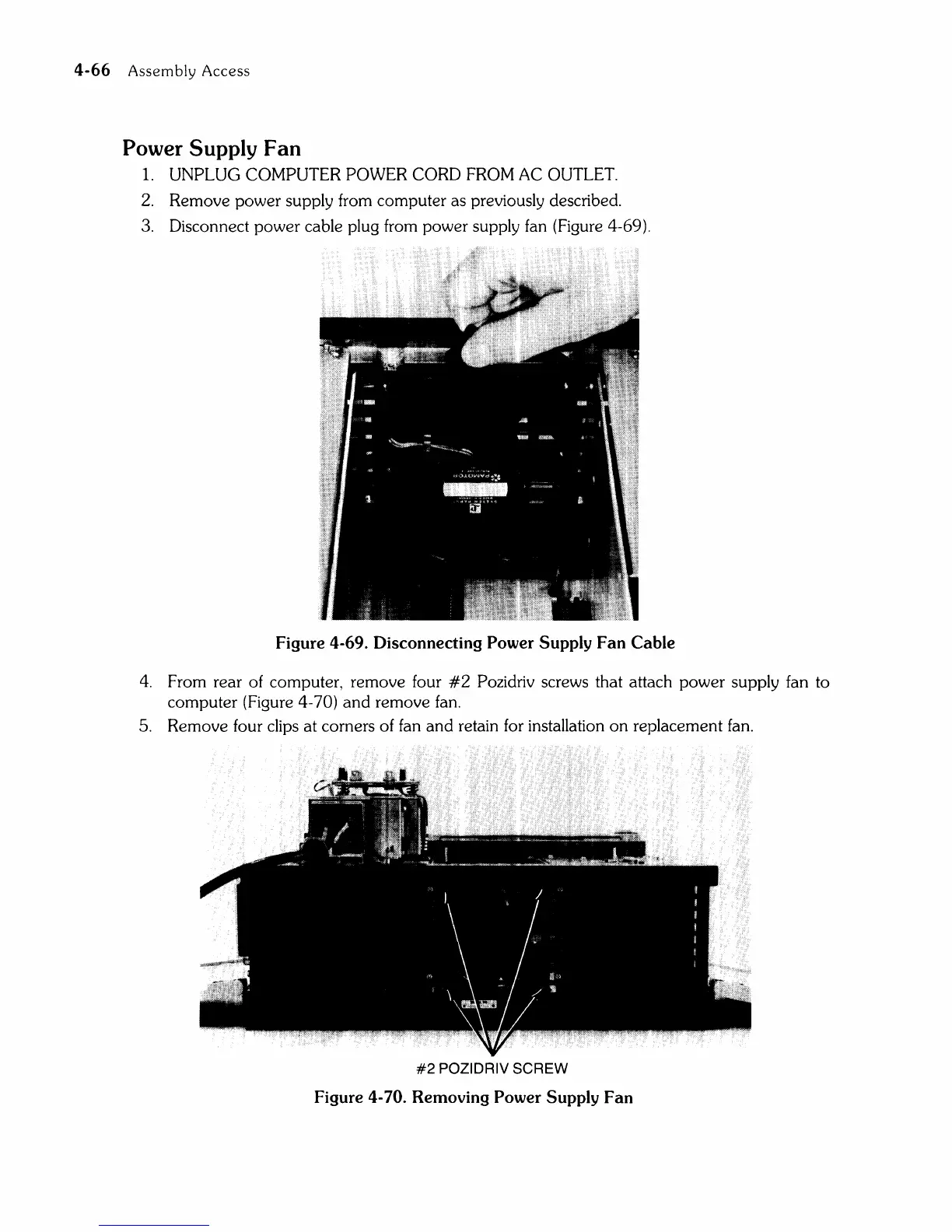

Figure 4-69. Disconnecting Power Supply Fan Cable
4. From rear of computer, remove four
#2
Pozidriv screws that attach power supply fan to
computer (Figure 4-70)
and
remove fan.
5. Remove four clips at corners of fan
and
retain for installation
on
replacement fan.
#2
POZIDRIV SCREW
Figure 4-70. Removing Power Supply Fan
