Replaceable Parts 5-17

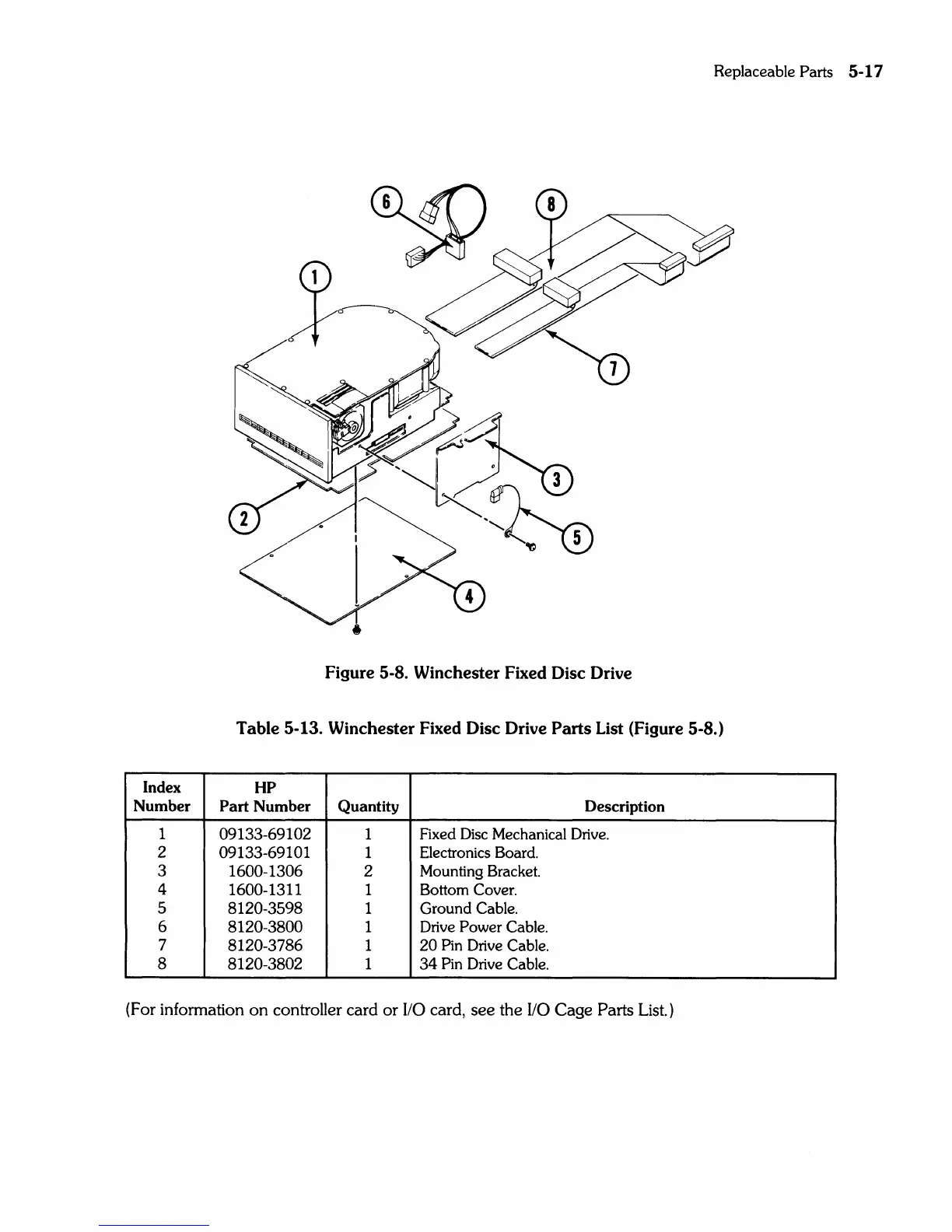

Figure 5-8. Winchester Fixed Disc Drive
Table 5-13. Winchester Fixed Disc Drive
Parts List (Figure 5-8.)
Index
HP
Number
Part Number Quantity
Description
1
09133-69102 1 Fixed
Disc
Mechanical
Drive.
2
09133-69101 1
Electronics Board.
3
1600-1306 2 Mounting Bracket.
4
1600-1311 1
Bottom Cover.
5
8120-3598 1
Ground Cable.
6
8120-3800 1 Drive Power Cable.
7
8120-3786 1 20 Pin Drive Cable.
8
8120-3802 1
34
Pin Drive Cable.
(For information
on
controller card or liD card, see the liD Cage Parts List.)
