4-50 Assembly Access
8. Remove bezel from drive (Figure 4-52) and retain for installation on replacement drive.
9. Remove power cable from drive board (Figure 4-52) and retain for installation on replace-
ment drive.
POWER CABLE
BEZEL

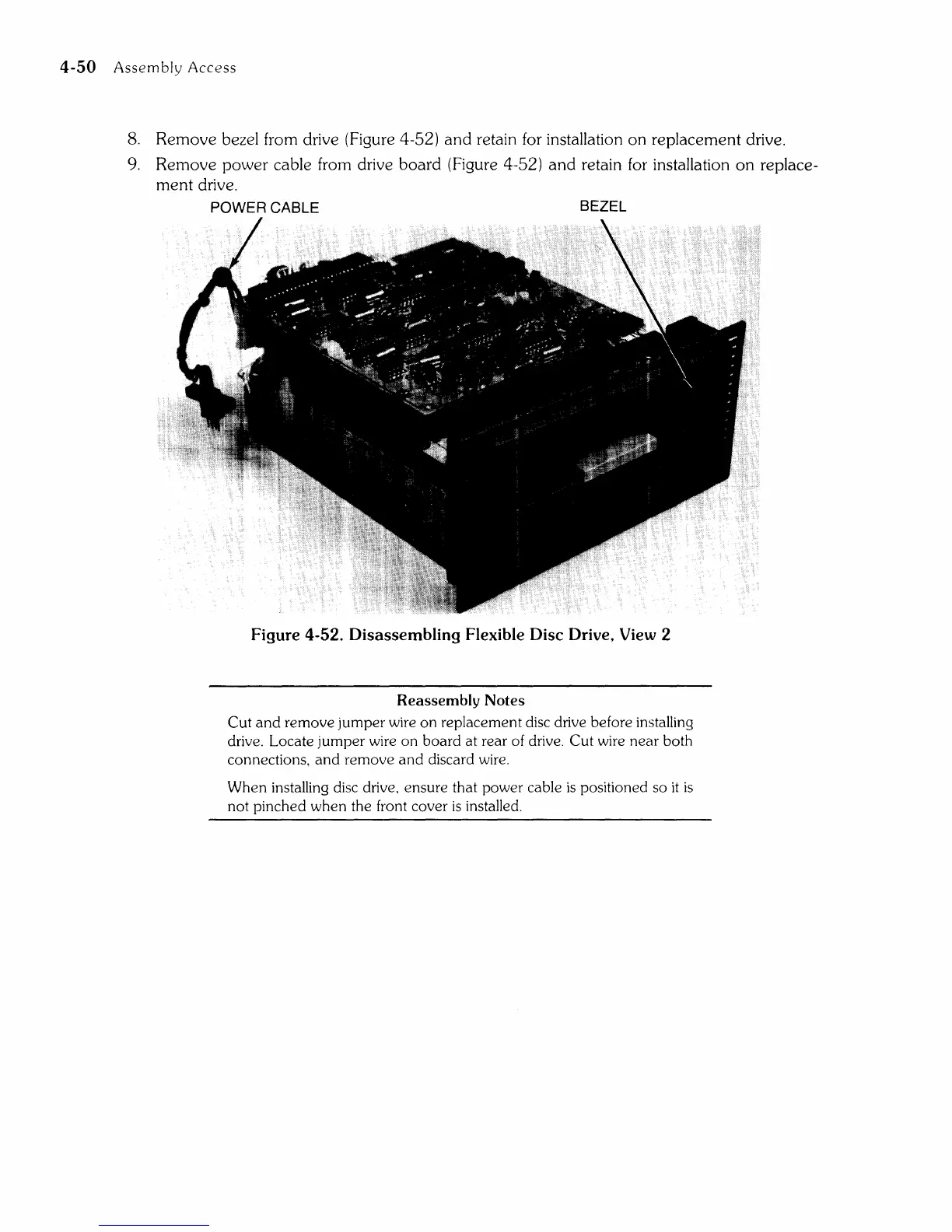

Figure 4-52. Disassembling Flexible Disc Drive, View 2
Reassembly Notes
Cut and remove jumper wire on replacement disc drive before installing
drive. Locate
jumper wire on board at rear of drive. Cut wire near both
connections,
and remove and discard wire.
When installing disc drive, ensure that power cable is positioned so it is
not pinched when the front cover is installed.
