Assembly Access
4-55
CAUTION
DO
NOT
USE
DISCHARGE
TOOL
FOR
MORE
THAN
TWO
DIS-
CHARGES
IMMEDIATELY
FOLLOWING
ONE
ANOTHER.
5.
Push discharge tool switch down
and
hold down to discharge capacitors (Figure 4-57).
Discharging takes a
few
seconds. Meter movement can
be
observed as switch
is
held down
until capacitors are completely discharged.
6.
Carefully remove discharge tool by pulling straight out of power supply.
WARNING
IF
DISCHARGE TOOL
IS
NOT
AVAILABLE,
ALLOW
15
MINUTES
FOR THE POWER SUPPLY
TO
DISCHARGE BEFORE CON-
TINUING.
PUSH SWITCH DOWN
TO DISCHARGE
POWER SUPPLY

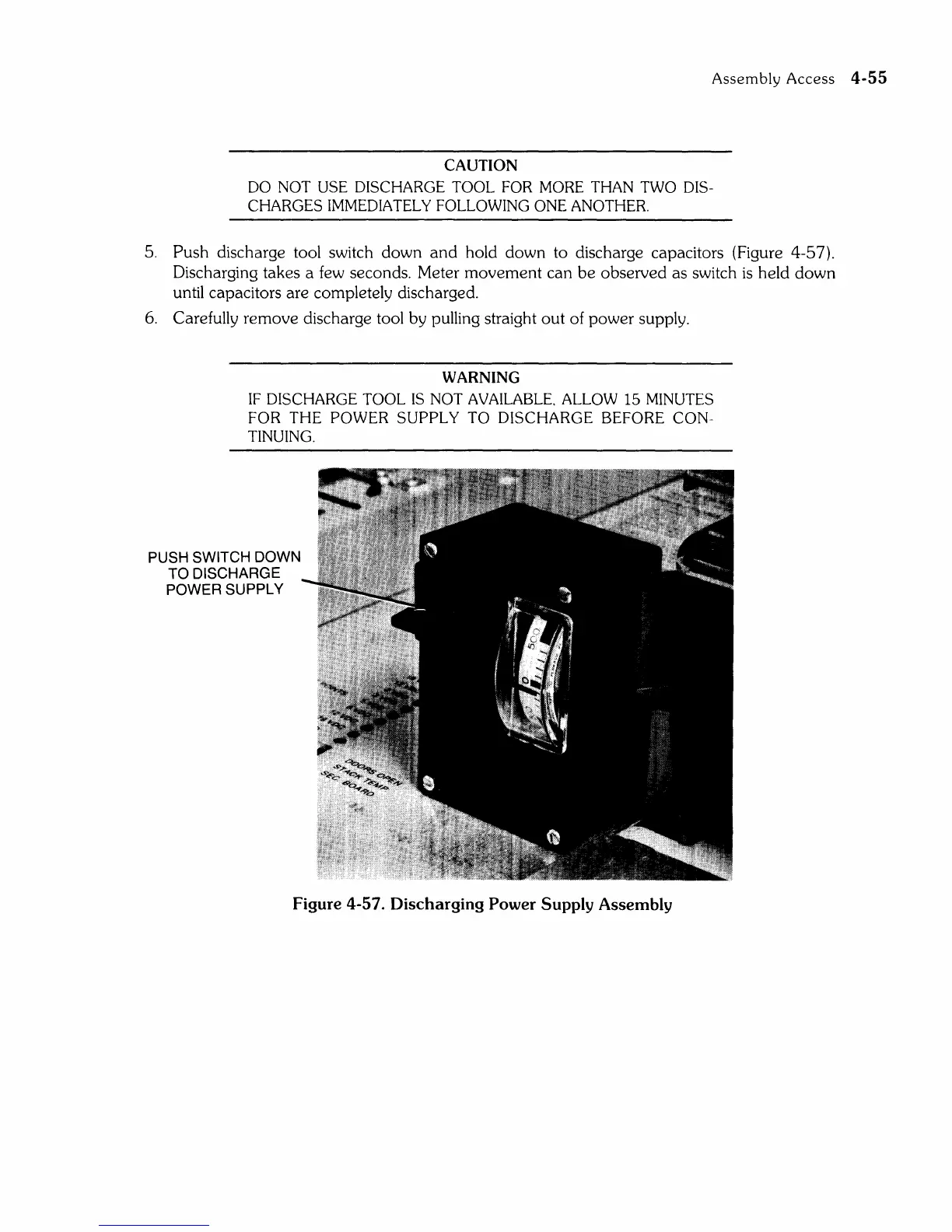

Figure 4-57. Discharging Power Supply Assembly
