Assembly
Access 4-71
5.
Remove nine
#2
Pozidriv screws that attach
110
backplane to power supply bucket (Figure
4-75).
6.
Lift
110
backplane straight
up
and
away from motherboard.
*
*
*
#2
POZIDRIV SCREW

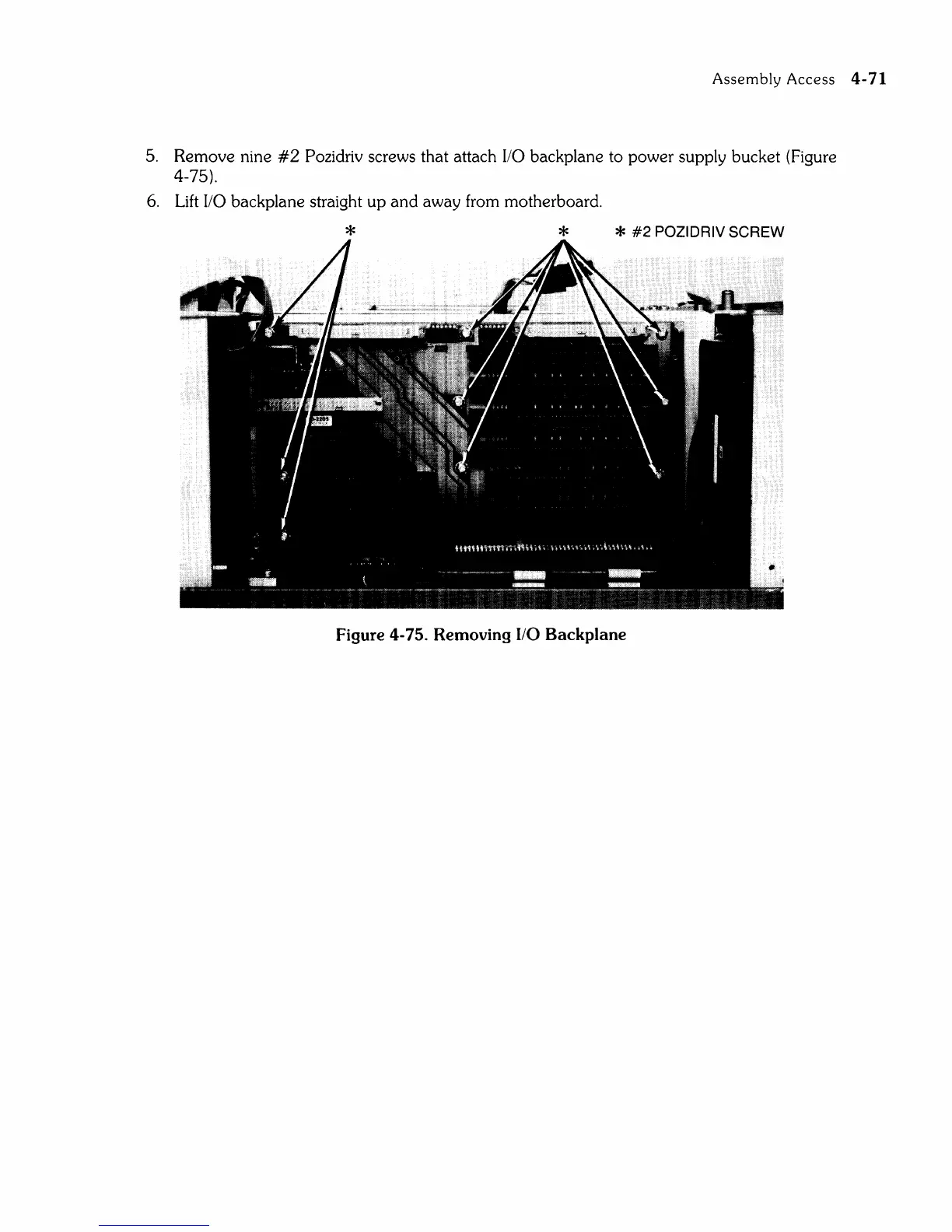

Figure 4-75. Removing
110
Backplane
