Assembly Access
4-91
Fan
1.
Remove sweep board.
2.
Remove rear cover.
3.
Disconnect fan cable connector from display motherboard.
4.
Remove both fan clips (Figure 4-96). To release
clip,
press
in
on top and bottom of
clip
from
outside while pressing down on top tab from inside.
5.
Remove fan and attached cable.
FAN
CLIPS

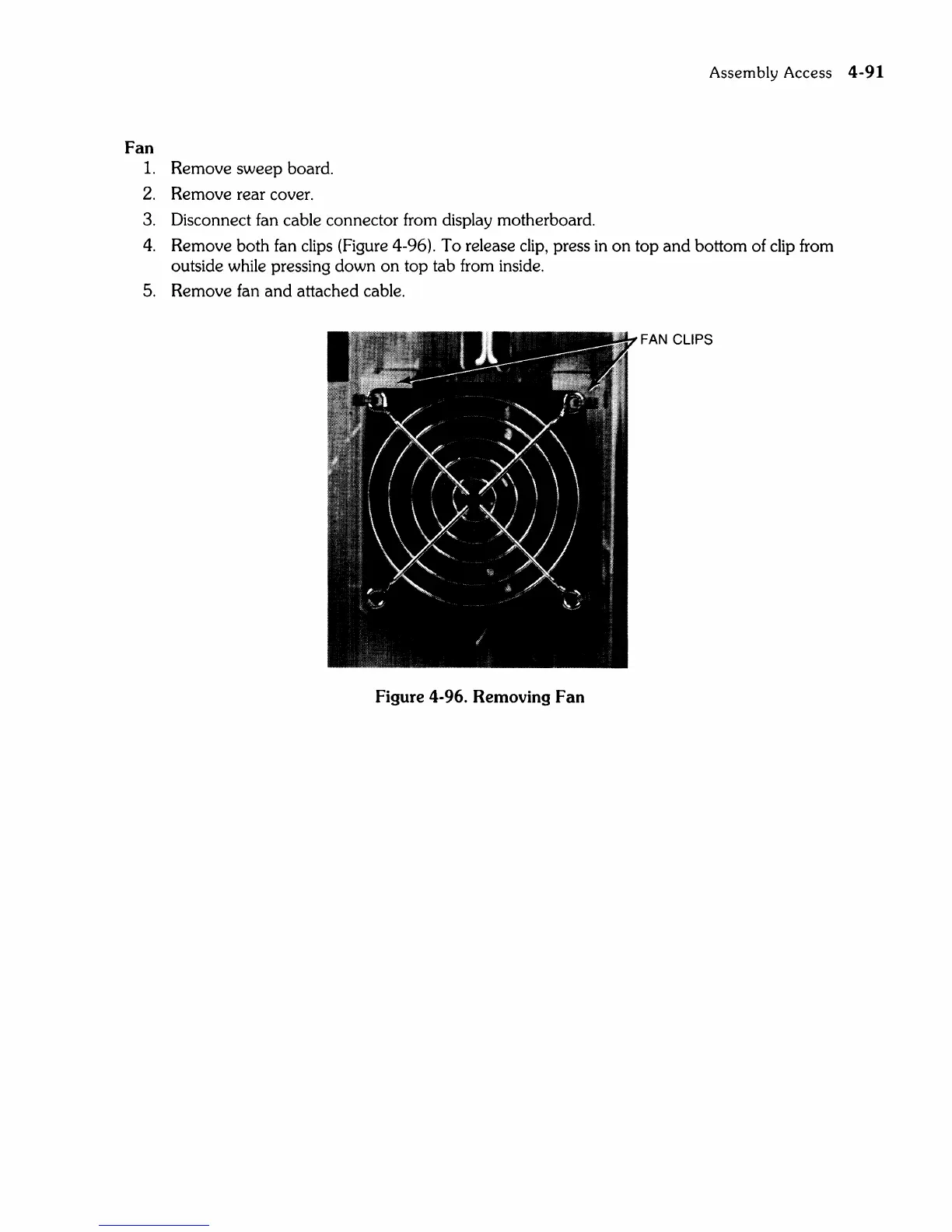

Figure 4-96. Removing Fan
