5-20 Replaceable Parts

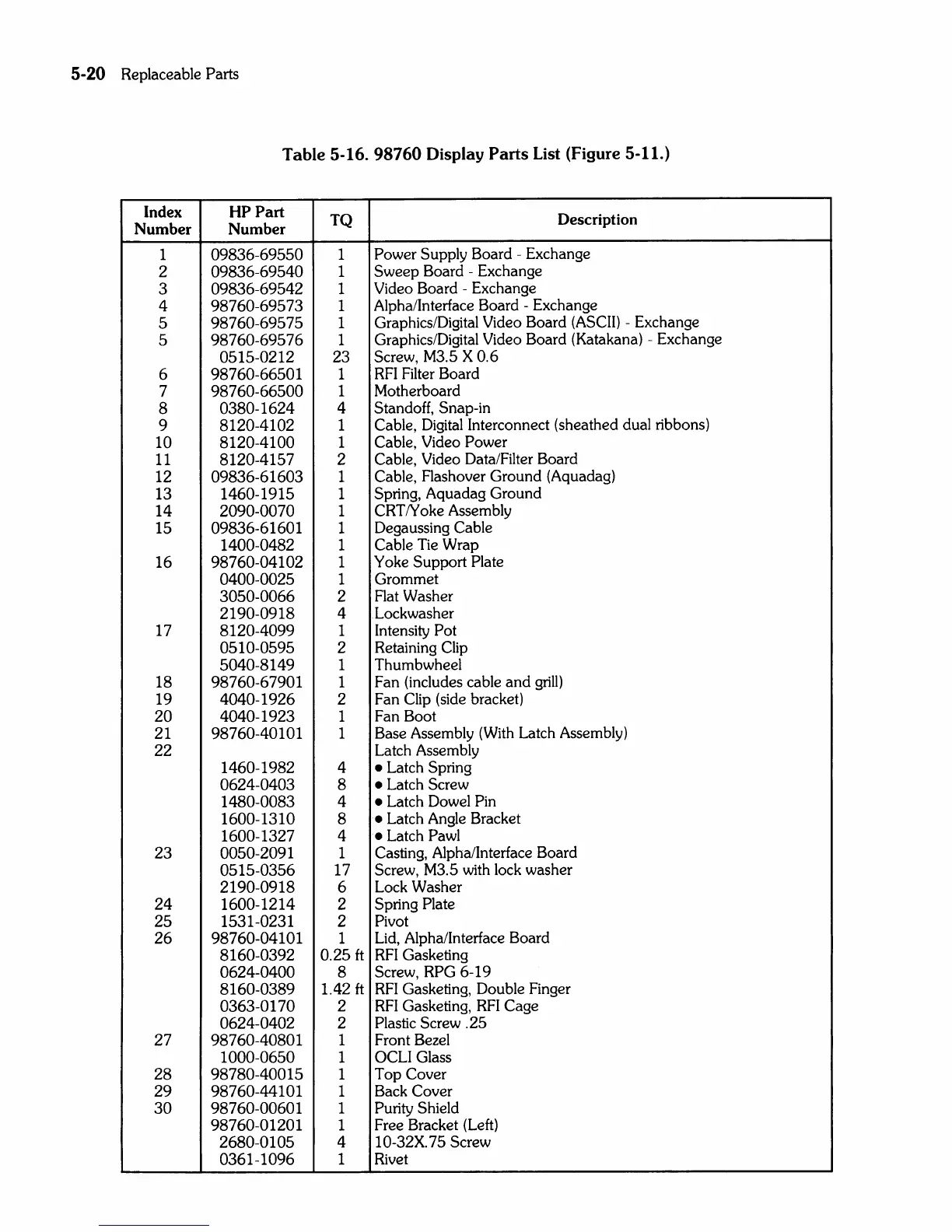

Table 5-16. 98760 Display Parts List (Figure 5-11.)
Index
HP
Part
TQ
Description
Number
Number
1 09836-69550
1
Power Supply Board - Exchange
2
09836-69540
1
Sweep Board - Exchange
3
09836-69542 1
Video Board - Exchange
4
98760-69573
1
Alpha/Interface Board - Exchange
5
98760-69575
1
Graphics/Digital Video Board
(ASCII)
- Exchange
5
98760-69576
1
Graphics/Digital Video Board (Katakana) - Exchange
0515-0212
23
Screw, M3.5 X
0.6
6 98760-66501
1
RFI
Filter Board
7
98760-66500
1
Motherboard
8
0380-1624
4
Standoff, Snap-in
9
8120-4102
1
Cable,
Digital
Interconnect (sheathed dual ribbons)
10 8120-4100
1
Cable, Video
Power
11
8120-4157 2
Cable, Video Data/Filter Board
12
09836-61603
1
Cable, Flashover Ground (Aquadag)
13
1460-1915
1
Spring, Aquadag Ground
14
2090-0070 1
CRT
N oke Assembly
15
09836-61601 1
Degaussing Cable
1400-0482 1
Cable Tie Wrap
16
98760-04102 1
Yoke Support Plate
0400-0025
1
Grommet
3050-0066 2
Flat Washer
2190-0918
4 Lockwasher
17
8120-4099 1
IntenSity
Pot
0510-0595
2
Retaining Clip
5040-8149
1
Thumbwheel
18
98760-67901 1
Fan (includes cable and
grill)
19 4040-1926 2
Fan Clip (side bracket)
20
4040-1923 1
Fan Boot
21
98760-40101 1
Base Assembly
(With
Latch Assembly)
22
Latch Assembly
1460-1982
4
• Latch Spring
0624-0403
8
• Latch Screw
1480-0083
4
• Latch Dowel Pin
1600-1310
8
• Latch Angle Bracket
1600-1327
4
• Latch Pawl
23 0050-2091
1
Casting, Alpha/Interface Board
0515-0356
17
Screw, M3.5
with
lock washer
2190-0918 6
Lock Washer
24
1600-1214 2
Spring
Plate
25
1531-0231 2
Pivot
26
98760-04101 1
Lid,
Alpha/Interface Board
8160-0392
0.25
ft
RFI
Gasketing
0624-0400 8
Screw,
RPG 6-19
8160-0389
1.42
ft
RFI
Gasketing, Double Finger
0363-0170 2
RFI
Gasketing,
RFI
Cage
0624-0402 2
Plastic Screw .25
27
98760-40801 1
Front Bezel
1000-0650 1
GCLI Glass
28
98780-40015 1
Top Cover
29
98760-44101 1
Back Cover
30
98760-00601
1
Purity Shield
98760-01201 1
Free Bracket
(Left)
2680-0105
4 1 0-32X. 75 Screw
0361-1096
1
Rivet
To Next Page
