HP PROCURVE 2910AL User Manual

Configuring Port-Based and User-Based Access Control (802.1X)
Displaying 802.1X Configuration, Statistics, and Counters

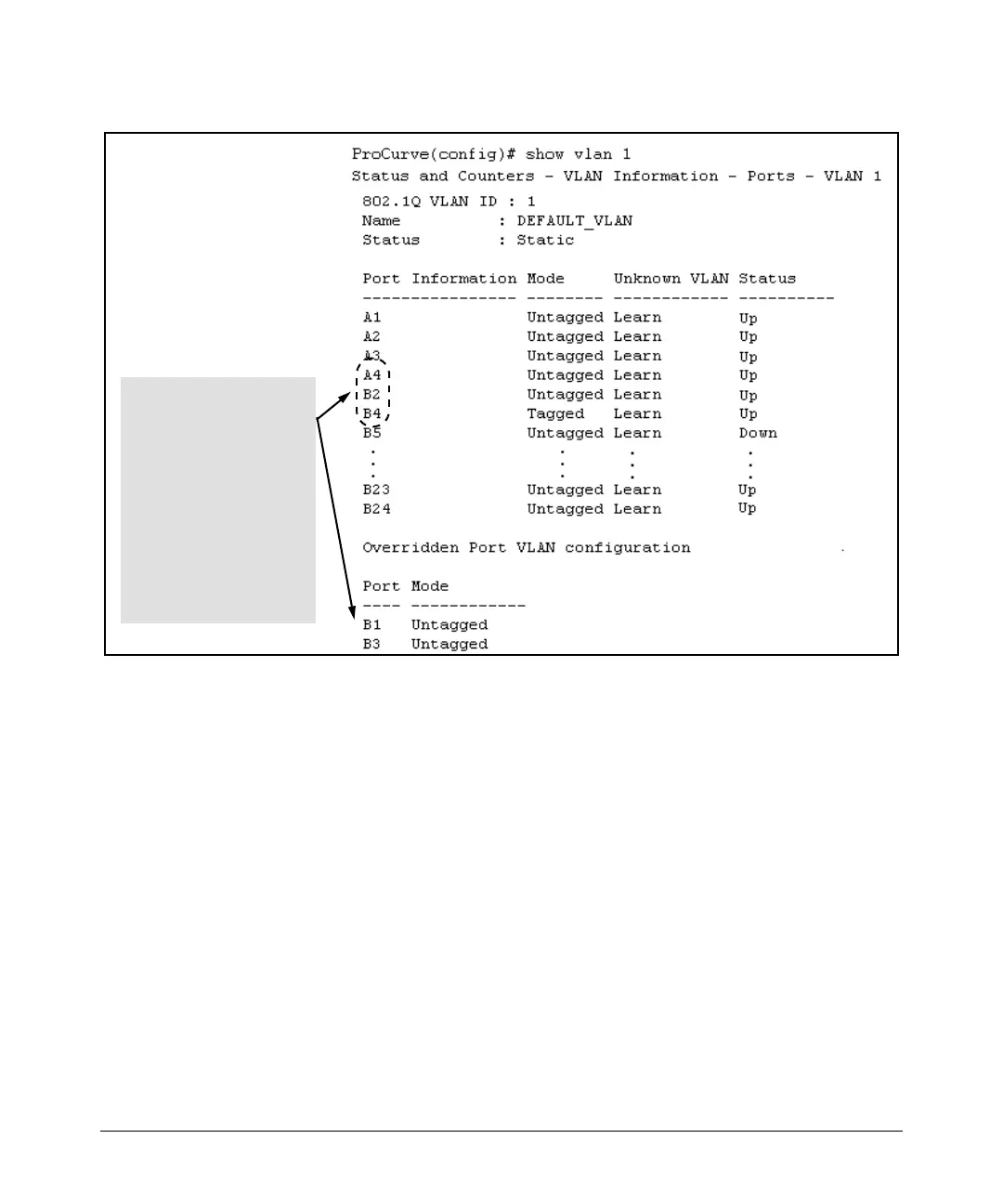

Note that ports B1 and B3 are
not in the upper listing, but are
included under “Overridden
Port VLAN configuration”. This
shows that static, untagged
VLAN memberships on ports B1
and B3 have been overridden
by temporary assignment to the
authorized or unauthorized
VLAN. Using the show port-
access authenticator < port-
list > command shown in figure
12-17 provides details.
Figure 12-18. Example of Showing a VLAN with Ports Configured for Open VLAN Mode
12-65

HP PROCURVE 2910AL Specifications

General

Model	HP ProCurve 2910al
Switching Capacity	128 Gbps
Throughput	95.2 Mpps
Management	Web, CLI, SNMP
Jumbo Frame Support	Yes
Manageable	Yes
Power	100-240 VAC
Power Supply	Internal
Operating Temperature	0°C to 45°C (32°F to 113°F)
Stacking	Yes
MAC Address Table Size	32000 entries
Routing Protocol	RIP, OSPF
Features	IPv6, VLAN, QoS, ACLs
Operating Humidity	15% to 95% non-condensing
Uplink Ports	4
Power over Ethernet	Yes (PoE+ models available)
