Configuring Port-Based and User-Based Access Control (802.1X)

Displaying 802.1X Configuration, Statistics, and Counters

Viewing 802.1X Open VLAN Mode Status

You can examine the switch’s current VLAN status by using the show port-

access authenticator vlan and show port-access authenticator < port-list > com-

mands as illustrated in figure 12-17. Table 12-1 describes the data that these

two commands display. Figure 12-18 shows related VLAN data that can help

you to see how the switch is using statically configured VLANs to support

802.1X operation.

In these two show outputs, an Unauth VLAN ID

appearing in the Current VLAN ID column for the

same port indicates an unauthenticated client is

connected to this port. (Assumes that the port is

not a statically configured member of VLAN 100.)

Items 1 through 3 indicate that an authenticated client is connected to port 2:

1.Open in the Status column

2.Authorized in the Authenticator State column

3.The Auth VLAN ID (101) is also in the Current VLAN ID column. (This assumes that the port is not a statically configured

member of VLAN 101.)

4.A “0” in the row for port 3 indicates there is no Authorized VLAN configured for port 3.

5.No PVID” means there is currently no untagged VLAN membership on port 4.

Note: Series 5400zl switches do not include the

Authenticator State and Authenticator Backend

State fields shown in this figure.

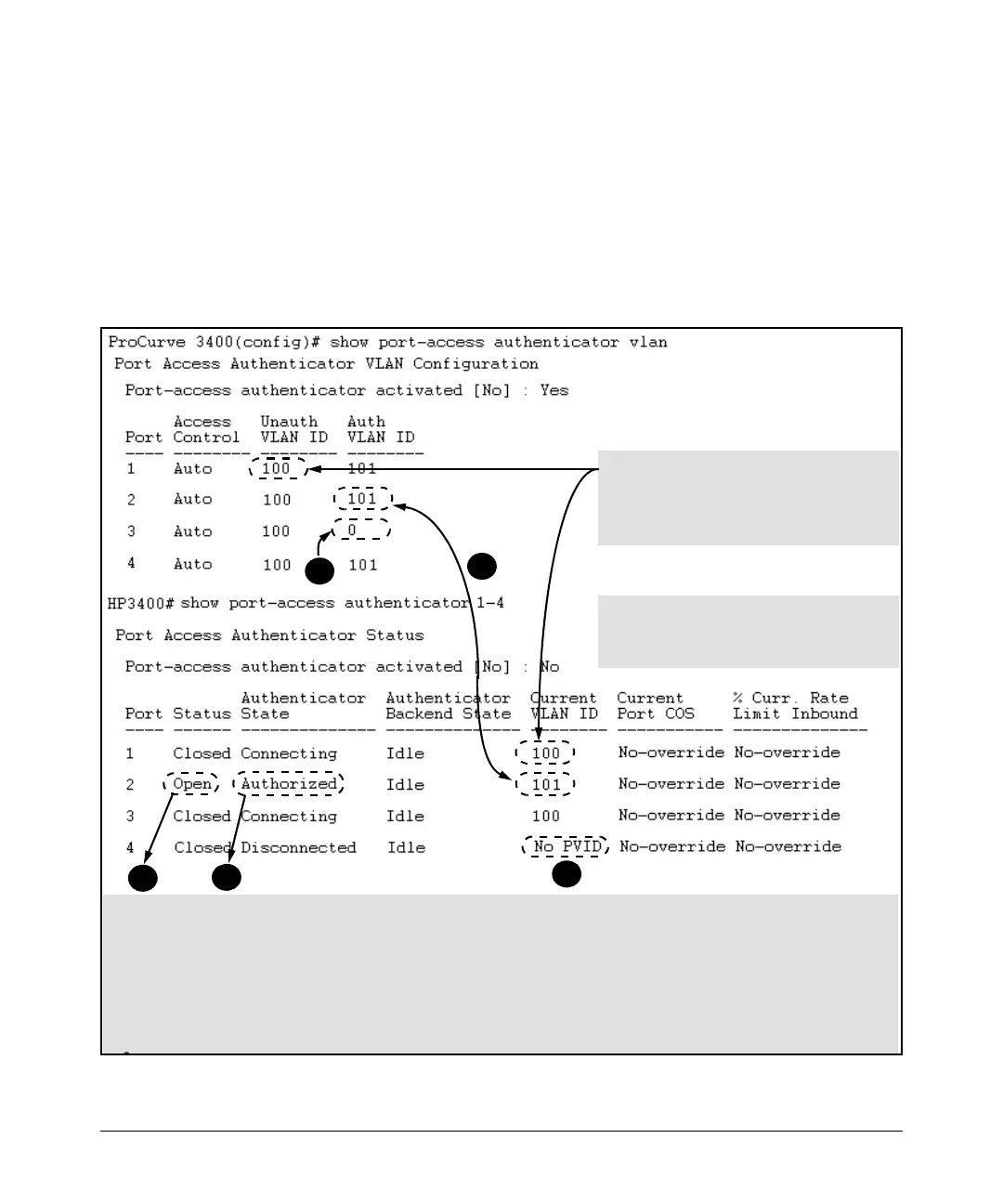

Figure 12-17. Example Showing Ports Configured for Open VLAN Mode
