Installing Hardware Options

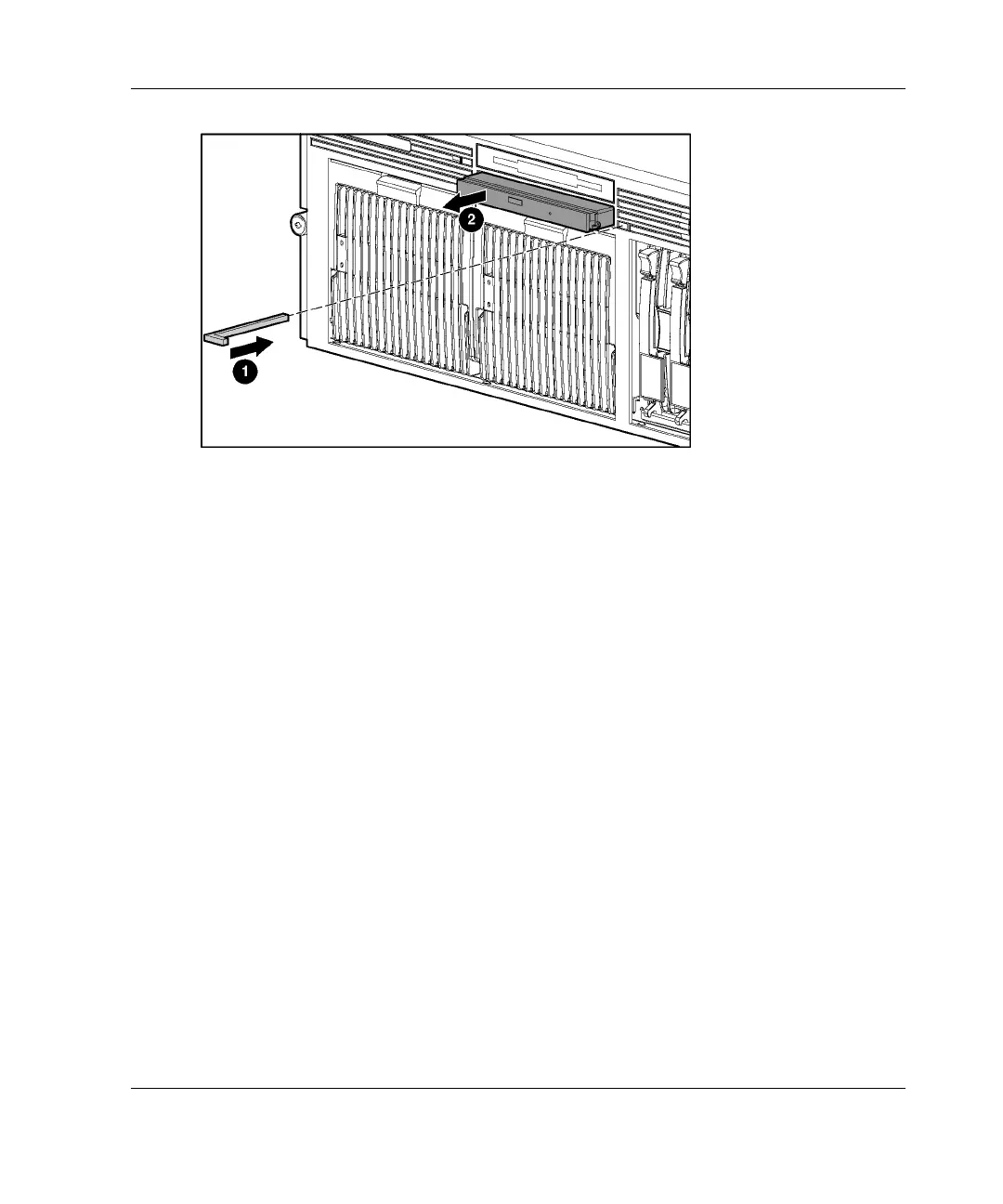

Figure 5-32: Removing a drive from bay 2

Installing a Media Drive

To install a media drive:

1. Power down the server. Refer to “Powering Down the Server” in this chapter.

2. Remove the existing drive. Refer to “Removing a Media Drive” in this chapter.

3. Insert the desired drive into the slimline drive bay until it seats.

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 5-39
