HP Proliant DL580 - Inserting the Rail Tabs on the Rear of the Rack

Installing the Server in a Rack
3. Insert the two rail tabs from the end of the rack rail assembly into the marked
holes on the inside of the rear of the rack.

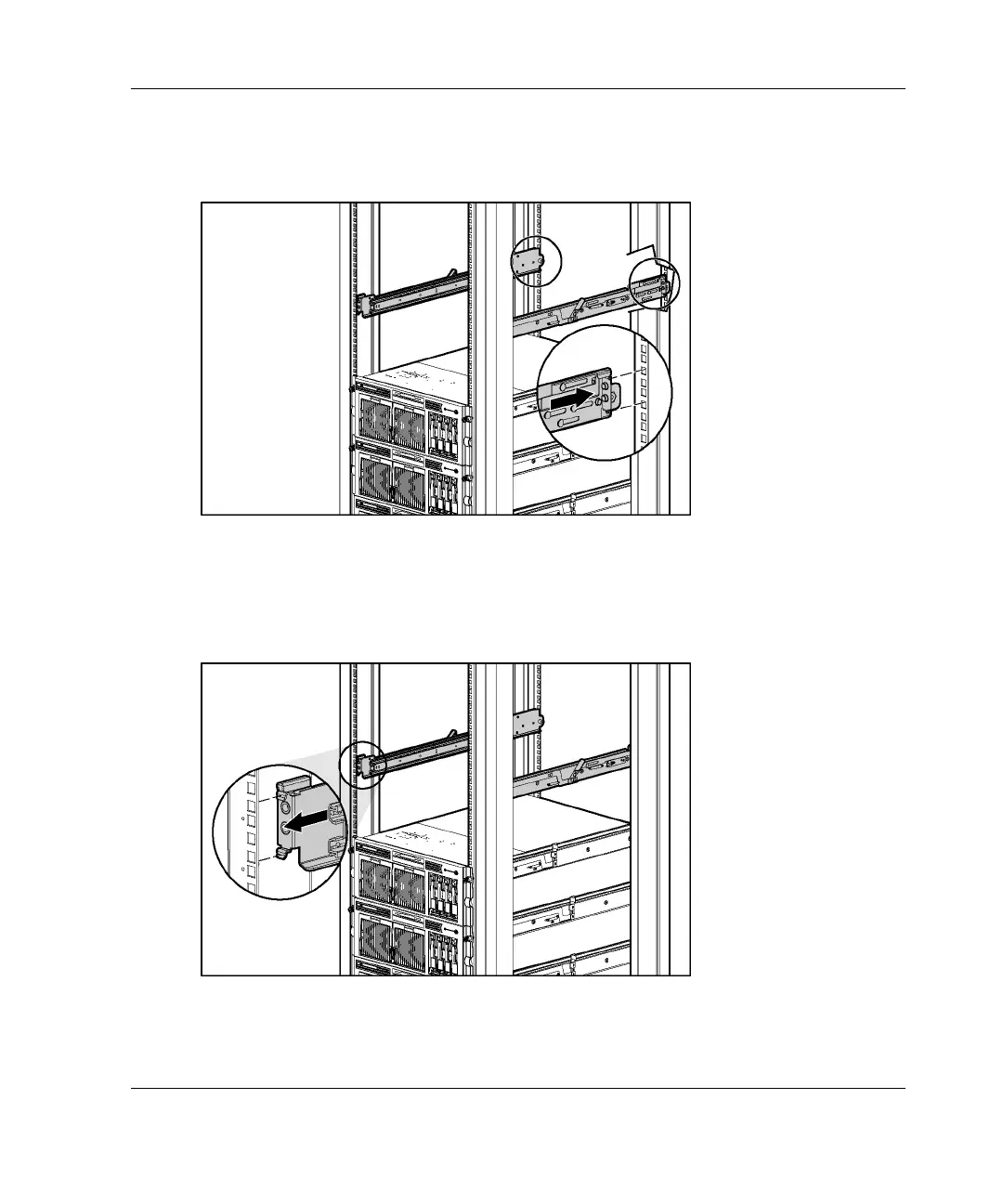

Figure 8-4: Inserting the rail tabs on the rear of the rack
4. Adjust the rack rail depth by sliding it forward.
5. Insert the two rail tabs from the rack rail assembly into the marked holes on the
inside of the front of the rack.
Figure 8-5: Inserting the rail tabs on the front of the rack
HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 8-7
