Installing Hardware Options

3. After performing the installation procedure, reach around the front of the server

to press the rail-release levers at the front of both server rails and continue to

slide the server into the rack.

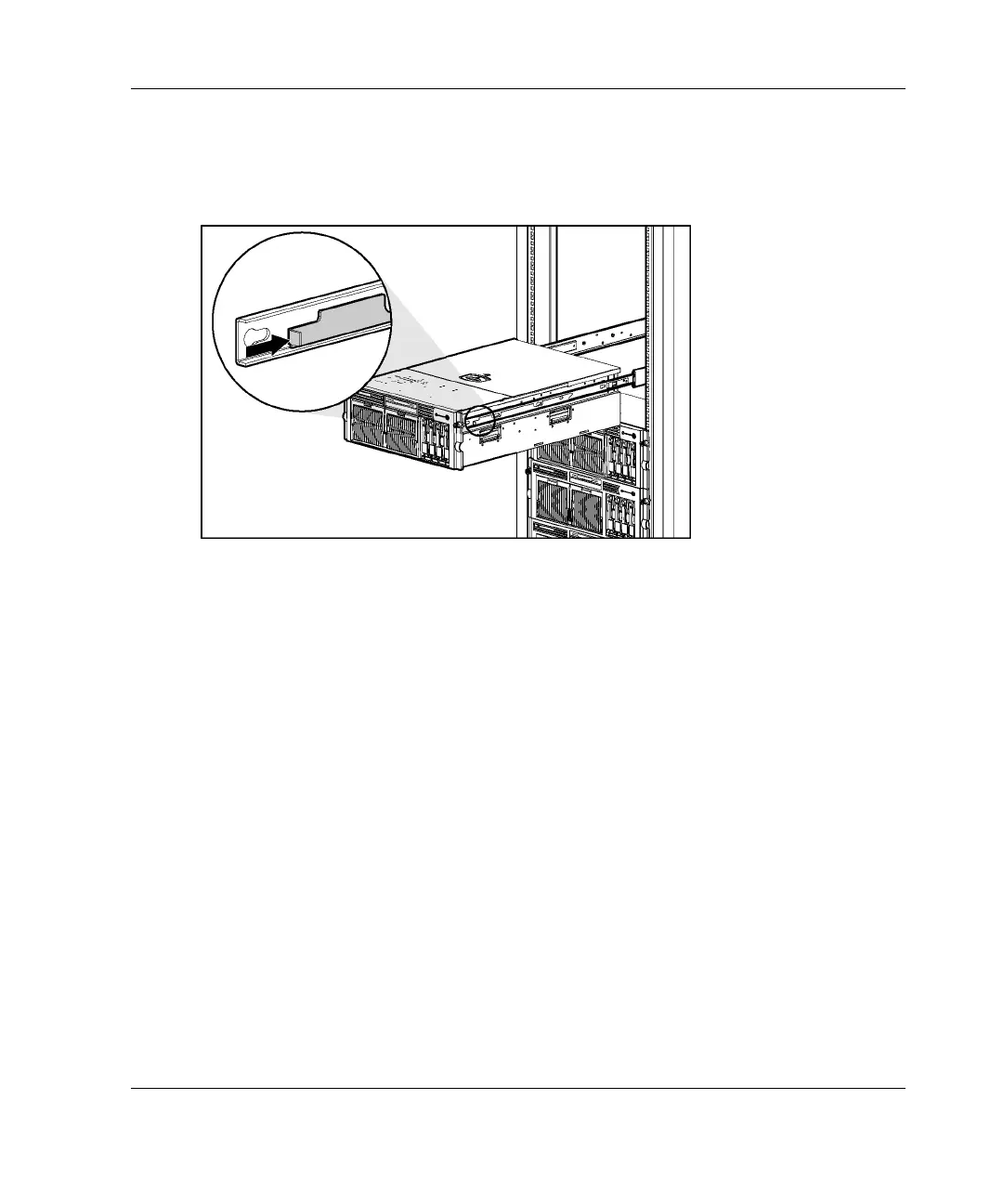

Figure 5-6: Sliding the server into the rack

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 5-11

HP CONFIDENTIAL

Writer: Karen Hale File Name: f-ch5 Installing Hardware Options.doc

Codename: Dwarf Part Number: 230835-003 Last Saved On: 6/26/03 9:31 AM
