Planning the Server Installation

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 4-9

HP CONFIDENTIAL

Writer: Karen Hale File Name: e-ch4 Planning the Server Installation.doc

Codename: Wave Part Number: 230835-003 Last Saved On: 6/26/03 9:28 AM

Removing Shipping Bracket from PCI Basket

To remove the shipping bracket from the PCI Basket, loosen the thumbscrew (1) and remove

and discard the shipping bracket (2).

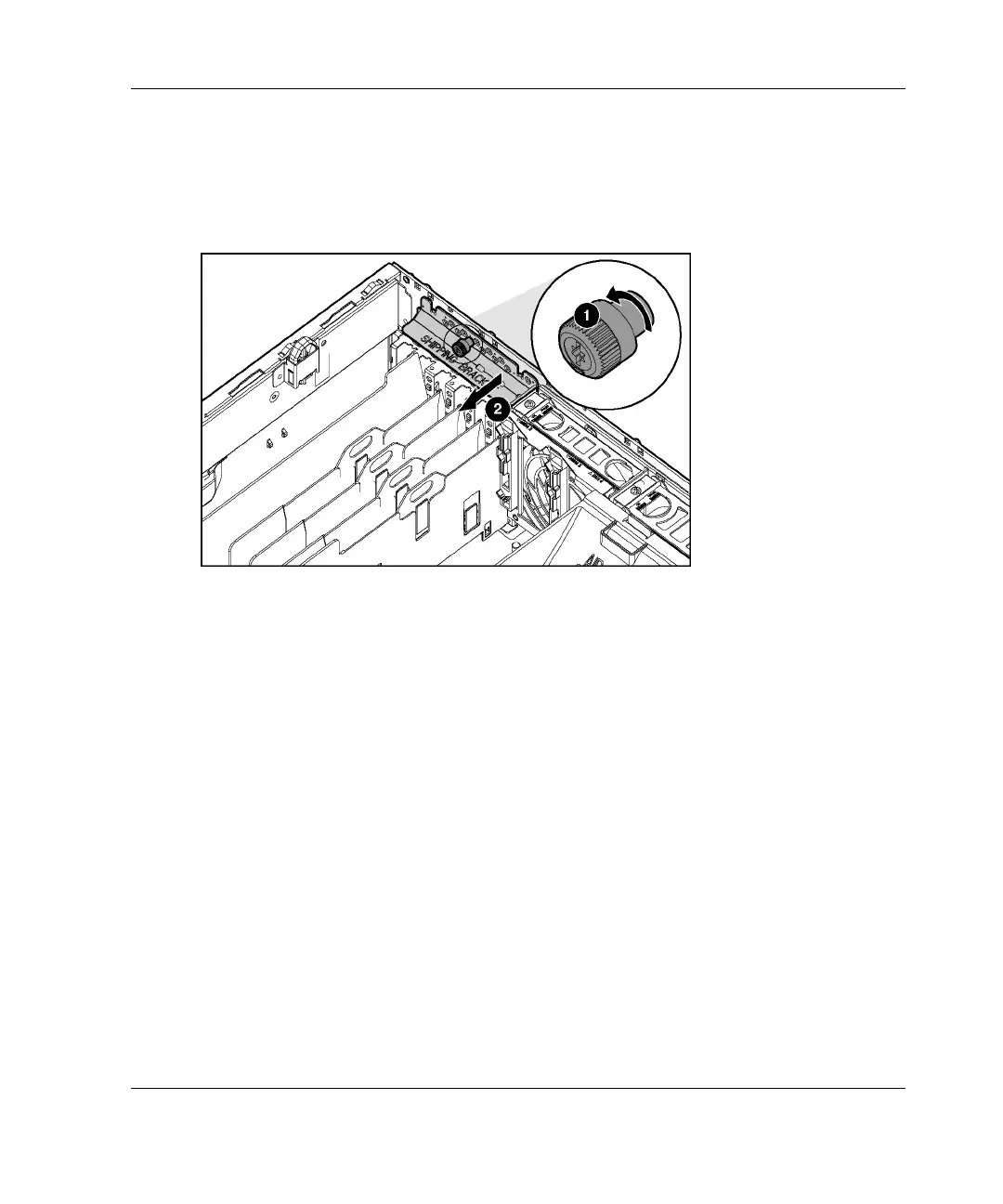

Figure 4-3: Removing the shipping bracket

NOTE: The shipping bracket is used only to secure the PCI Latches during shipment.
