Installing the Server in a Rack

4. Attach the cable management arm to the round-hole rack, and then secure the

thumbscrews (2).

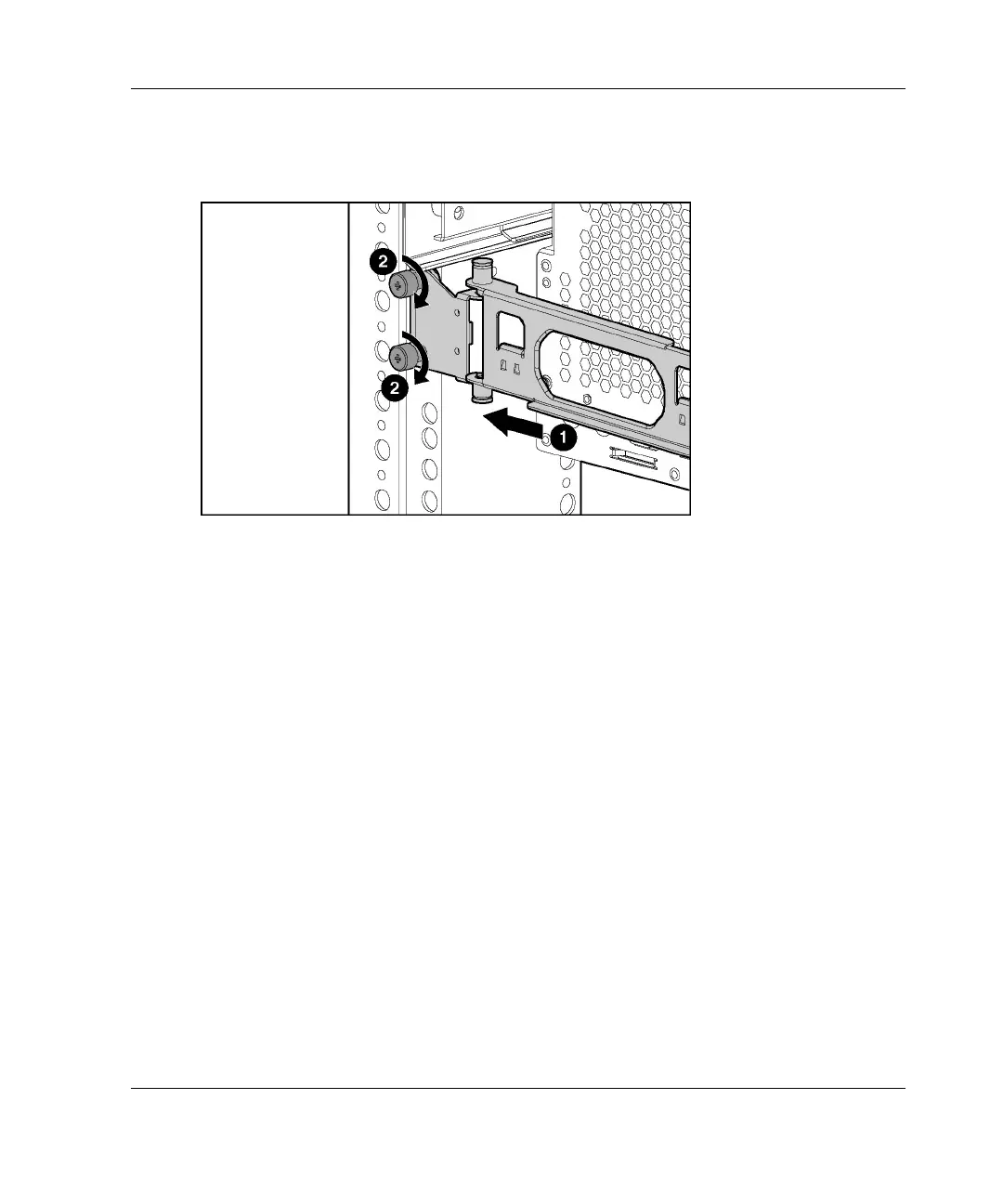

Figure 8-17: Attaching the cable management arm to

the round-hole rack

Attaching the Cable Management Arm to the Server

1. Loosen the thumbscrews on the front of the server to enable the server to slide

forward.

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 8-21

HP CONFIDENTIAL

Writer: Karen Hale File Name: i-ch8 Installing the Server in a Rack.doc

Codename: Wave Part Number: 230835-003 Last Saved On: 6/26/03 9:41 AM
