Installing Hardware Options

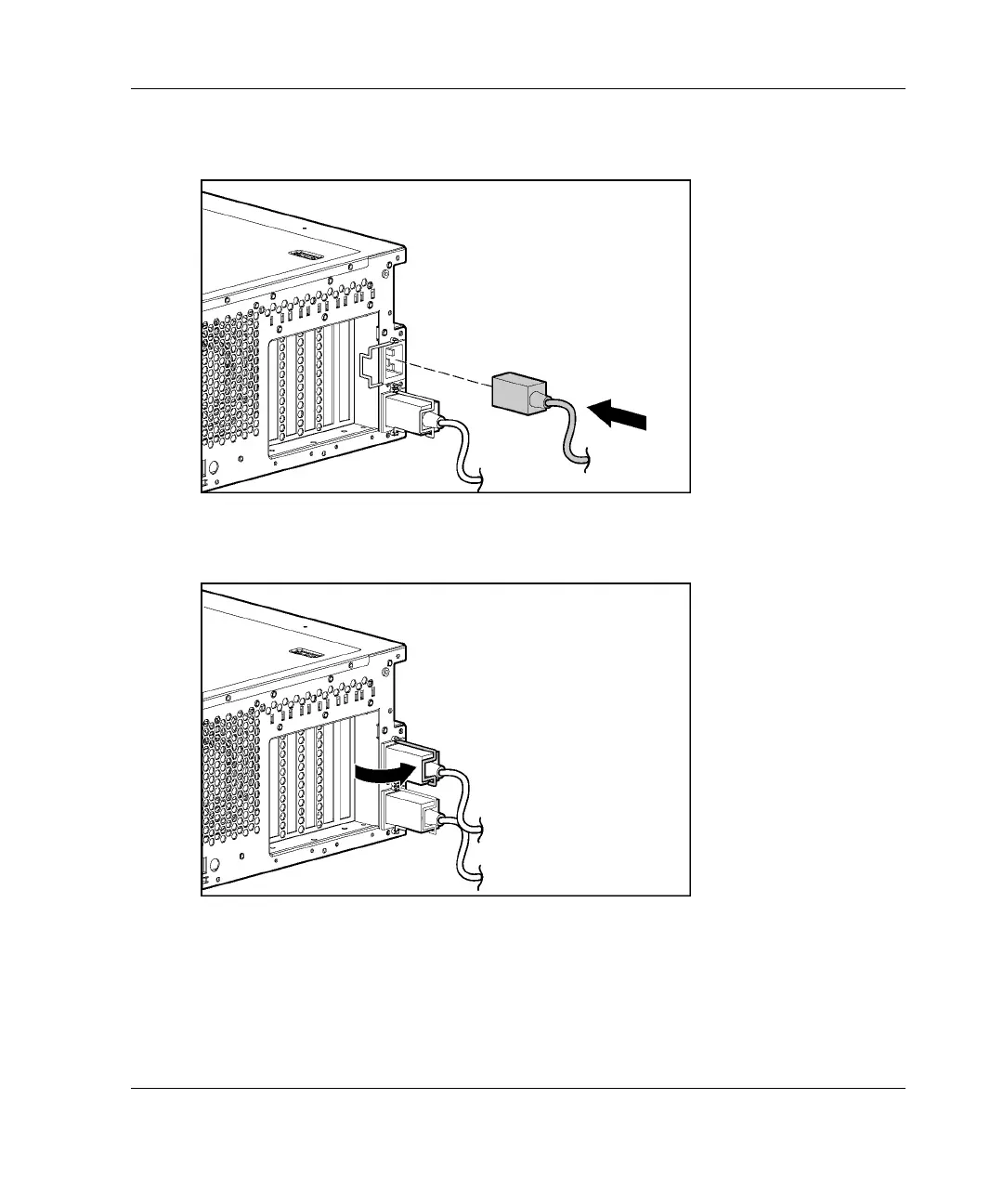

6. Connect the power cord to AC inlet two.

Figure 5-40: Connecting the power cord

7. Secure the power cord with the retaining clip.

Figure 5-41: Securing the power cord with the retaining

clip

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 5-47

HP CONFIDENTIAL

Writer: Karen Hale File Name: f-ch5 Installing Hardware Options.doc

Codename: Dwarf Part Number: 230835-003 Last Saved On: 6/26/03 9:31 AM
