Installing Hardware Options

6. Open the processor retaining bracket:

a. Loosen the thumbscrew (1).

b. Tilt the processor cage up (2).

7. Open the processor locking lever (3).

NOTE: Observe the “open” and “closed” icons on the processor locking lever to be sure

that you are performing the correct operation when opening the locking lever.

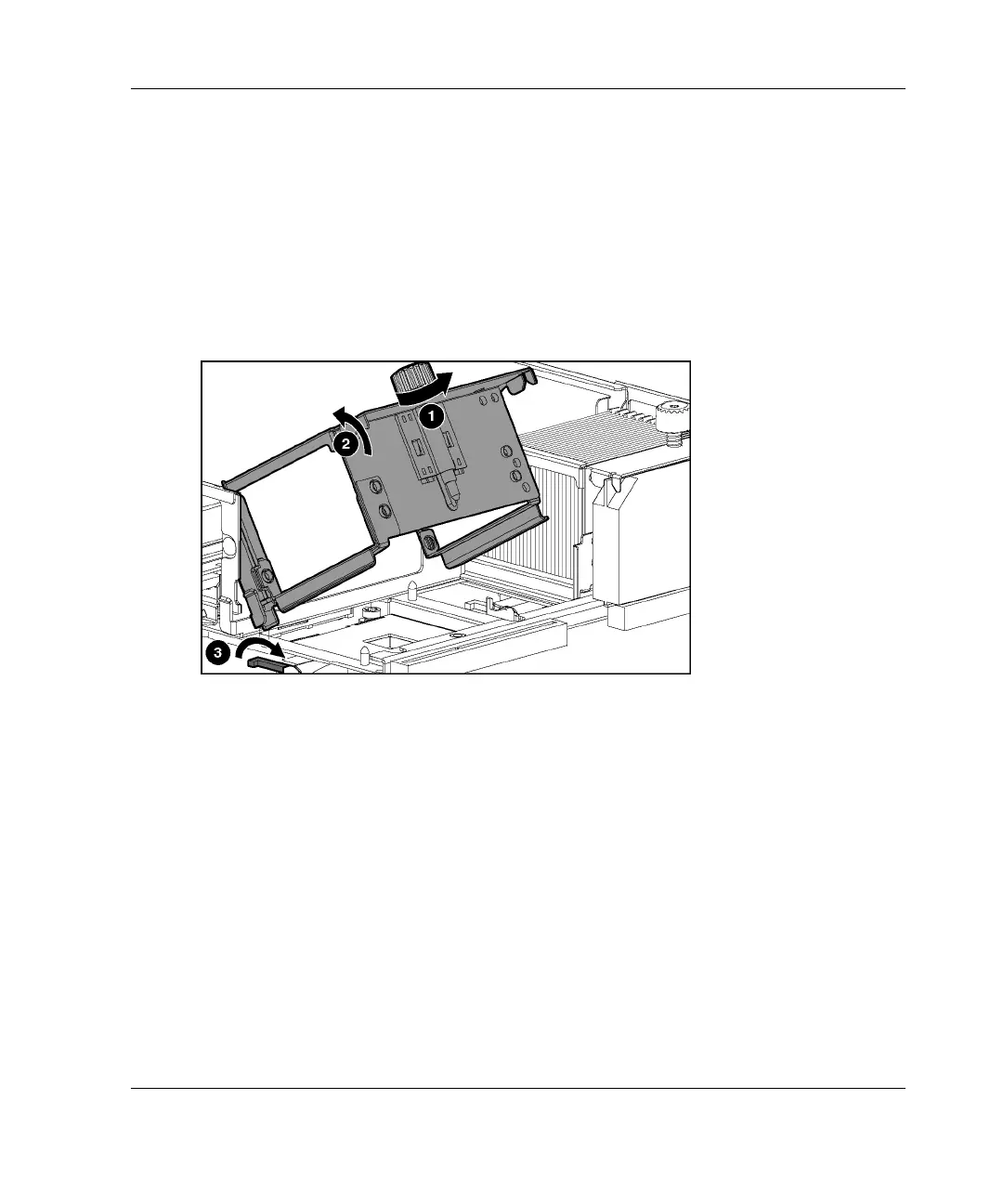

Figure 5-18: Opening the processor retaining bracket

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 5-23

HP CONFIDENTIAL

Writer: Karen Hale File Name: f-ch5 Installing Hardware Options.doc

Codename: Dwarf Part Number: 230835-003 Last Saved On: 6/26/03 9:31 AM
