HP Proliant DL580 - Opening and Removing the Access Panels; Releasing the Rear Access Panel

Installing Hardware Options
Opening and Removing the Access Panels
To open and remove the access panels:
1. Extend the server from the rack. Refer to “Extending the Server from the Rack”
in this chapter.
2. Remove the rear access panel:
a. Use the Torx T-15 tool, located on the back of the server, to turn the locking
screw on the rear access panel counterclockwise to unlock the latch (1).
b. Pull the tab on the rear access panel toward the rear of the server until it
releases (2).

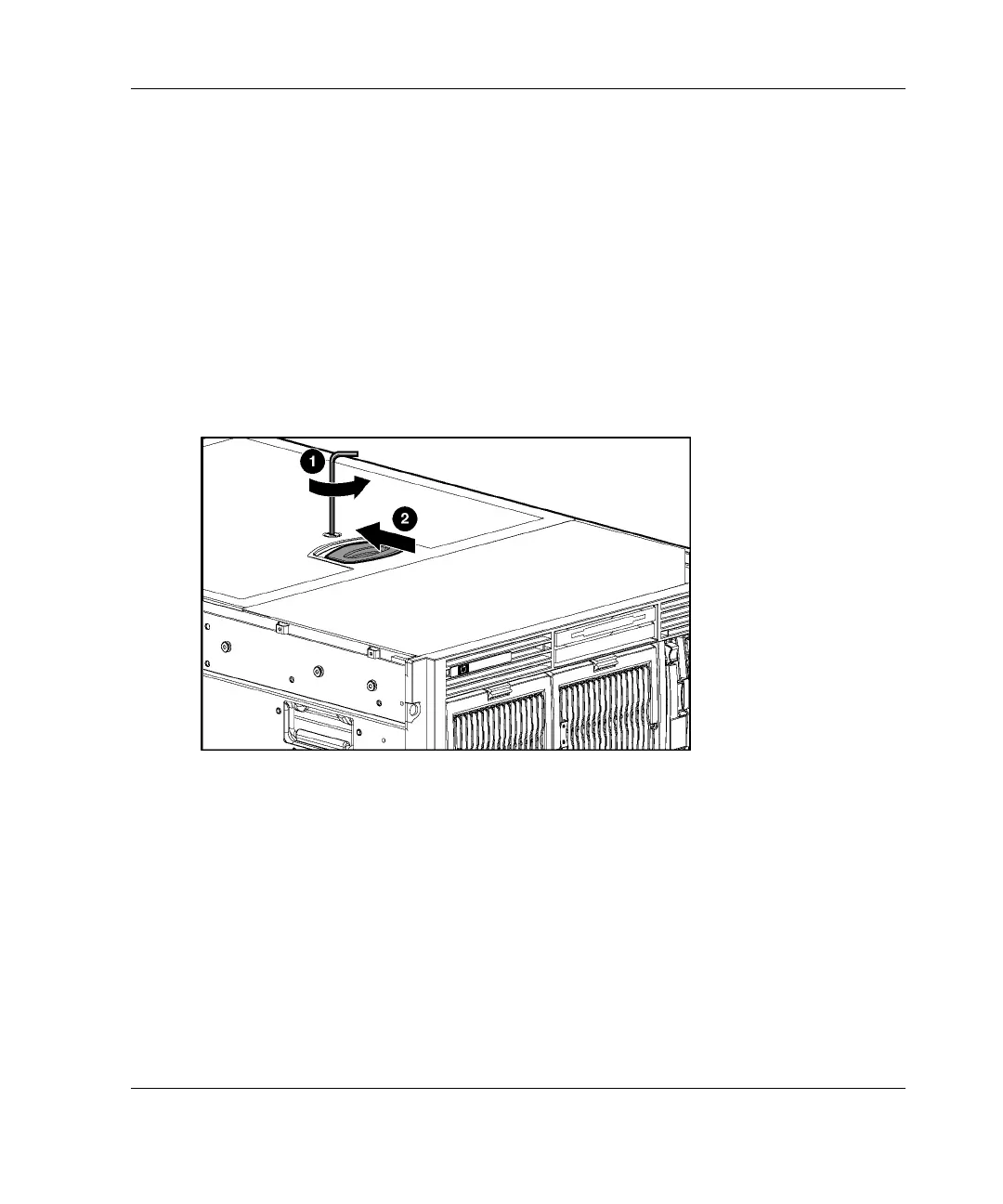

Figure 5-7: Releasing the rear access panel
