Installing Hardware Options

10. Install the PPM into the available PPM slot. Be sure the key slot in the PPM is

aligned with the key in the slot. Press firmly to seat the PPM securely in the slot.

NOTE: PPMs with the same part number may look different, but are functionally

equivalent.

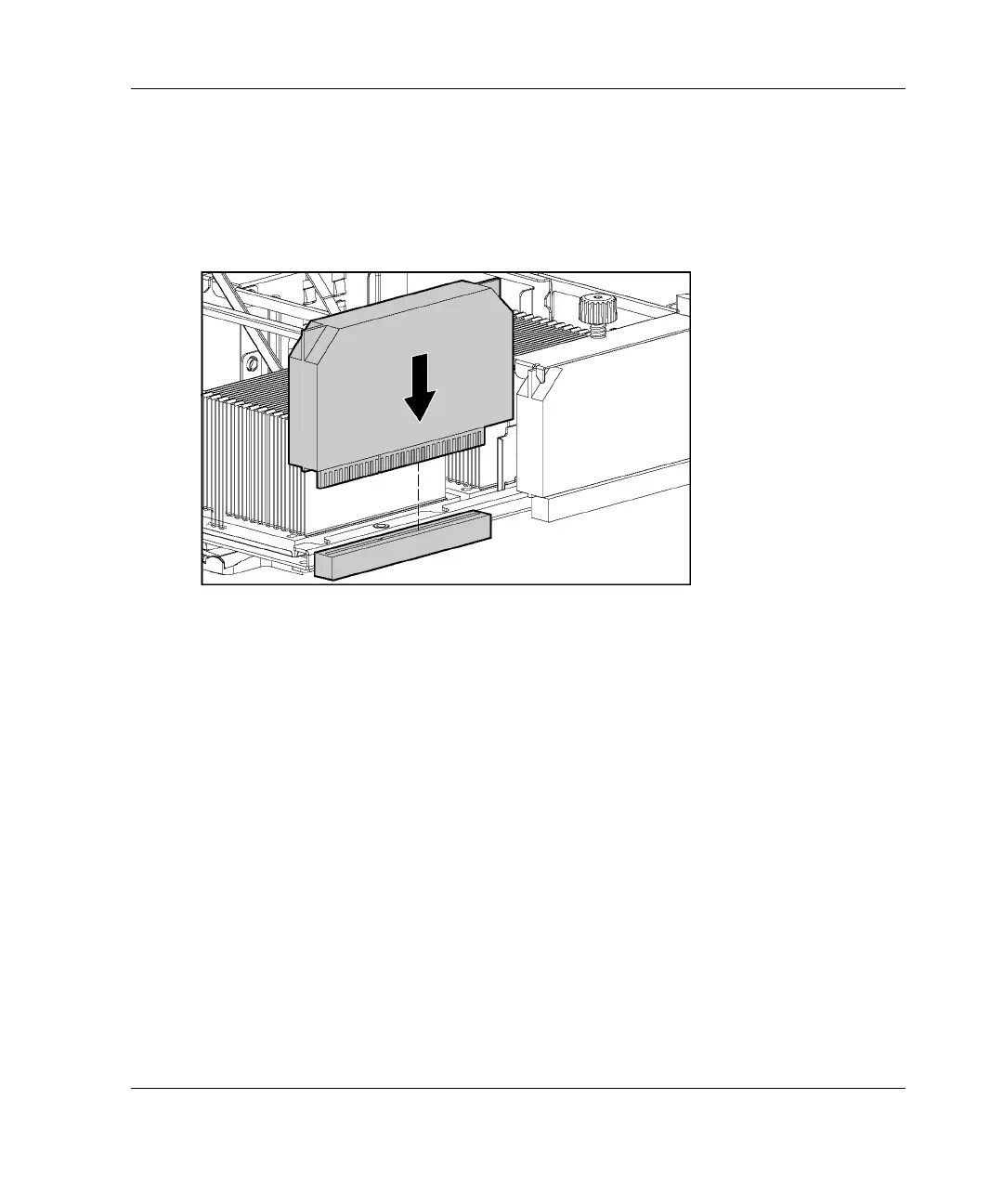

Figure 5-20: Installing the PPM

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 5-25

HP CONFIDENTIAL

Writer: Karen Hale File Name: f-ch5 Installing Hardware Options.doc

Codename: Dwarf Part Number: 230835-003 Last Saved On: 6/26/03 9:31 AM
