Installing Hardware Options

c. Slide the rear access panel toward the front of the server (1).

d. Push and hold the access panel release lever down (2) while sliding the rear

access panel forward about 2.54 cm (1 in).

IMPORTANT: The guide marks on the rear access panel and the server must line up

before proceeding to the next step.

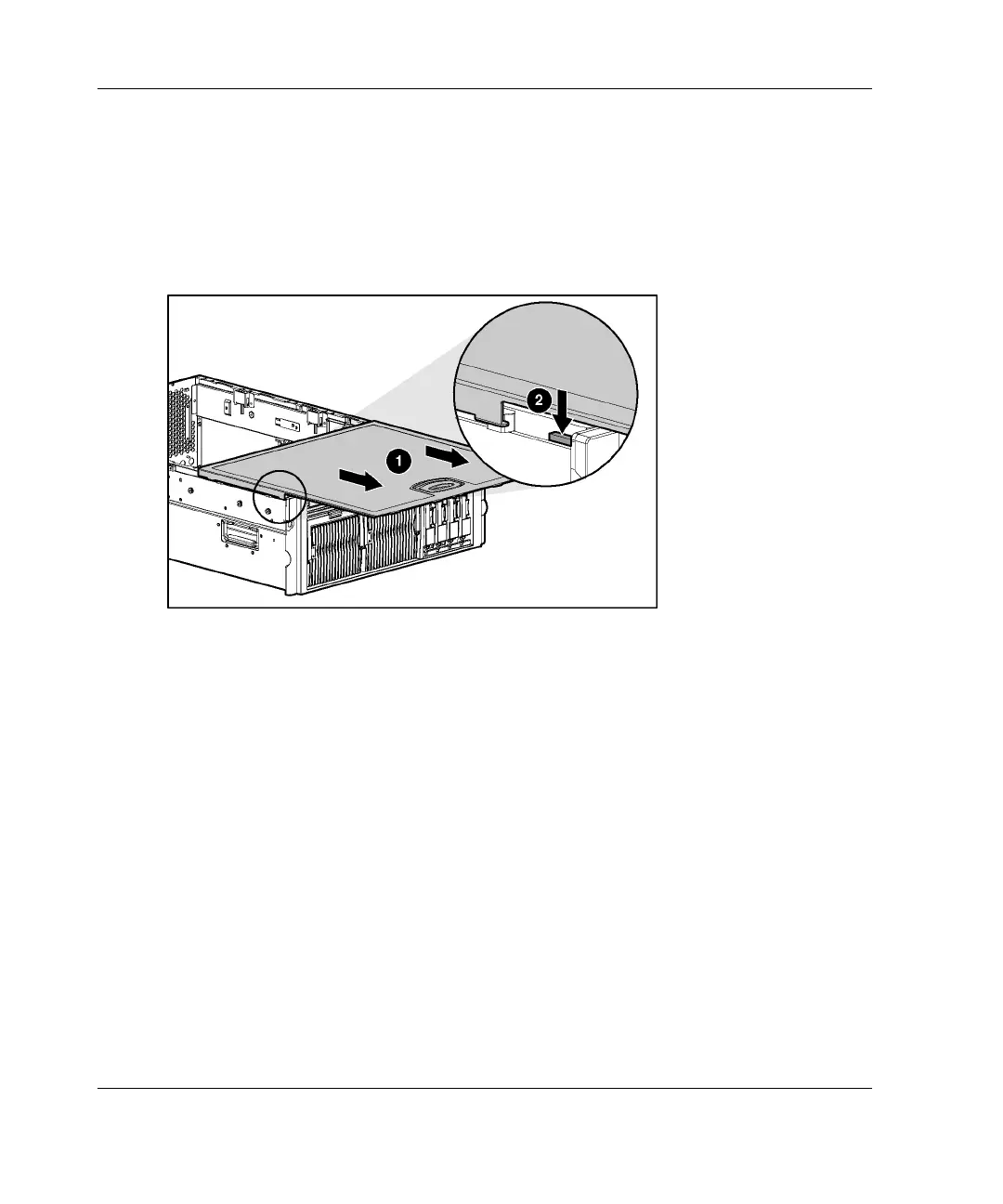

Figure 5-8: Opening the rear access panel

5-14 HP ProLiant DL580 Generation 2 Server Setup and Installation Guide

HP CONFIDENTIAL

Writer: Karen Hale File Name: f-ch5 Installing Hardware Options.doc

Codename: Dwarf Part Number: 230835-003 Last Saved On: 6/26/03 9:31 AM
