Installing the Server in a Rack

Securing the Cables to the Cable Management Arm

1. Align the pivot points of the cable management arm by sliding the server as

needed.

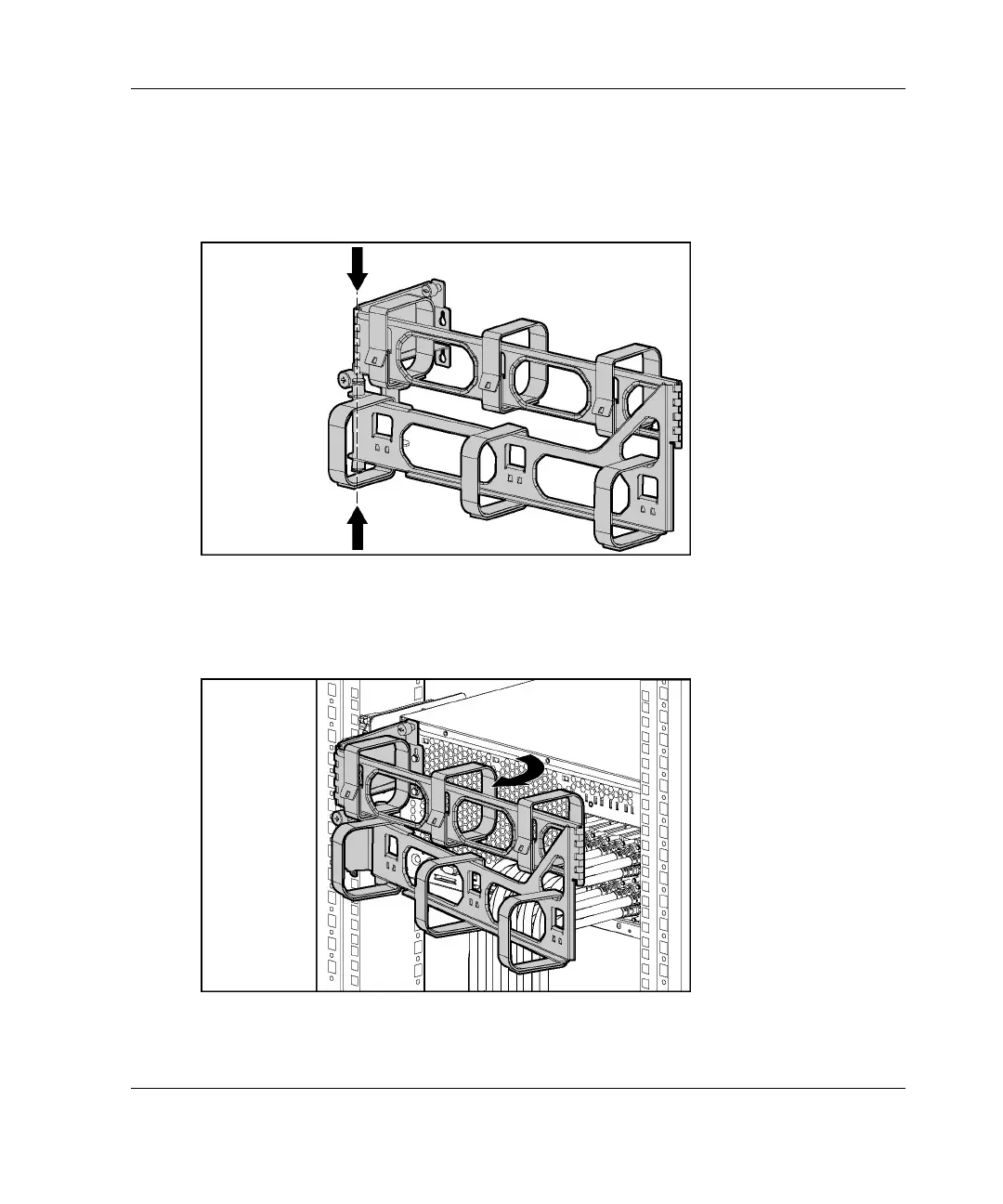

Figure 8-20: Aligning the cable management arm pivot

points

2. Pivot the arm away from the server.

Figure 8-21: Pivoting the cable management arm

HP ProLiant DL580 Generation 2 Server Setup and Installation Guide 8-23

HP CONFIDENTIAL

Writer: Karen Hale File Name: i-ch8 Installing the Server in a Rack.doc

Codename: Wave Part Number: 230835-003 Last Saved On: 6/26/03 9:41 AM
