System LEDs and Switches
Memory Board LEDs
Use Figure E-7 and Table E-8 to identify the memory board LEDs and their statuses.

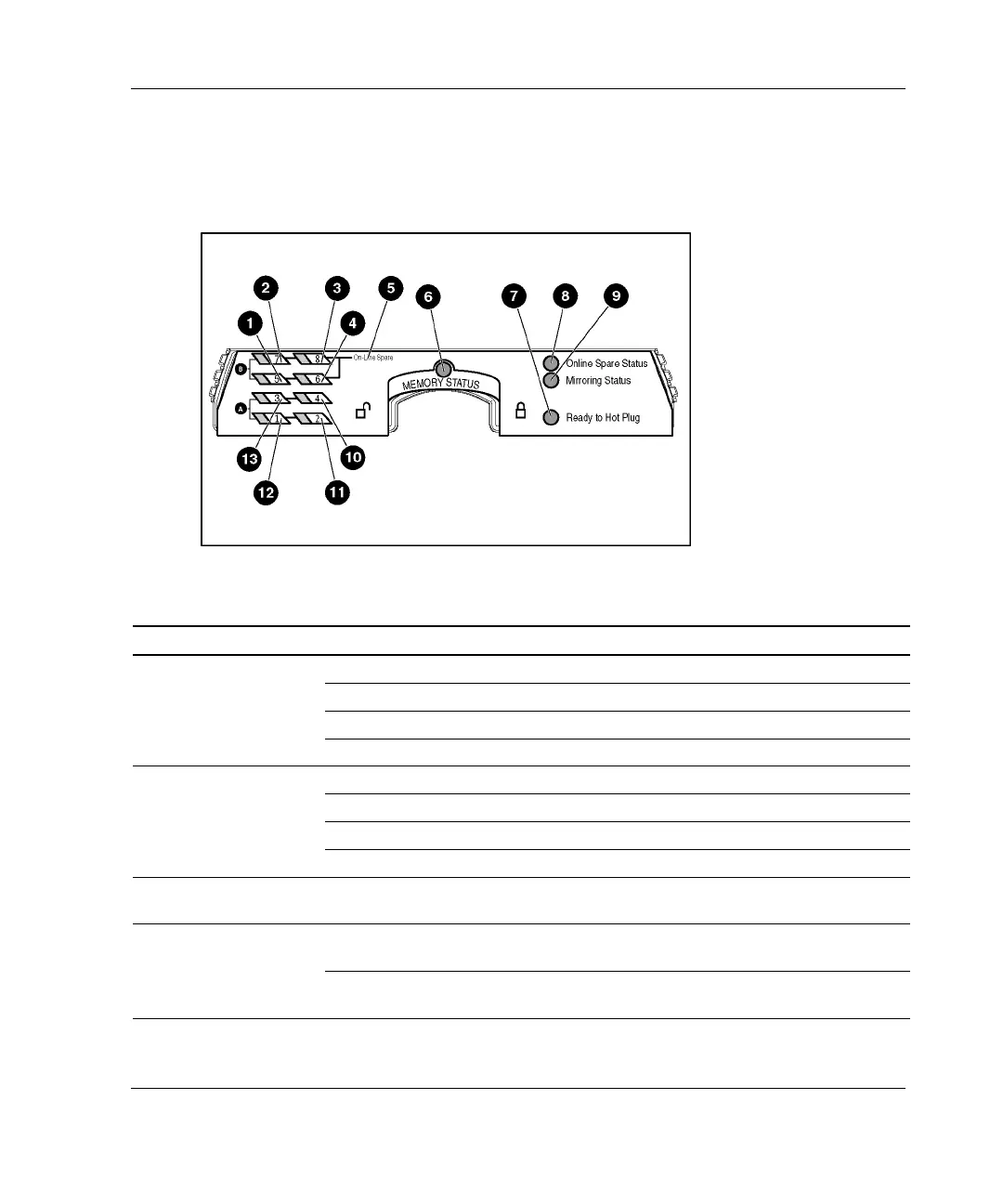

Figure E-7: Memory board LEDs
Table E-8: Advanced ECC (Standard) Memory Mode
Item Description Indicator Status
Off DIMM is not installed.
Green DIMM is installed.
Amber Memory error has occurred on this DIMM.
1 – 4
and
10 – 13
DIMMs 1 – 8
Flashing amber Configuration error has occurred.
Off Memory board is offline.
Green Memory board is online.
Flashing green Memory board is busy.
6
Memory
Status
Amber Memory error has occurred on this memory board.
7
Ready to Hot
Plug
Off
Do not remove memory board—advanced ECC
memory does not support hot-removal of boards.
Off
Memory board is not seated properly or locking switch
is not engaged; memory board can be removed safely.
All LEDs
Flashing amber
CAUTION: Memory board is in use; relock it
immediately.
HP ProLiant DL580 Generation 2 Server Setup and Installation Guide E-9
