Hardware options installation 80
8. Remove the processor assembly from the processor tray.

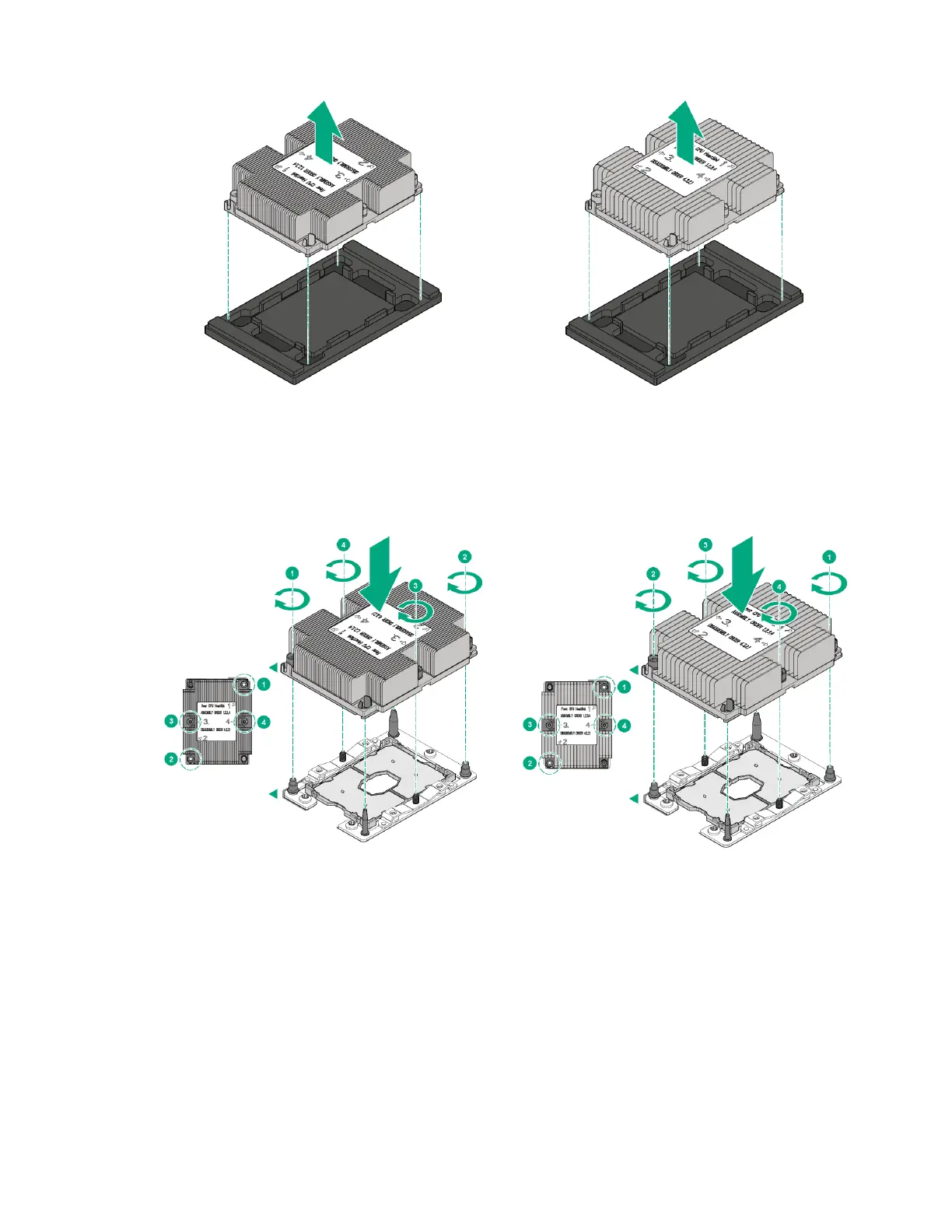

9. Align the heat sink assembly over the CPU socket. Make sure the guide pins on the socket align with
the mounting holes on the CPU carrier.
10. Lower the heat sink assembly and install in the slot. The guide pins are inserted through the
mounting holes on the heat sink assembly when properly installed.
11. Tighten the four retaining screws clockwise, in the order shown, to secure the processor assembly.
12. Repeat the procedure for the additional processor.
13. Install the air baffle (on page 49).
14. Install the access panel (on page 31).
