Grounding

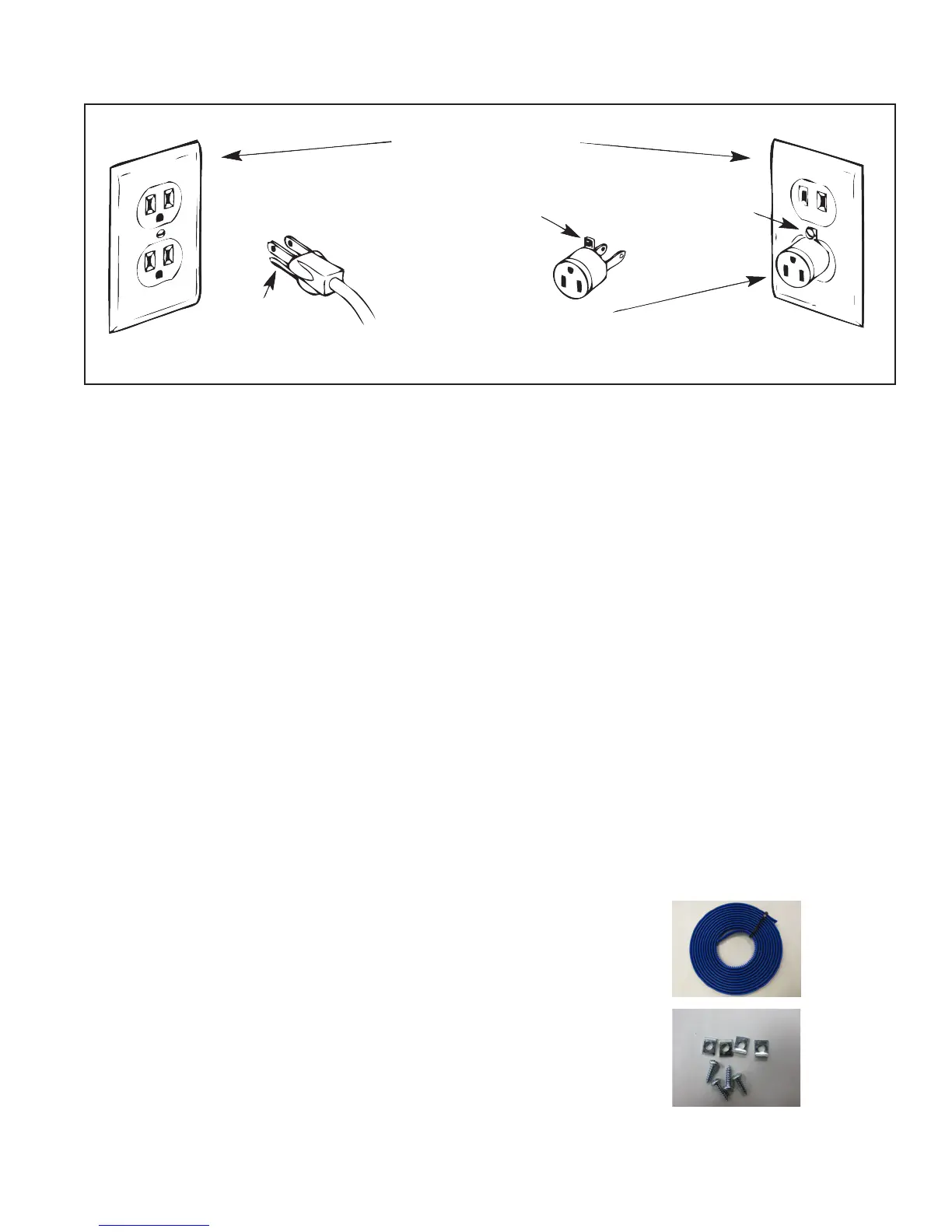

GROUNDED OUTLET BOXES
METAL
SCREW
ADAPTER
(B)
(C)
TAB FOR
GROUNDING
SCREW
(A)
GROUNDING PIN
This product is for use on a nominal 120 V or nominal 220 V circuit, and has a grounding plug that looks
like the plug illustrated in sketch A above. A temporary adapter, which looks like the adapter illustrated in
sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly
grounded outlet is not available. The temporary adapter should be used only unl a properly grounded
outlet can be installed by a qualied electrician. The green colored rigid ear, lug, and the like, extending
from the adapter, must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by the metal screw.
IMPORTANT: In Canada, the use of a temporary adapter is not permied by the Canadian Electric
Code.
Parts List
This list shows the parts of the HQ Pro-Stcher. Items A through Q are for the HQ
18
Avanté (8-wheel
carriage version) and HQ
24
Fusion. Items A through U are for the HQ Sixteen and HQ
18
Avanté (4-wheel
carriage version). Items G, R, S, or T may not be included or needed.
NOTE: The parts photographed in this manual may look dierent from the ones you received.
Item Quanty Photo
A. Blue X-axis Flexirack (12 feet) 1
B. X-axis Flexirack clamps and screws 4
Ü
!
