09/01/13www.HandiQuilter.com Installaon | 3.19

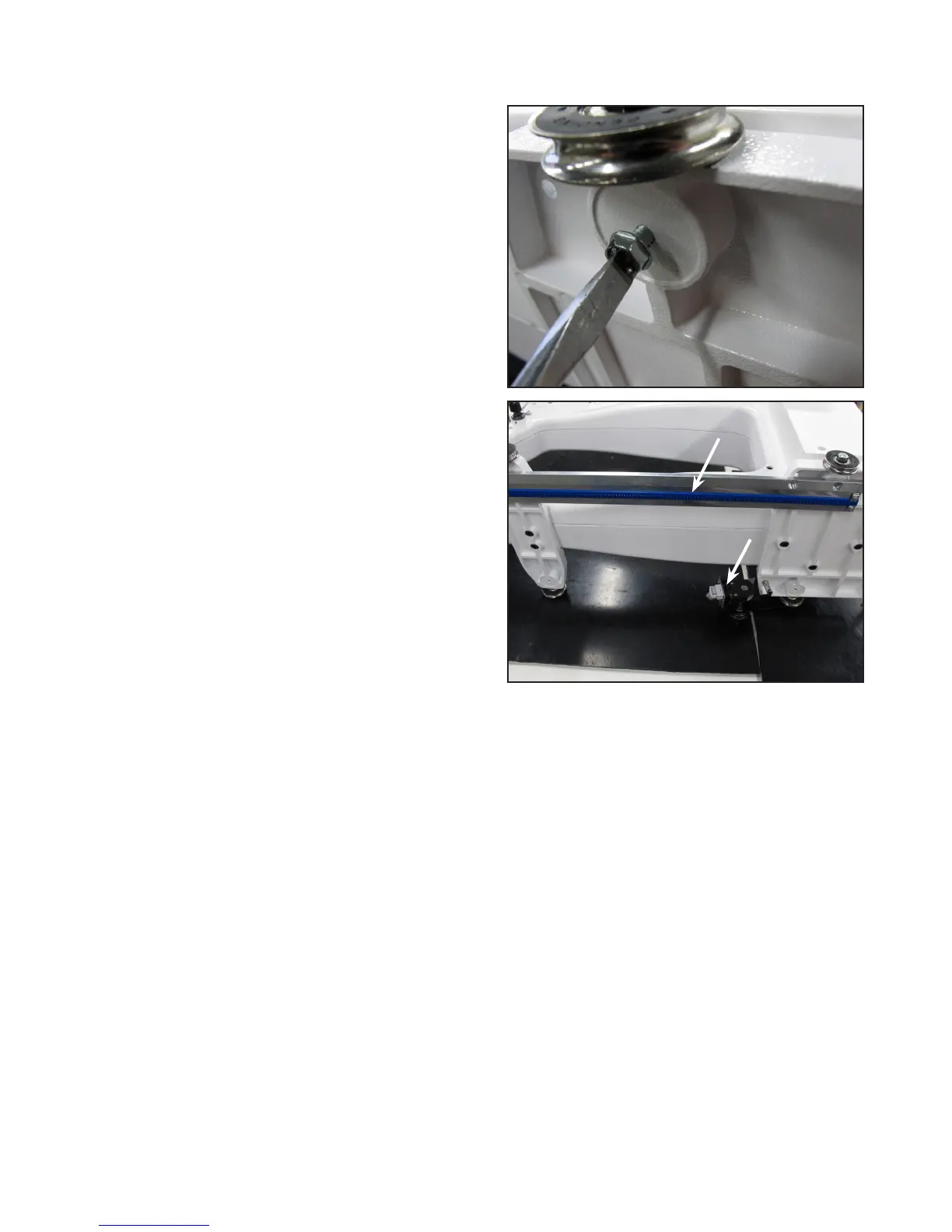

To install the Y-Rack
1. Carefully lay the quilng machine on its power pod
side. Underneath the base plates, near the wheels on
the C-Pod side of the machine (the side with the thread
tensioner and guides) there will be either two screws
or two holes. If the screws are there, use a large
sloed (at) screwdriver to remove the screws.
2. Aach the Y-Rack. The blue Flexirack should be
toward the middle of the machine while the bolt
holes should be toward the outside. Use the screws
that were removed from the front and rear base
plates (or use the two smallest screws in the Base Plate
Repair Kit (see Parts List, item D) if your machine had
no screws here) to mount the Y-Rack to the boom of
the front and rear base plates.
Be careful not to over-ghten the screws as the base
plate holes will strip easily. In case of accidentally
cross-threading or stripping one of the base plate
holes, an emergency repair kit (see Parts List, item D)
has been provided.
3. If the screws in the base plates do not have sloed heads and you cannot t a nut driver over the
screw head, please use one of the provided sloed screws as a replacement (see Parts List, item D)
and use a sloed screwdriver to ghten the screws in place.
Y-Rack
Y-Encoder
To Next Page
