09/01/13www.HandiQuilter.com Installaon | 3.23

Set Up the New Carriage

1. Remove the new HQ Pro-Stcher Carriage (see Parts List, item E) from the box. Place the carriage on

the frame/table to aach the cables.

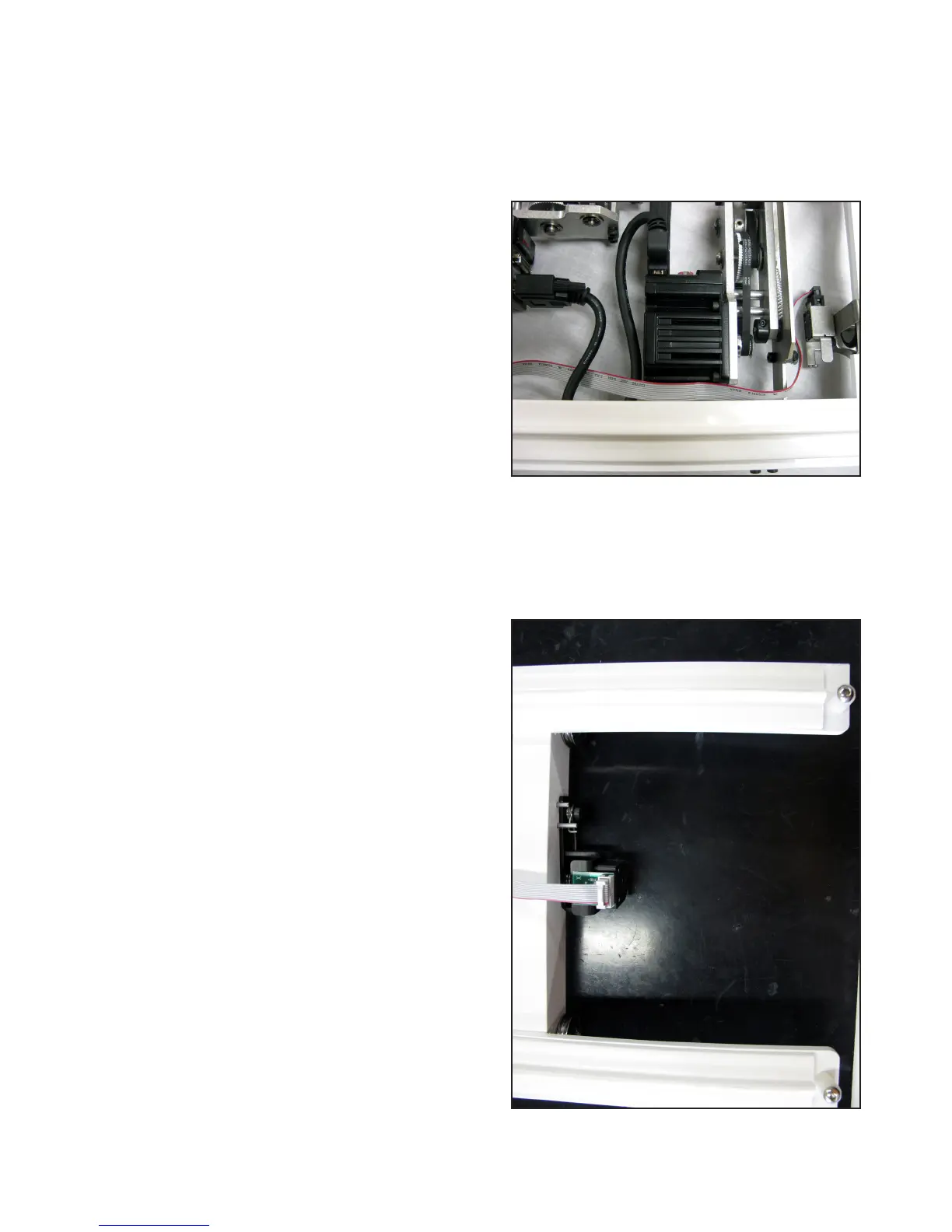

2. Plug the 10-pin connector on the end of the at

gray stch-regulator cable (opposite the 9-pin D-sub

connector) into the X-axis stch regulator encoder.

Make sure the red stripe on the gray cable is facing up

for the HQ-Sixteen and the le (power cord side) for

the HQ

Avanté (pictured below).

HQ Sixteen

Route the cable around the X-axis motor

bracket and through the black motor cable

loop to keep the gray cable from interfering

with the machine or carriage.

Avanté
