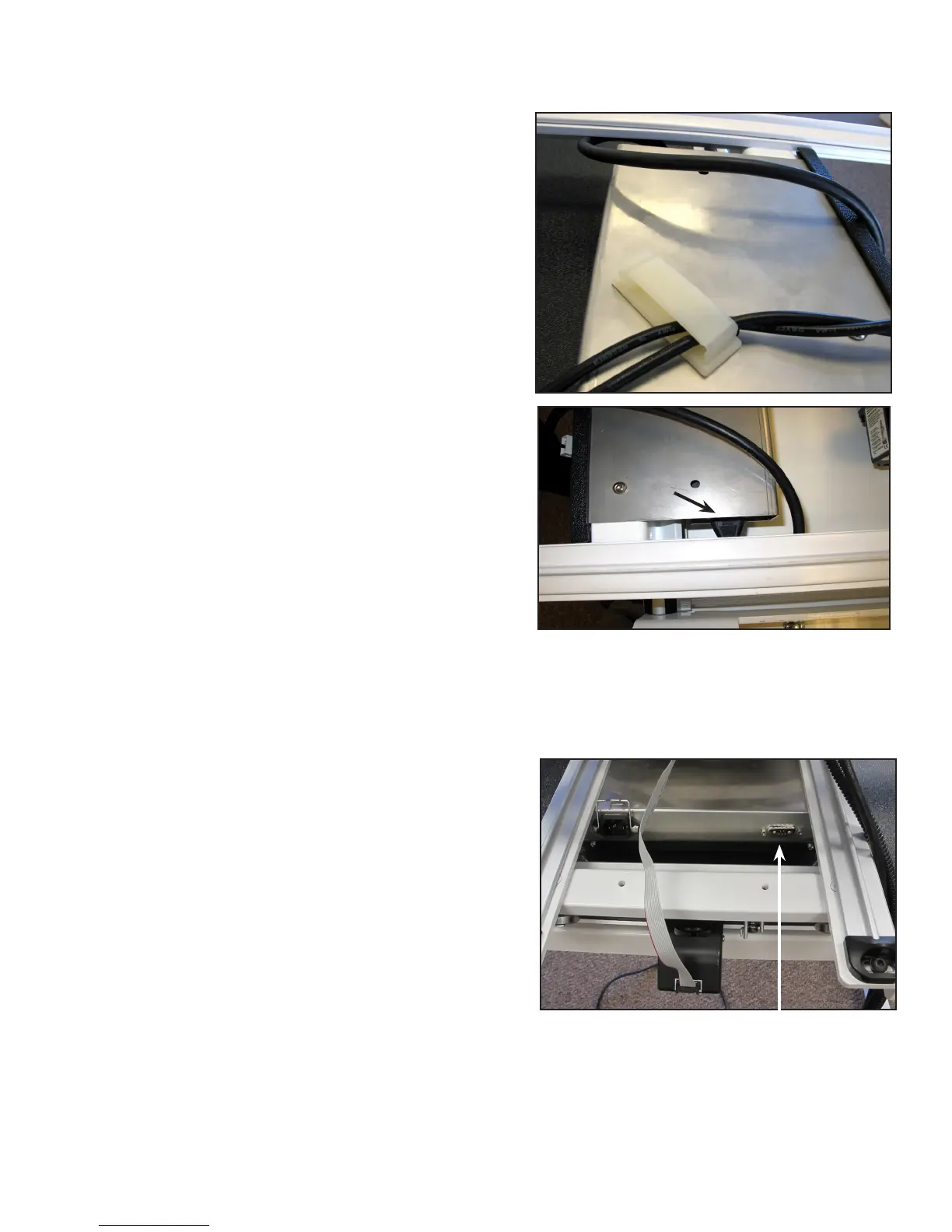

To set up the HQ Pro-Stcher carriage
1. Place the Pro-Stcher carriage on the frame system
and une the black twist es that are binding the
black cables in a loop. Drape the black cables over the
back of the carriage.
2. Plug one branch of the Y-power cord (see Parts List,
item I) into the power supply located toward the rear
of the carriage. Route the power cord through the
cord brackets as shown.
3. Carefully li the quilng machine and place it on the carriage so the wheels engage the white carriage
tracks, making sure not to set the wheels on top of the stch regulator cable. This is easier to do with
two people – one at each end of the quilng machine.
4. With one end of the stch-regulator cable plugged
into the machine’s C-Pod and the middle connector
plugged into the quilng machine’s Y-encoder, plug
the other end of the cable into the carriage X-
encoder.
5. Aach one end of the harness cable (see Parts List,
item P) into the connector on the right side of the
power supply. Tighten the side screws. You will plug
the other ends to the bracket as part of step 5 when
you aach the tablet computer.
Aach harness cable.
