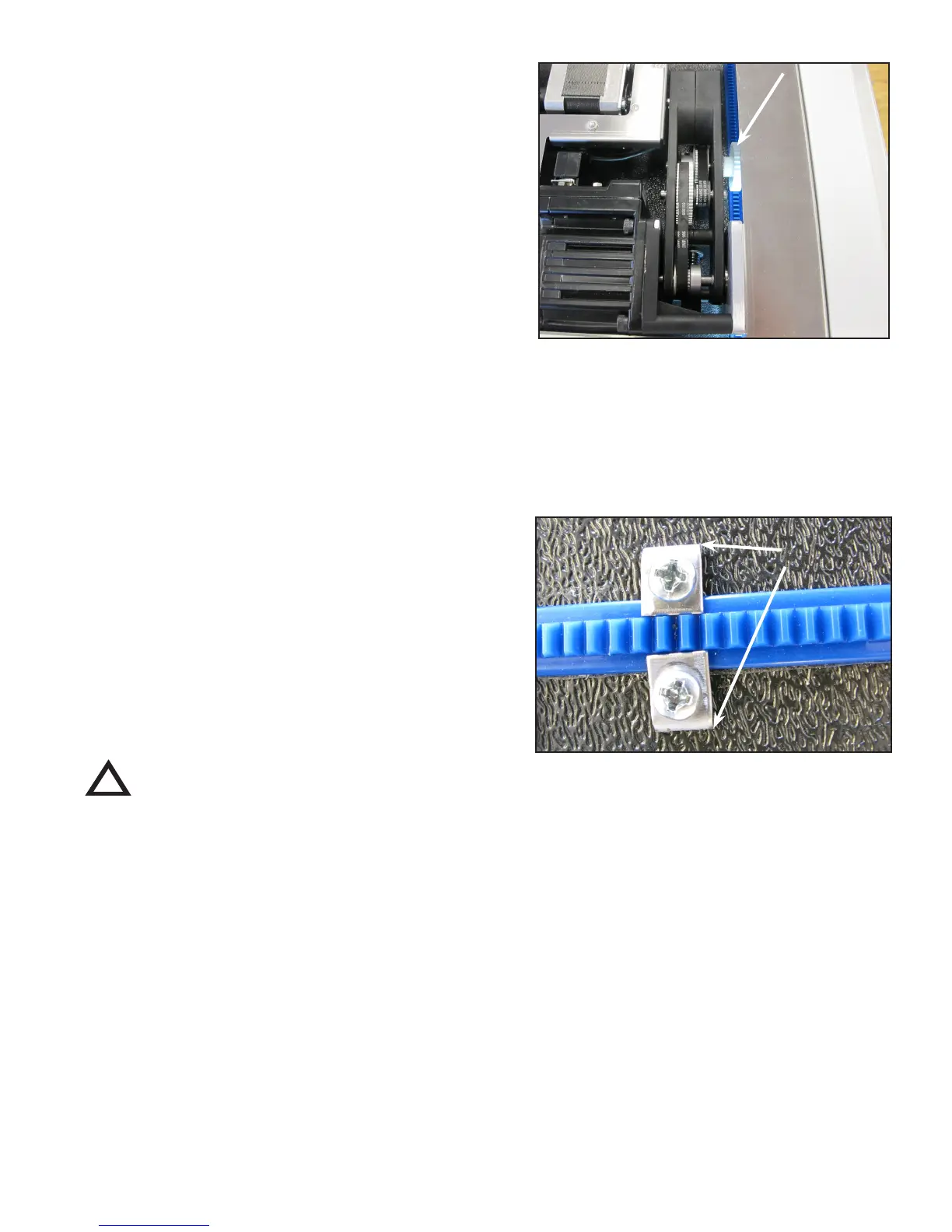

4. Use the carriage as a guide and align the blue
Flexirack with the white gear along the length of
the table (see arrow at right), removing the pink
protecve layer and pressing down on the blue
Flexirack while moving down the enre length of the
table.
5. Double check the alignment of the carriage white gear with the blue Flexirack by rolling the carriage
along the enre length of the table.
6. Trim the Flexirack to length using a knife or wire cuers if necessary (the blue Flexirack does not
necessarily need to extend the full width of the table and can actually be a couple of inches shorter on
either end, if desired).
7. At the ends of the blue rack, use the four small metal
clamps (see Parts List, item B) to hold the ends rmly
in place. The clamps have a hole through the center
and a lip on one end. The lip should be on the side
opposite the blue Flexirack. Drill pilot holes using
the 3/32-inch drill bit and then aach the clamps
as shown on either end of the blue Flexirack using a
Phillips screwdriver.
CAUTION: Do not use the larger drill bit included in the emergency repair kit, as this is the wrong
size for the X-rack clamps.
NOTE: As an alternave, use one clamp at each end. Slide the lip of the clamp over the last gear
of the blue Flexirack, drill a pilot hole, and screw in place.
