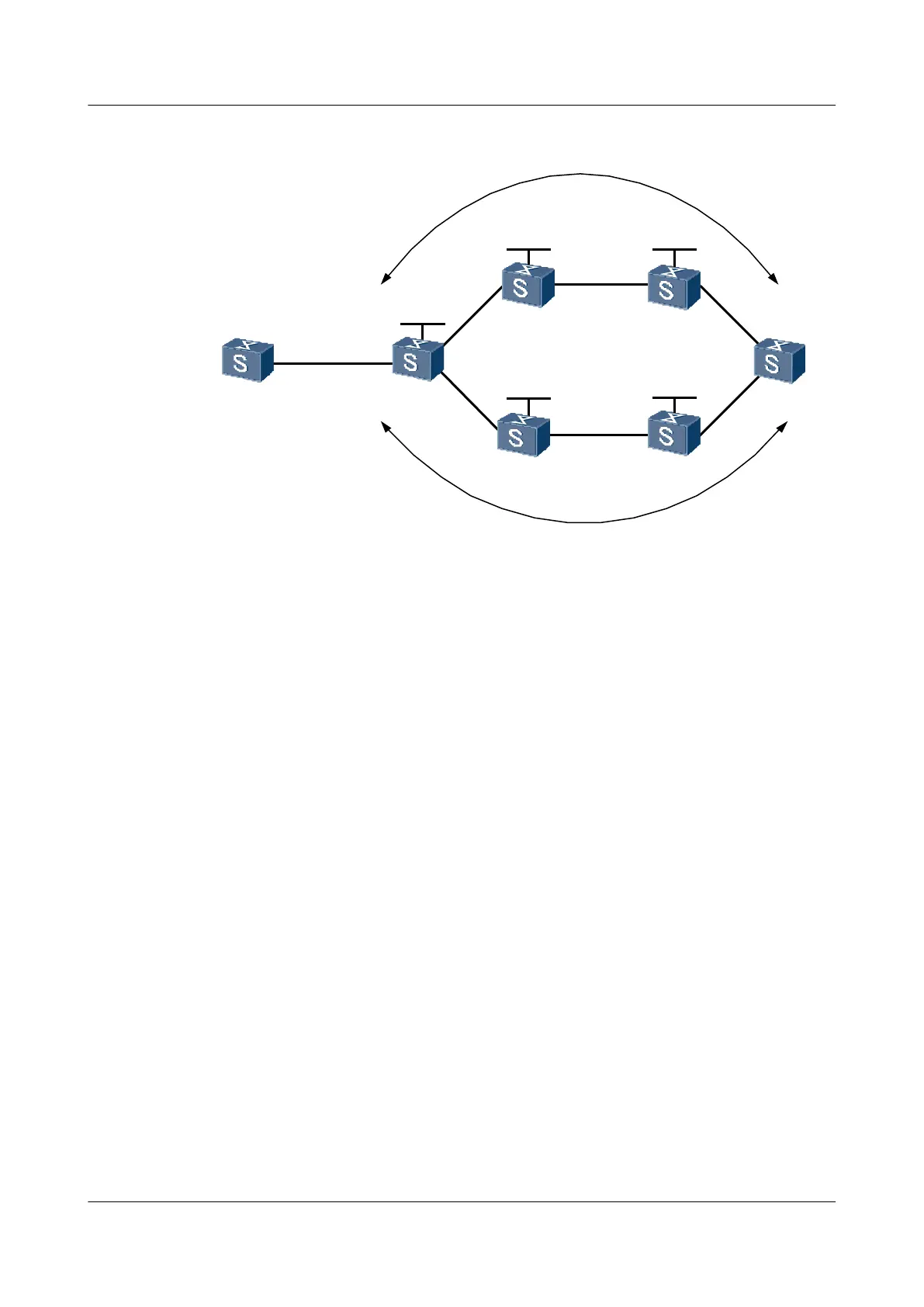

Figure 6-16 Networking diagram for configuring static BFD for PW
GE1/0/0
GE1/0/0
GE1/0/1
GE1/0/2
GE1/0/0
GE1/0/1
GE1/0/1
GE1/0/0
GE1/0/0
GE1/0/0
GE1/0/1
GE1/0/1
GE1/0/0
GE1/0/1
PE1
CE1
P1
P2
PE2
PE3
CE2
PW1
PW2
Loopback1
1.1.1.1/32
Loopback1
2.2.2.2/32
Loopback1
4.4.4.4/32
Loopback1
3.3.3.3/32
Loopback1
5.5.5.5/32
Device Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet1/0/1 VLANIF 20 100.1.1.1/30
GigabitEthernet1/0/2 VLANIF 30 200.1.1.1/30
Loopback1 - 1.1.1.1/32
PE2 GigabitEthernet1/0/0 VLANIF 40 100.2.1.2/30
GigabitEthernet1/0/1 VLANIF 50 -
Loopback1 - 4.4.4.4/32
PE3 GigabitEthernet1/0/0 VLANIF 60 200.2.1.2/30
GigabitEthernet1/0/1 VLANIF 70 -
Loopback1 - 5.5.5.5/32
P1 GigabitEthernet1/0/0 VLANIF 40 100.2.1.1/30
GigabitEthernet1/0/1 VLANIF 20 100.1.1.2/30
Loopback1 - 2.2.2.2/32
P2 GigabitEthernet1/0/0 VLANIF 60 200.2.1.1/30
GigabitEthernet1/0/1 VLANIF 30 200.1.1.2/30
Loopback1 - 4.4.4.9/32
CE1 GigabitEthernet1/0/0 VLANIF 10 10.1.1.1/30(Primary IP Address)
10.1.2.1/30(Secondary IP Address)
CE2 GigabitEthernet1/0/0 VLANIF 50 10.1.1.2/30
GigabitEthernet1/0/1 VLANIF 70 10.1.2.2/30
