High-Speed Bus Extension
You can extend the high-speed bus by using the Ethernet or Token Ring bus extension. The
Ethernet and Token Ring bus extension is required when your network requirements exceed
three chassis per node.
The standard bus is also extended by grouping three chassis, using the Hypercom Type HB3
cable, and connecting these groups using the Ethernet or Token Ring bus extension. Refer
to CHAPTER 4, Type HB3 for more information about the Hypercom Type HB3 cable. Figure
5-10 illustrates the Ethernet high-speed bus extension.

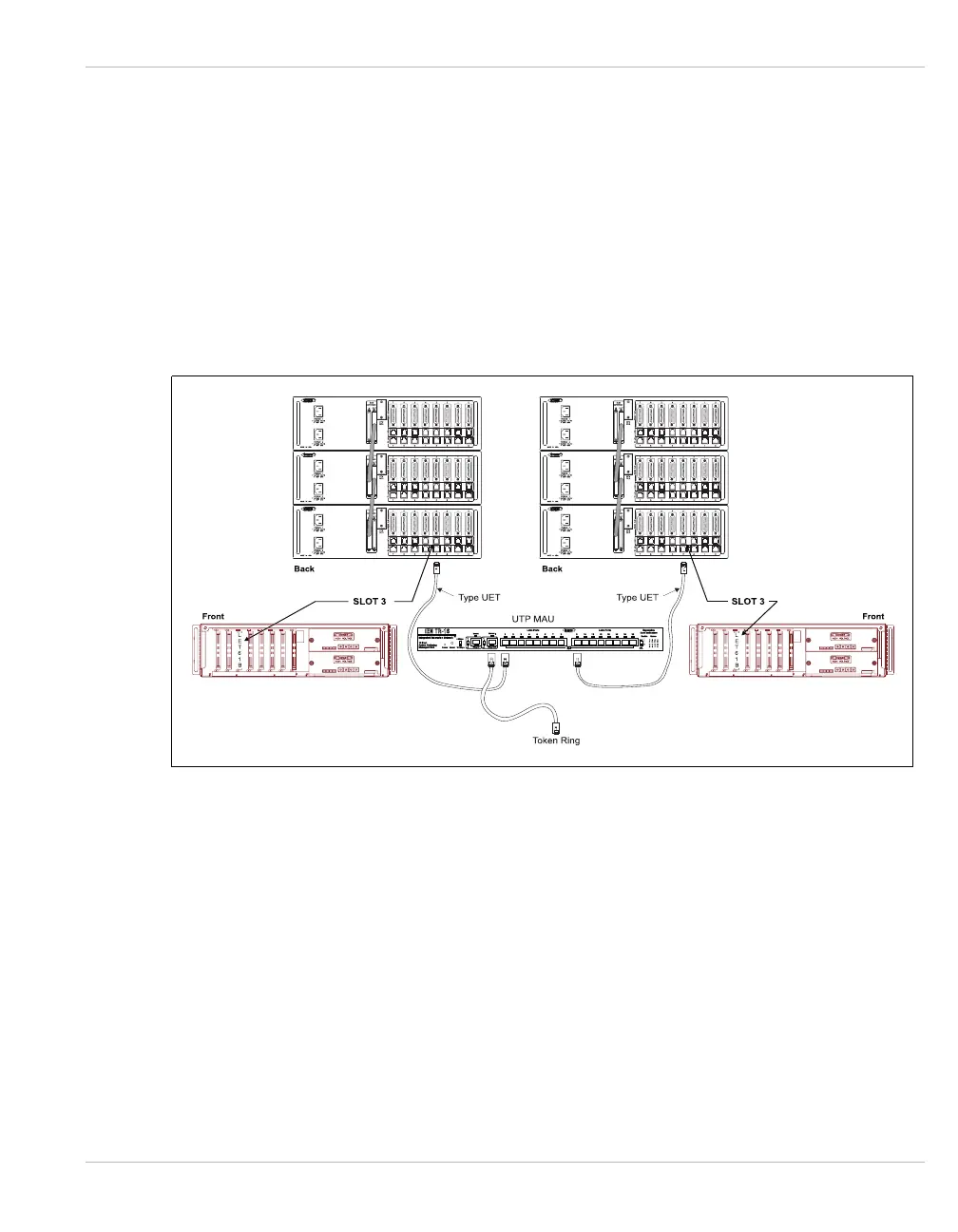

Figure 5-7 Ethernet High-Speed Bus Extension
