PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-17

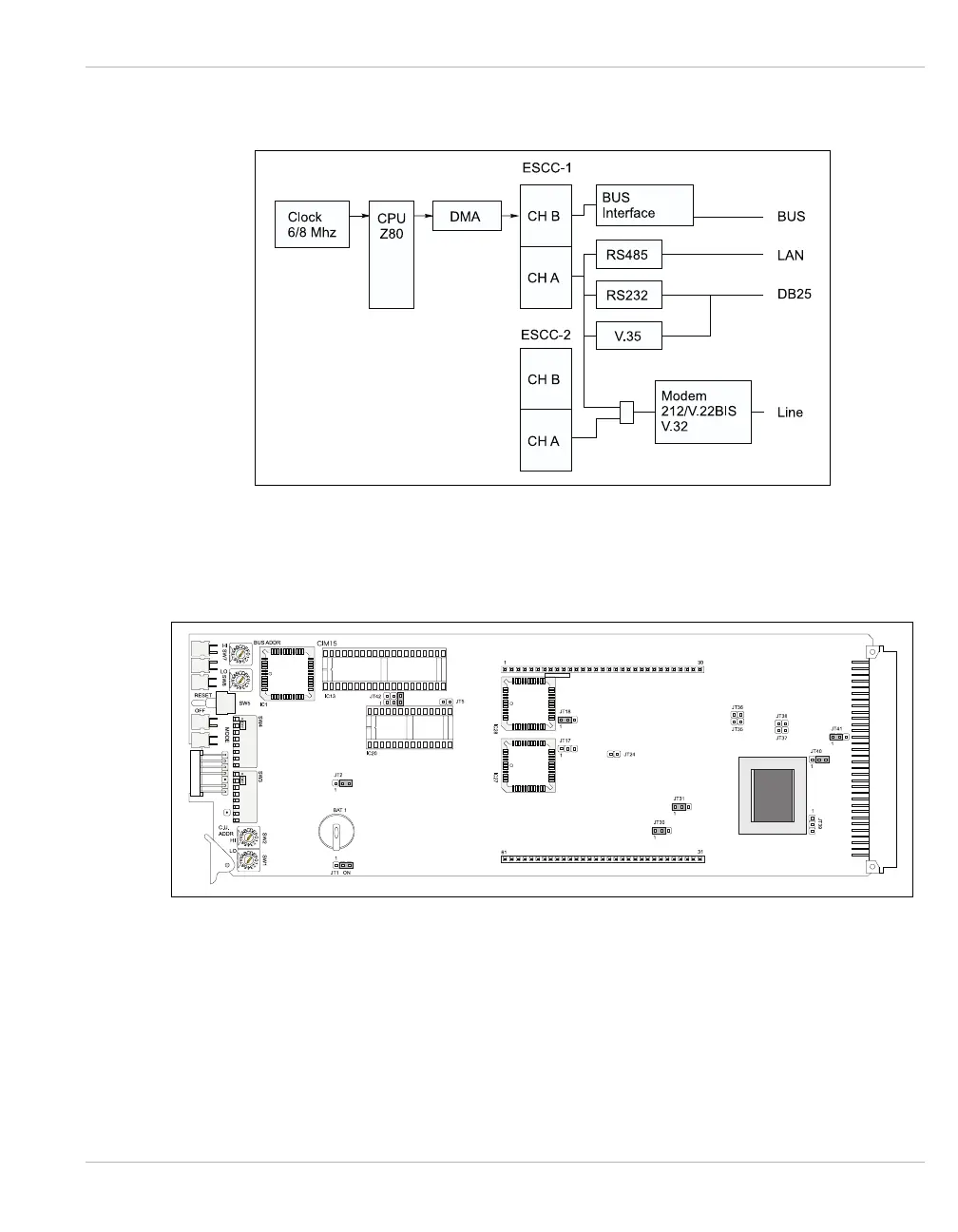

Figure 3-15 illustrates the block diagram for the CIM15-33 port processor.
Figure 3-15 CIM15-33 Block Diagram
Figure 3-16 illustrates the jumper locations for the CIM15H-33 port processor.
Figure 3-16 CIM15H-33 Jumper Locations
