PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-33

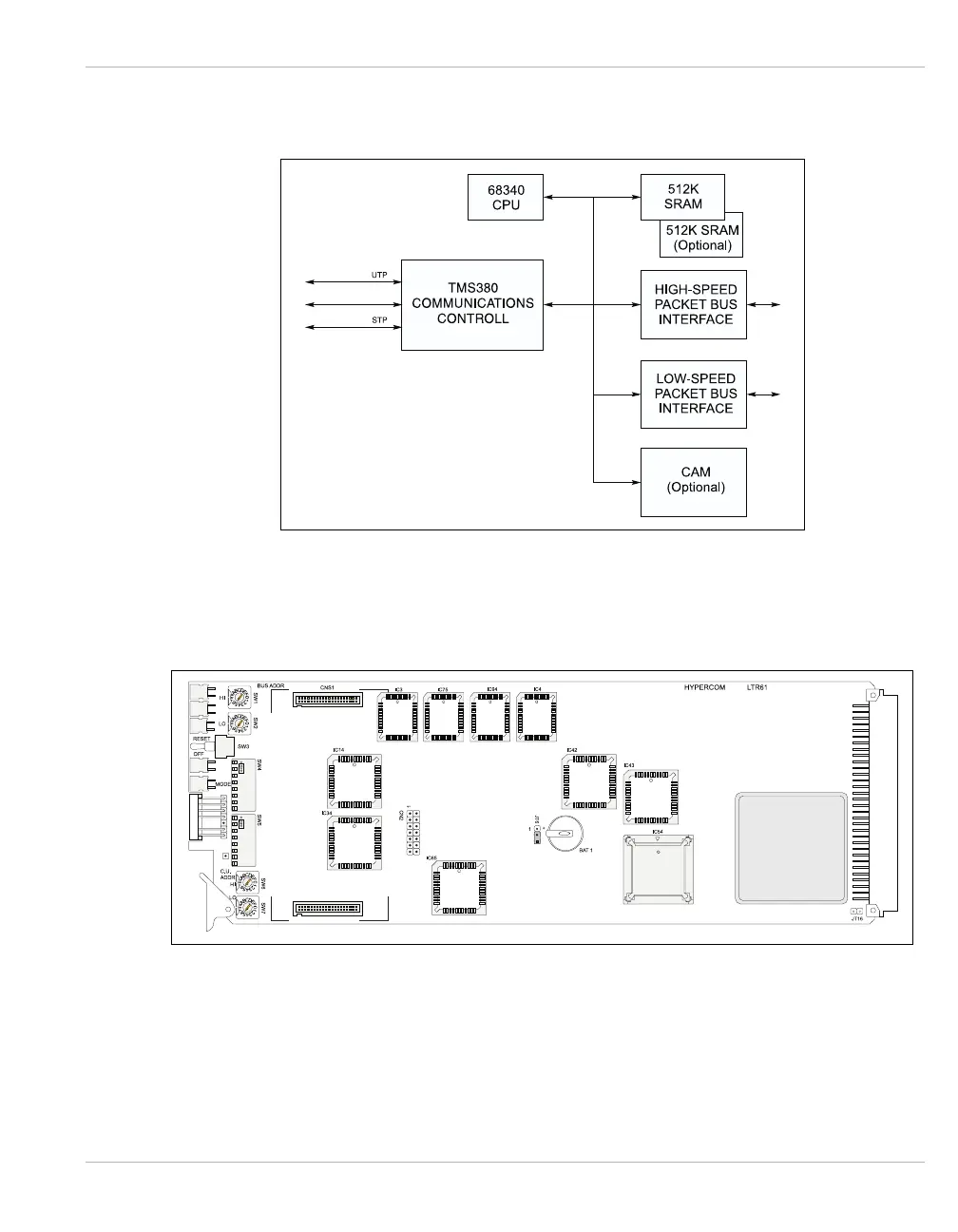

Figure 3-31 illustrates the block diagram for the LTR61, LTR61B and LTR61H port
processors.
Figure 3-31 LTR61, LTR61B and LTR61H Block Diagram
Figure 3-32 illustrates the jumper locations for the LTR61, LTR61B and LTR61H port
processors.
Figure 3-32 LTR61, LTR61B and LTR61H Jumpers
