Hypertherm Powermax30 AIR - Page 112

112 Powermax30 AIR Service Manual 808850
6 – Power Supply Component Replacement

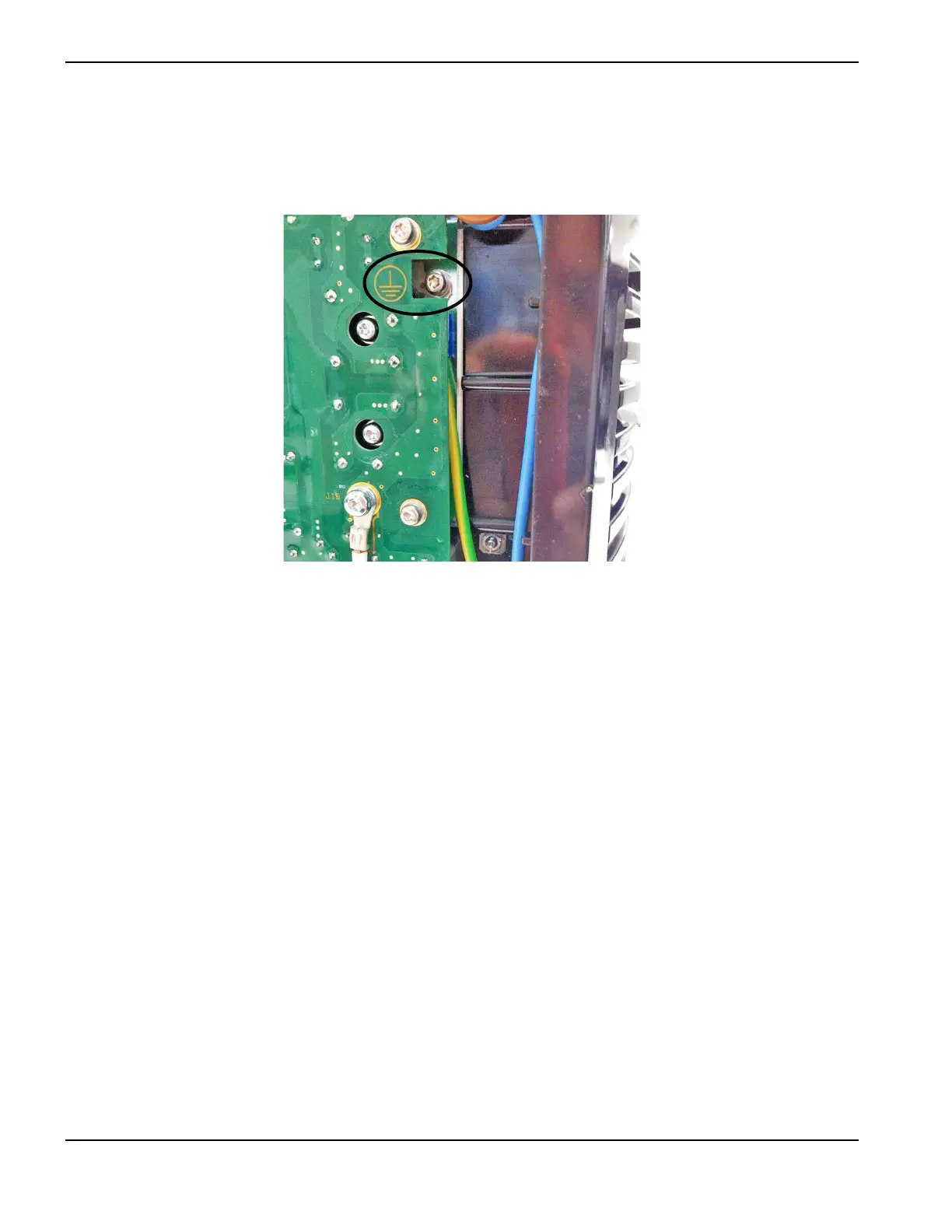

3. Remove the screw that holds the green/yellow ground wire to the heatsink. A notch in the power board provides
access to the screw.
Figure 35
