6 – Power Supply Component Replacement
4. Does the air filter element need to be
replaced?
 If yes, continue with the next step.
 If no, skip to step 5 on page 153.
5. Pry the air filter element out of the top of the
filter bowl to remove it. Be careful not to
damage the O-ring at the top of the bowl.
6. Gently twist the plastic fittings until they
come apart and you can remove the air filter
element from them. Set the 2 plastic fittings
aside.

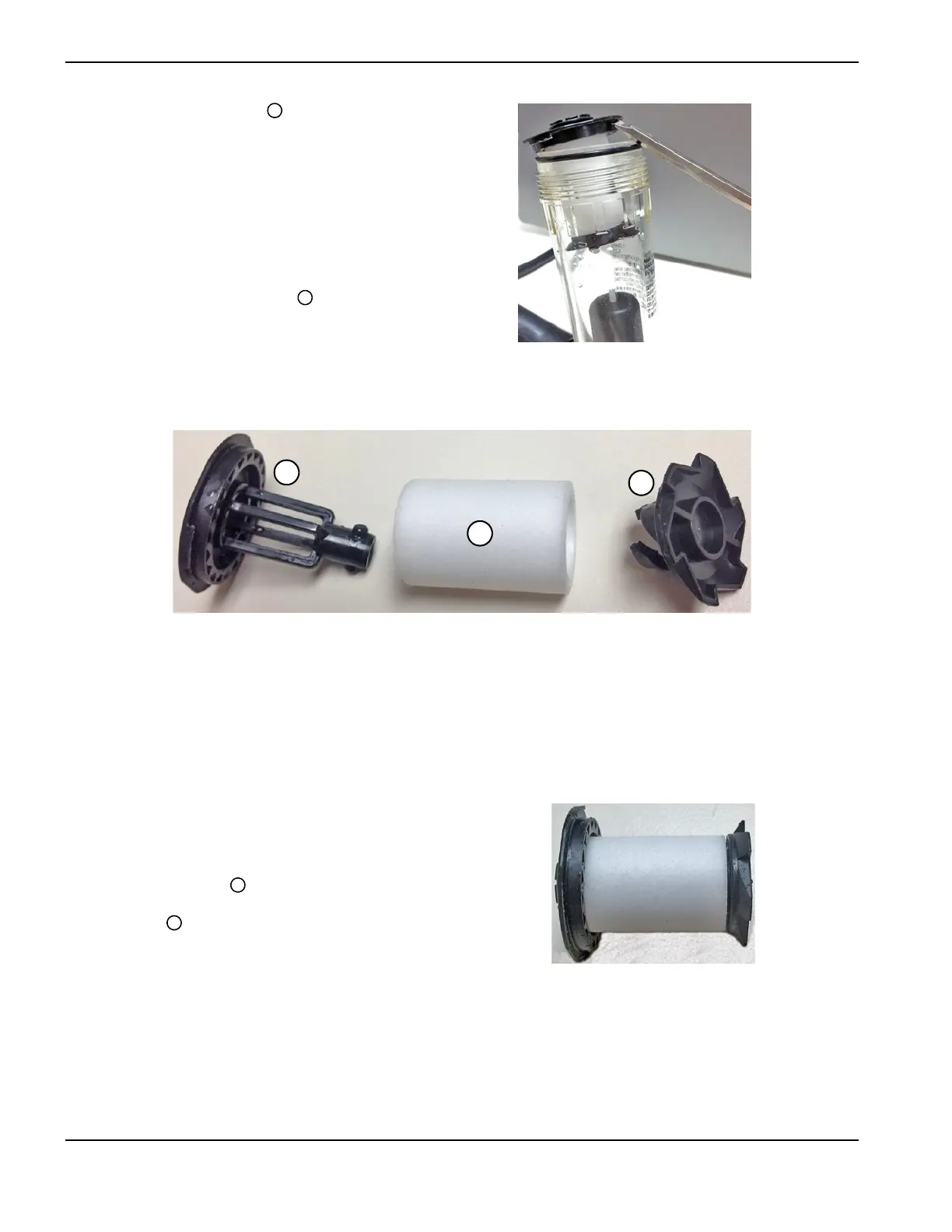

Figure 67
Install the air filter element and air filter bowl
1. Are you replacing the whole filter bowl assembly or only the air filter element?
 Air filter element: continue with the next step.
 Filter bowl assembly: start with step 5 on page 153.
2. Enclose the new air filter element in the plastic
fittings. Gently twist the plastic fittings until they lock
together and fit snugly against the air filter element.
3. Clean the filter bowl before installing it by wiping
away any oil, dirt, or other contaminants. Make sure
the O-ring on the bowl is not cracked or
damaged. See Figure 68 on page 153.
6
7
7
6
7
1
2
