Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 153
6 – Power Supply Component Replacement

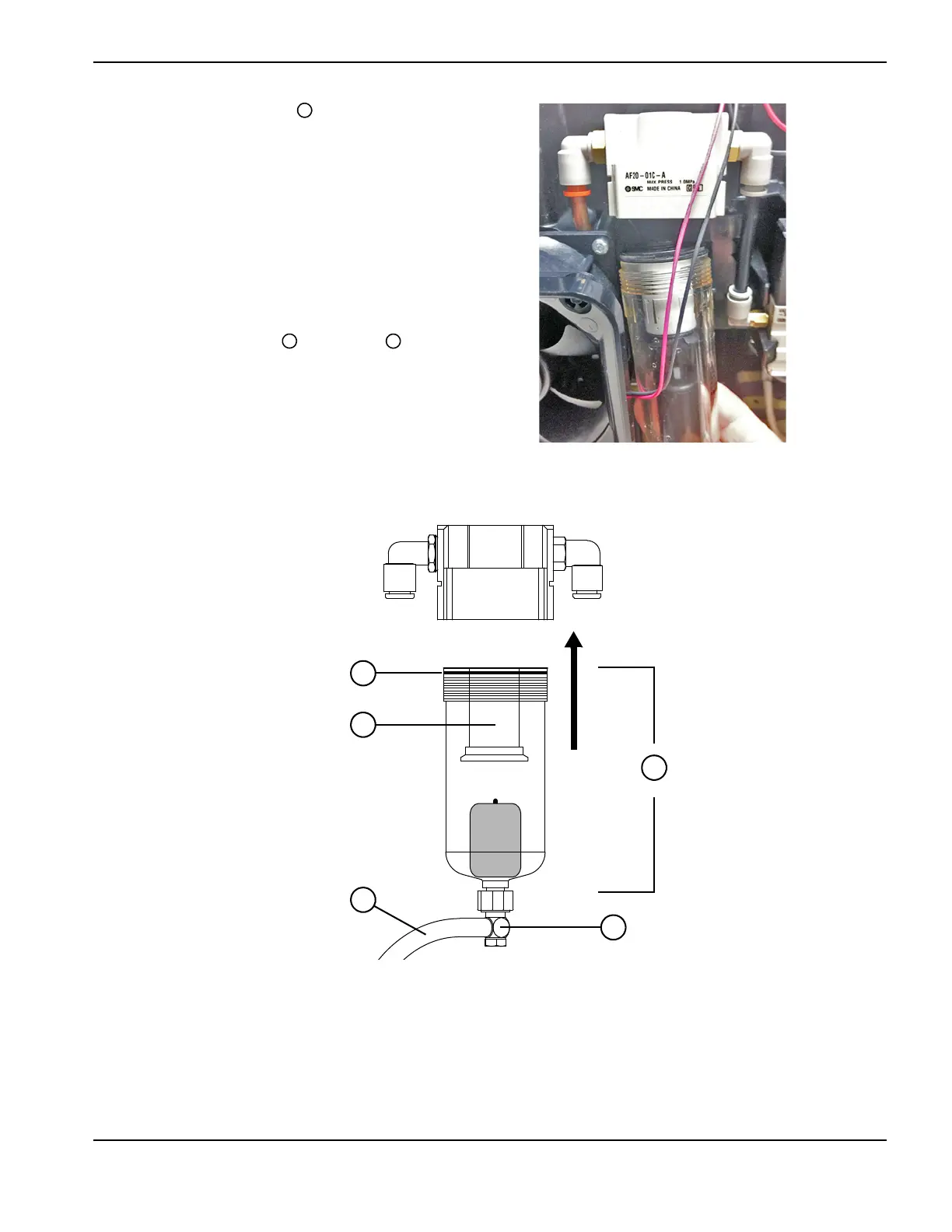

4. Place the air filter element inside the air
filter bowl. Press down on the filter element’s
top plastic fitting so that you hear it snap into
place.
5. Position the filter bowl behind the wires from
the fan. Screw the filter bowl into the air filter.
Tighten the filter bowl to finger-tight.

Be careful not to trap the fan’s wires behind
the filter bowl when you install the bowl.
6. Connect the drain hose to the fitting at
the bottom of the filter bowl.
7. Make sure the other end of the drain hose is
pressed securely in the hole in the base of the
power supply.
Figure 68
8. Put the fan plenum back in place, if you removed it earlier.
3
4
5
1
5
3
2
4

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
