1.2 Mechanical specifications
1-77
1. Specifications

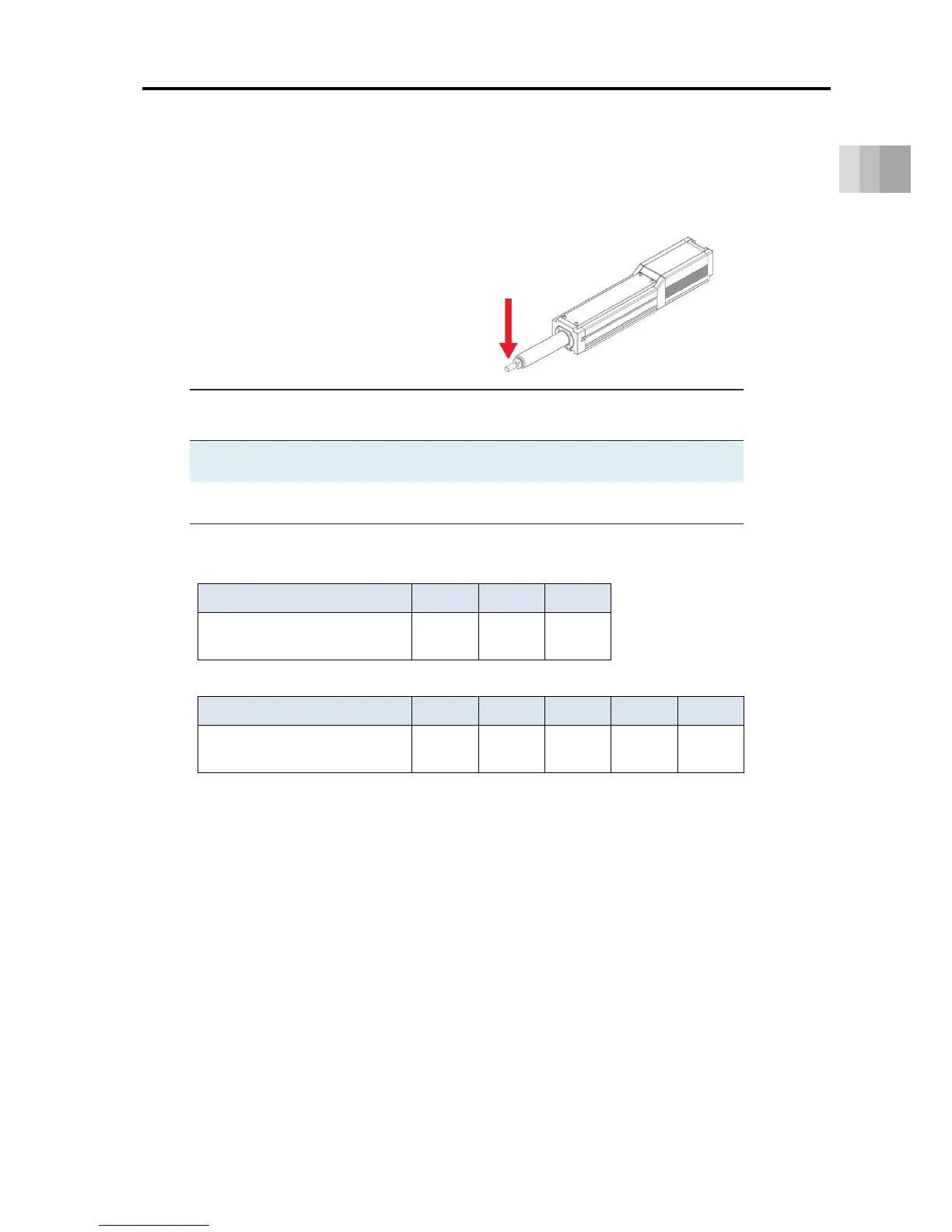

Because the radial cylinder type has a linear guide built into the body, radial and moment loads
can be applied to the rod.
The applicable radial and moment loads must meet the following three conditions.
1. The radial load acting on the rod
must not exceed the allowable value.
Type
Rod tip static
allowable radial load
Rod tip dynamic
allowable radial load
(Note 1)
EC-RR6□AH 190N 130N
(Note 2)
EC-RR7□AH 250N 170N
(Note 3)
(Note 1) The value assumes a basic rated life of 5,000km.
(Note 2) For stroke 300mm or more, set the value specified in the table or below.
Stroke (mm) 300 350 400
Rod tip dynamic
allowable radial load
40 35 25
(Note 3) For stroke 300mm or more, set the value specified in the table or below.
Stroke (mm) 300 350 400 450 500
Rod tip dynamic
allowable radial load
50 45 40 35 30
Radial load
