2.1 Precautions for transportation
2-2
2. Installation
[Handling after unpacking]
● Carry the slider type by its base part and the rod type by its body frame.
● Do not carry the unit by its motor cover, side cover, or stainless steel sheet
● Do not damage or drop the package during transportation.
● Do not apply excessive force to any part of the ELECYLINDER.
● The teaching port and power I/O connector are connected to the built-in controller,
so be especially careful not to apply external force.
→ For the names of each part, refer to "Part Names" on page Intro-14 to 17.

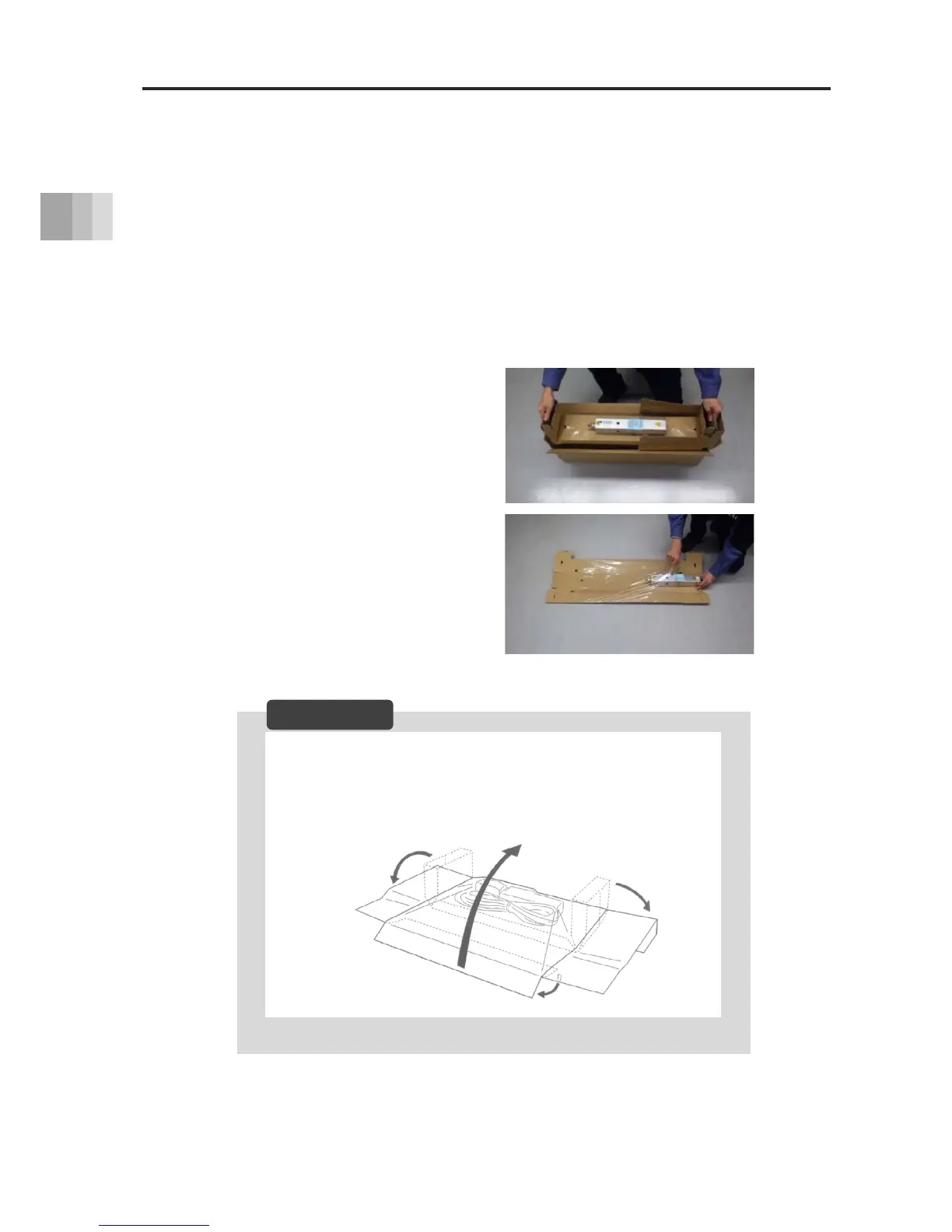

Take out the optional part tray,
and remove the actuator
wrapped in film
Unfold the cardboard and
take out the actuator
Reference
These packaging materials can be recycled as cardboard.
The cardboard and urethane film are attached only with thermal bonding
and use no adhesive.
This means they can be recycled as cardboard when disposed of, reducing
industrial waste cost burdens.
Unfold the cardboard as in the
figure, and pull off the film.
The film is also made of
recyclable thermoplastic resin.
The film can be easily removed.
