2.3 Installation of slider type
2-12
2. Installation

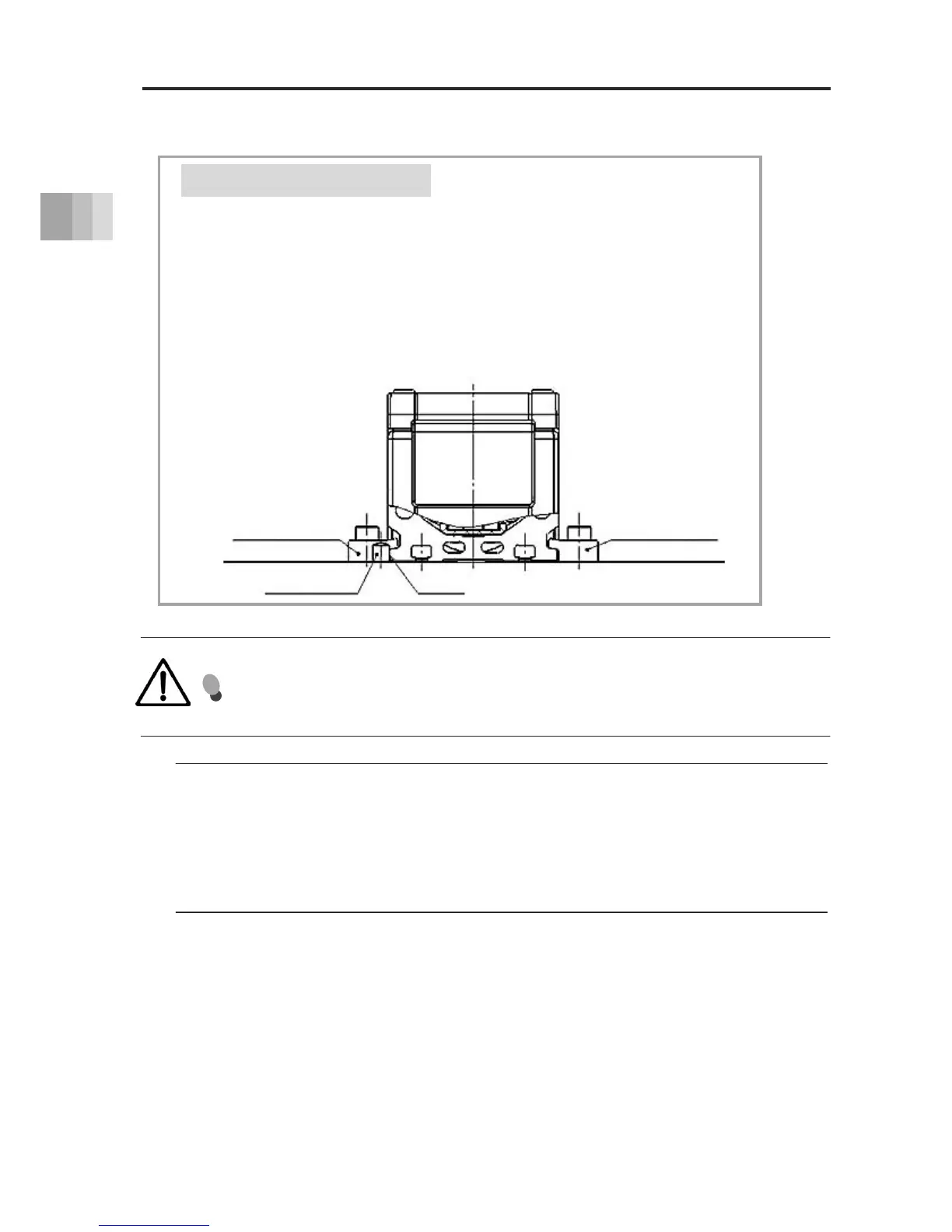

Foot bracket mounting procedure
Before fixing, use a positioning pin or the like to position the bracket
in the width direction.
The mounting procedure is as follows.
(1) Press against the base reference surface with a positioning pin, etc.
(2) Maintaining the pressure, fix foot bracket A on the opposite side.
(3) Finally, fix foot bracket B.
Caution
Sufficient fastening force may not be obtainable when mounting with methods
other than the procedure above.
Notice
● The bolts for fixing foot brackets on the installation surface are to be prepared
by the customer.
● The use of high-strength bolts of ISO-10.9 or higher is recommended.
● Make sure the internal thread and bolt effective engagement length is
approximately 1.8 times the nominal diameter or more.
Foot bracket B
Foot bracket A
Positioning pin
Reference
surface
To Next Page
