2.5 Installation of rod type
2-28
2. Installation
[Precautions for horizontal mounting using front brackets/flanges]

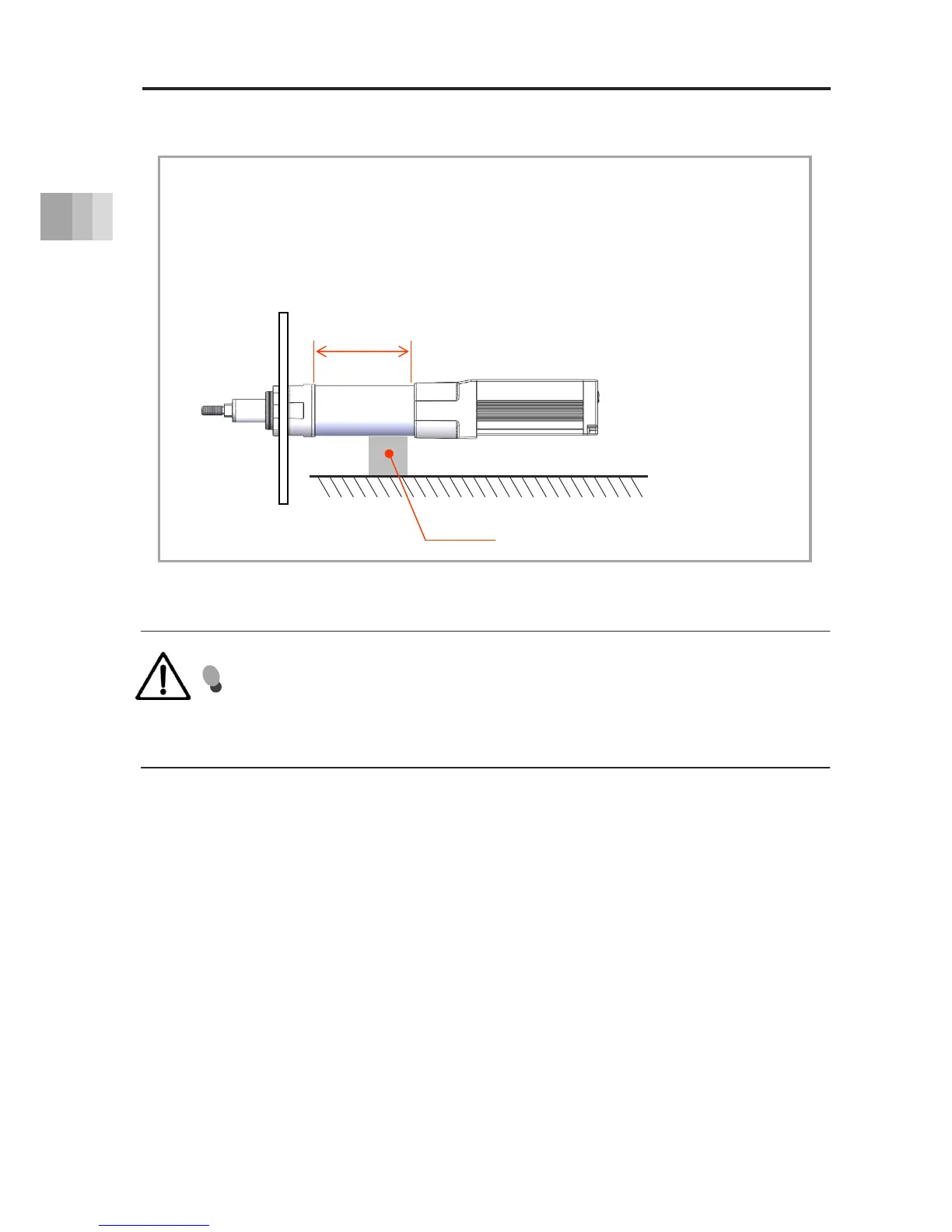

Prepare a support block for the body, as shown in the figure below,
for a stroke of 150mm or more.
The support block should be installed on the frame motor side.
We recommend either using the optional foot bracket or keeping
the support block (aluminum alloy, etc.) close against the frame.
Caution
Even when the stroke is less than 150mm, a support block is strongly
recommended in order to avoid vibration generated due to the operation
conditions or installation environment, which may lead to malfunctions or
damage to parts.
Support
block
Installation range
