IAI EC-RR6*AH series User Manual

2.7 Installation of high rigidity radial cylinder type
2-56
2. Installation

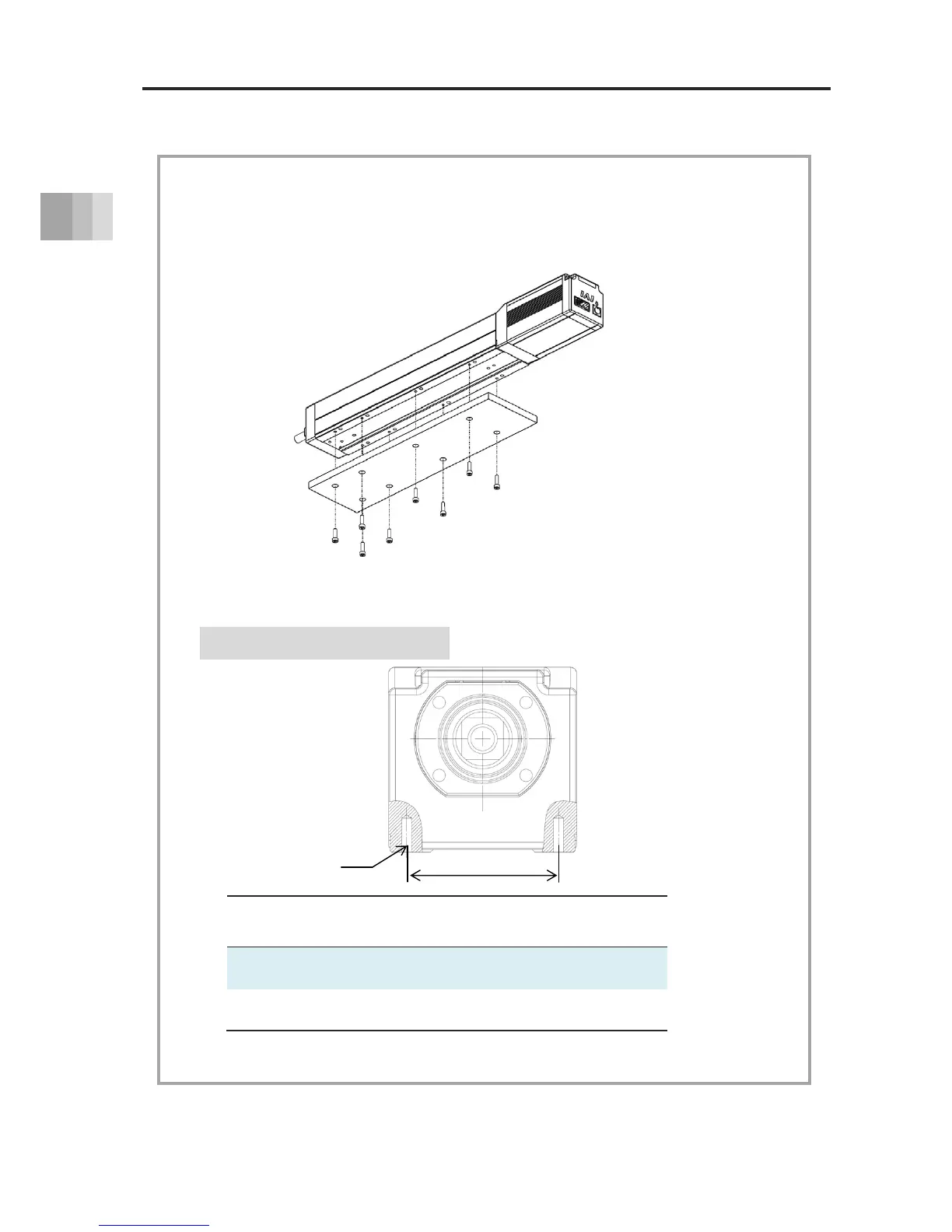

[When using the tapped mounting hole on the base bottom]
The unit has a tapped mounting hole at the bottom of the base for mounting.
→ For details regarding the position and dimensions, refer to "Chapter 9 External
Dimensions".
Tapped mounting hole dimensions
Type
Tap
diameter
A
Effective thread
depth
EC-RR6□AH
EC-RR6□H
M4 51mm 8mm
EC-RR7□AH
EC-RR7□H
M5 61mm 10mm
A
Tap
