IAI EC-RR6*AH series User Manual

2.7 Installation of high rigidity radial cylinder type
2-66
2. Installation

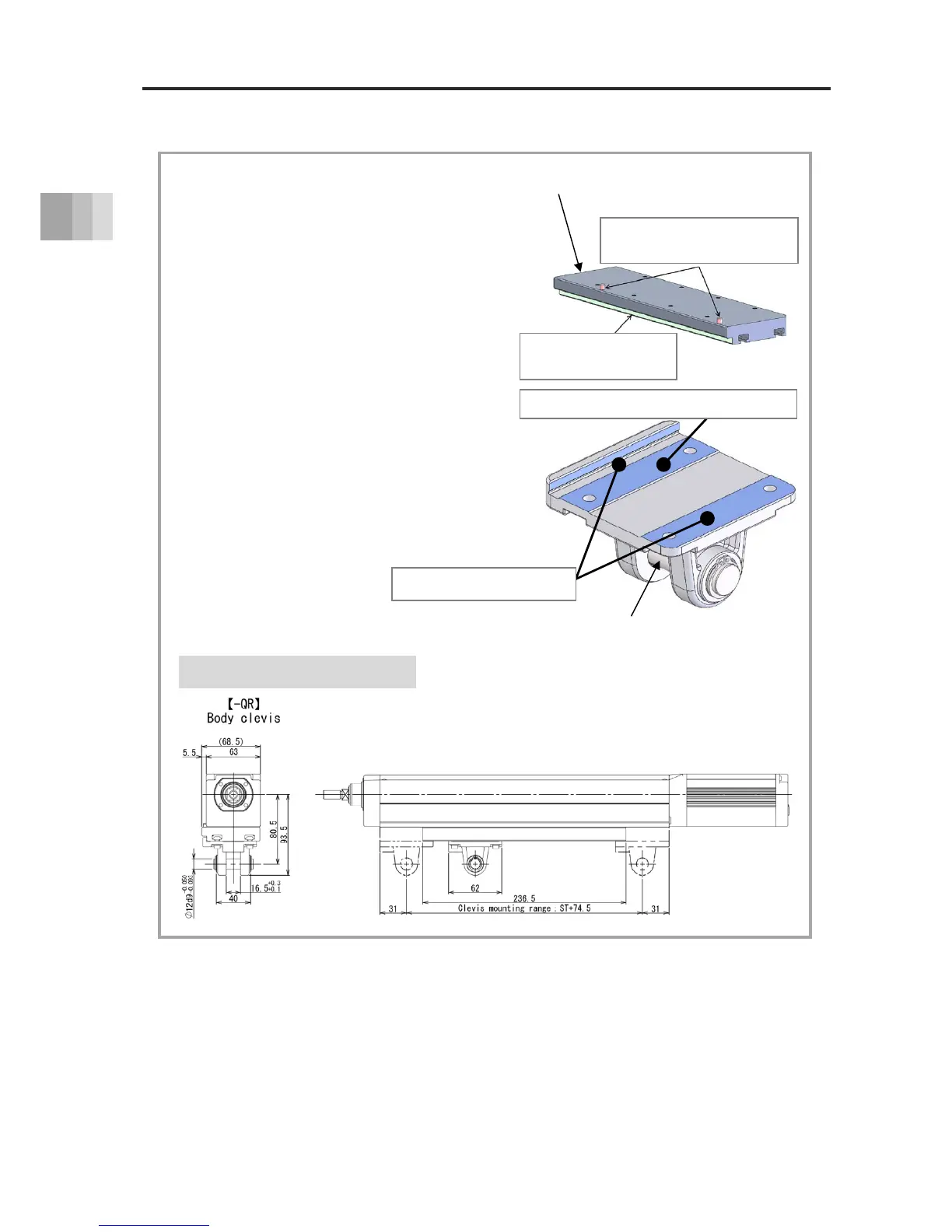

● Body clevis (-QR) mounting method and mounting dimensions
1. Press the 2 parallel pins on the clevis
mounting plate against the base side
reference surface.
2. Mount the clevis mounting plate on the base.
* Fix the clevis mounting plate with at least 4
bolts.
The clevis mounting plate position can be
adjusted at a 50 mm pitch.
3. Insert 4 square nuts into the clevis mounting
plate T-slot.
4. Using the inserted square nuts, fix the body
clevis bracket with the bolt. (temporary
fixing)
5. Press the body clevis bracket reference
surface against the clevis mounting plate
reference surface.
6. Fully tighten the bolts to complete the fixation.
For EC-RR6□AH and EC-RR6□H
Strikes the
p
late side reference surface
Plate mounting surface
Parallel pins pressed to
base side reference surface
Clevis reference surface
p
ressin
g
surface
Clevis mounting plate
Body clevis bracket
