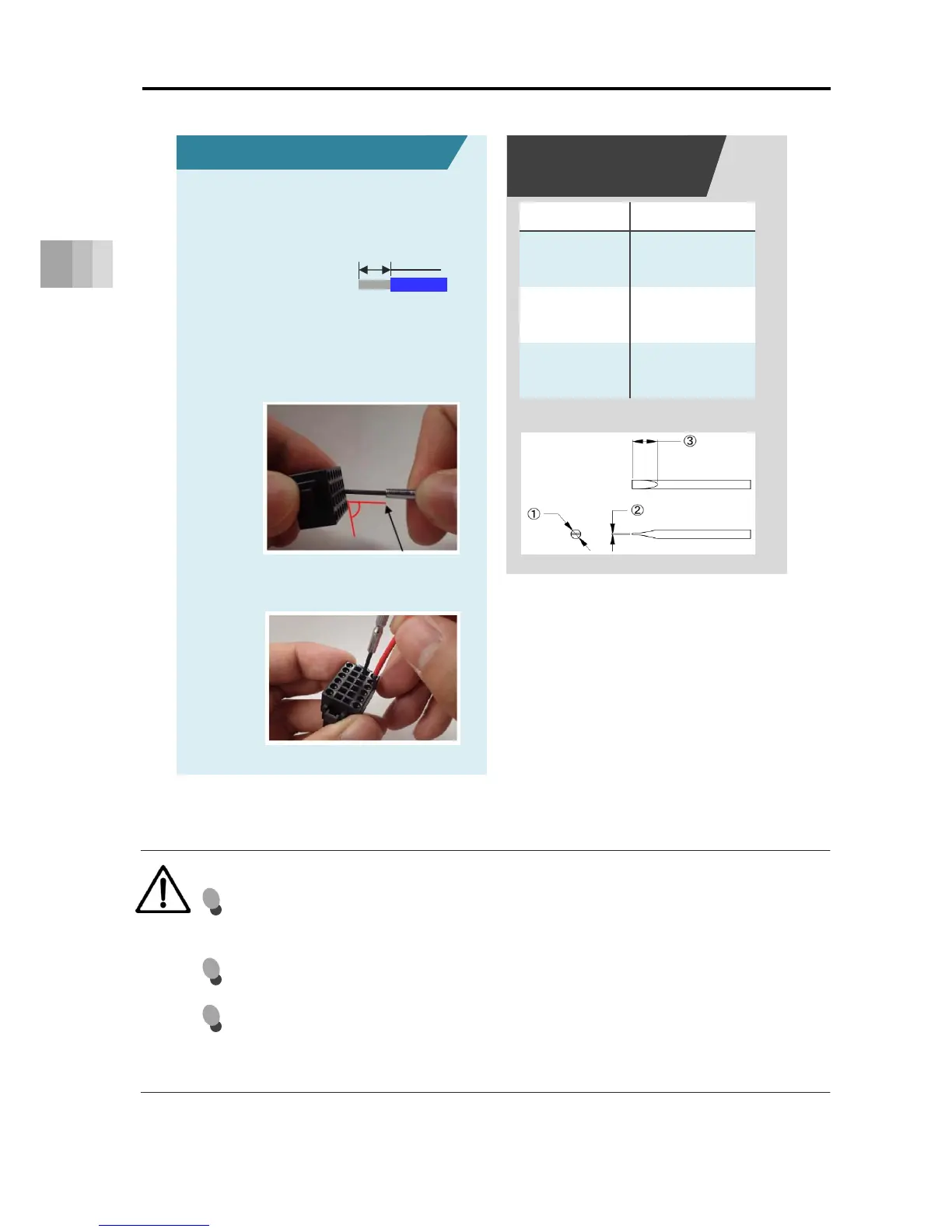

3.4 Wiring connections (for connectors)
3-9
3. Wiring
7mm of insulation should be stripped
from the wire end.
Slightly twist the core wire.
7mm
Insert the recommended
precision screwdriver
slowly into the connector tool
insertion slot at an angle.
After fully inserting the wire,
pull out the precision screwdriver.
Caution
Take care not to twist the core wire too far. This will reduce the retention force, causing
the wire to fall out of the connector and possibly causing insufficient current or
short-circuit.
Do not insert the precision screwdriver violently into the connector, or twist it hard. This
may damage the connector housing and internal spring.
If an electric wire thinner than the applicable diameter or wiring longer than 10m is used,
insufficient current may trigger an alarm and the performance of the ELECYLINDER
may be degraded.
Item Specifications
(1) Shaft
diameter
1.6 ±0.03mm
(2) Blade
thickness
0.2 ±0.1mm
(3) Tip angle
length
4.2 ±0.2mm
Wiring mounting method
Recommended
precision screwdriver
To Next Page
