Part Names
Intro-18
Motor (built in controller)
[Teaching port]
This connector is for the connection of a teaching pendant or PC software.
When connecting, remove the cap.
[Status indicator LED]
The LED on the right side as seen from the motor side shows the servo ON/OFF
status and alarm status, and the LED on the left side as seen from the motor
side displays the wireless status.
[Power I/O connector]
This connector connects power and I/O wiring.

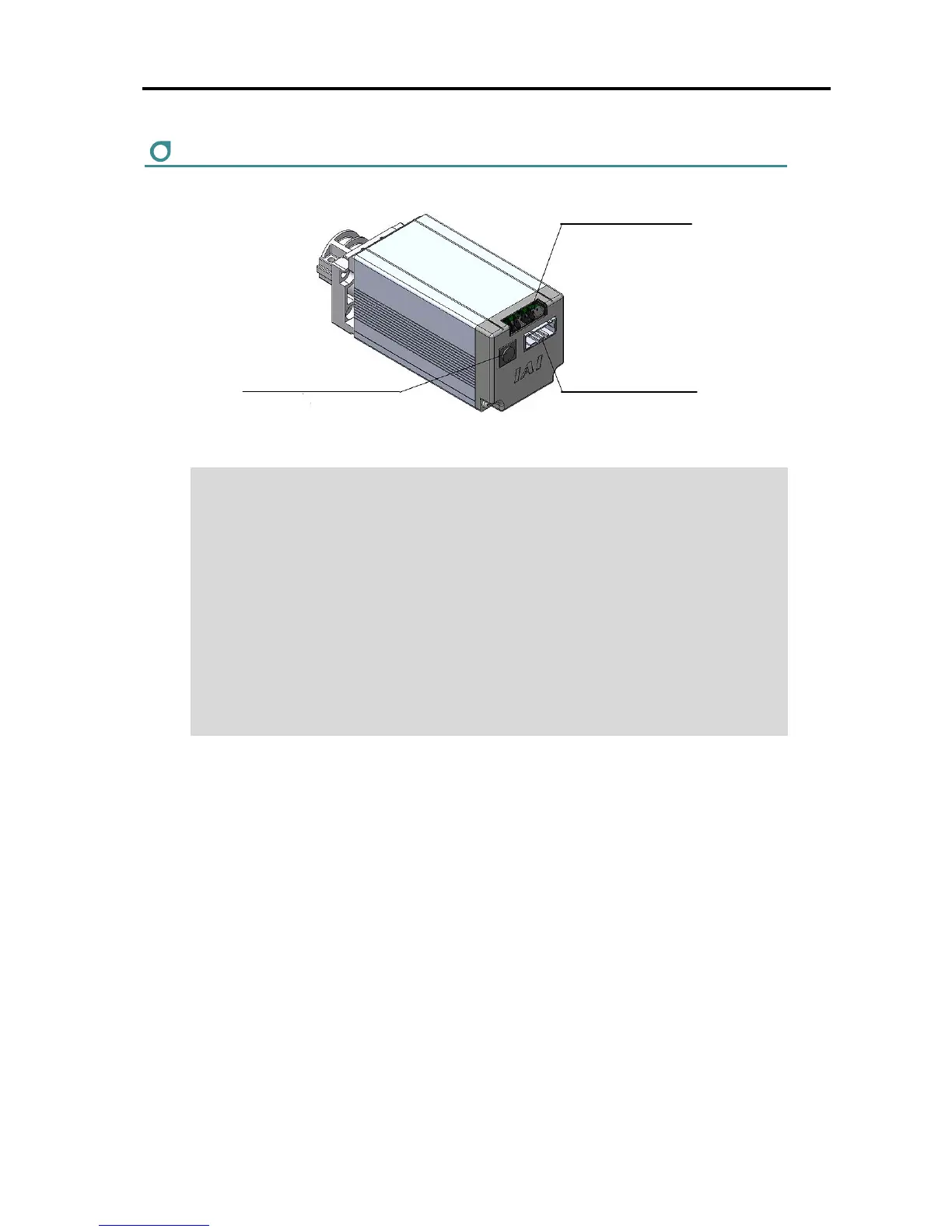

Status indicator LED
Teaching port
Power I/O connector
