8.6 How to replace components
8-21
8. Maintenance and Inspection
[EC-S6□AH/S7□AH, EC-S6□H/S7□H]
(1) Loosen the screws and remove the end cover.
(2) Remove the track housing cover, loosen the screws to remove the wiring/connectors,
then remove the used motor cover assembly.
→ Refer to "Precautions for connectors/wiring" on page 8-23.
(3) Mount the wiring/connectors to the new motor cover assembly and return it to the
original state.
(4) Mount the end cover.

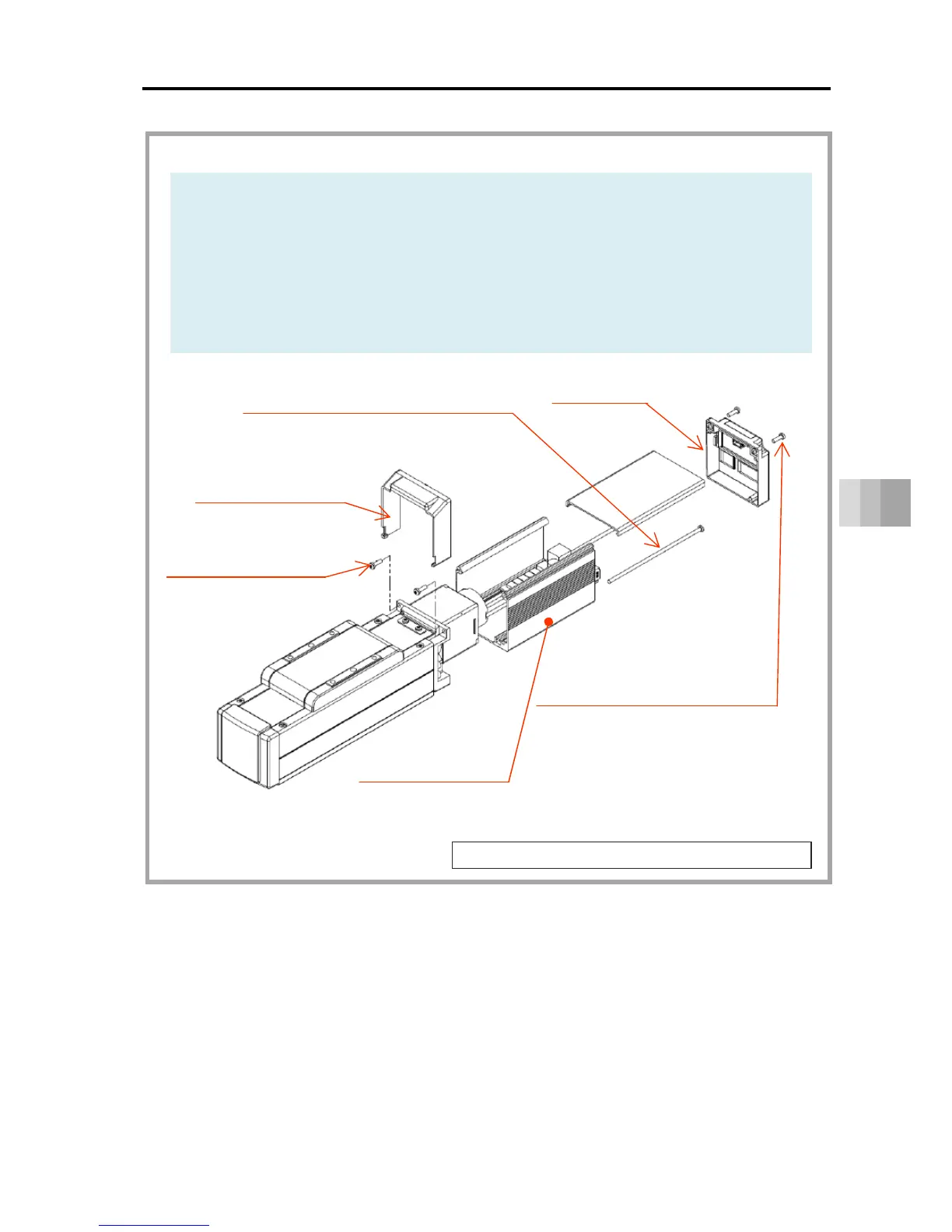

High rigidity slider type replacement method
Motor cover assembly
Track housing cover
Cross-recessed tapping screws x 2 pcs
(M3 x 10, tightening torque 0.60N･m)
End cover
Cross-recessed pan screws x 2 pcs
S6□AH/S7□AH, S6□H/S7□H:
M3 x 110/150, tightening torque 0.60N･m
(M3 x 150/200 for models with brake)
Cross-recessed tapping
screws (S-Tite) x 2 pcs
S6□AH/S7□AH, S6□H/S7□H:
M3 × 10, tightening torque 0.60N･m
To Next Page
