IAI EC-RR6*AH series User Manual

8.6 How to replace components
8-28
8. Maintenance and Inspection
Body model
End cover assembly
model number (with wireless
communication circuit board cable)
EC-S6/R6/RR6
EWB-EC-SR6
EC-S7/R7/RR7
EWB-EC-SR7
EC-S6□AH/RR6□AH
EC-S6□H/RR6□H
EWB-ECH-SRR6
EC-S7□AH/RR7□AH
EC-S7□H/RR7□H
EWB-ECH-SRR7

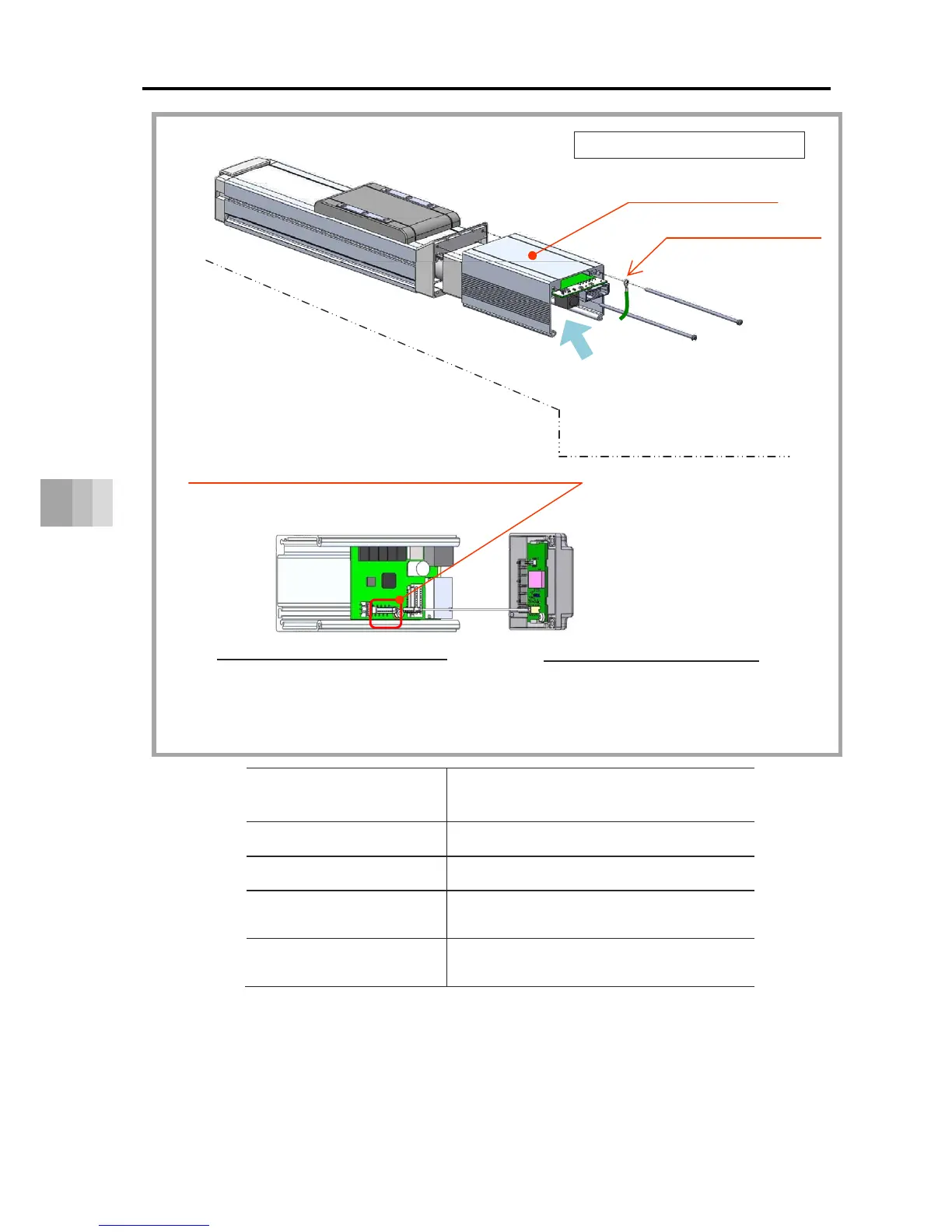

Motor cover assembly
Notes on connectors/wiring
Motor cover assembly interior
(A arrow view)
A
Frame grounding wires
should be jointly fastened
For replacement, remove the old end cover assembly connector
and mount the new end cover assembly connector
End cover assembly interior
Wireless communication circuit board [Model：IABL3826]
