8.6 How to replace components
8-32
8. Maintenance and Inspection
Body model Motor unit model
Coupling spacer model
EC-S6/S6AH/S6H/
R6/RR6/RR6AH/RR6H
EC-MUSR6(-WA)(-B) CPG-EC-SR6
EC-S7/S7AH/S7H EC-MUS7(-WA)(-B)
CPG-EC-SR7
EC-R7/RR7/RR7AH/RR7H EC-MUR7(-WA)(-B)
WA: Battery-less absolute specification, B: Specification with brake

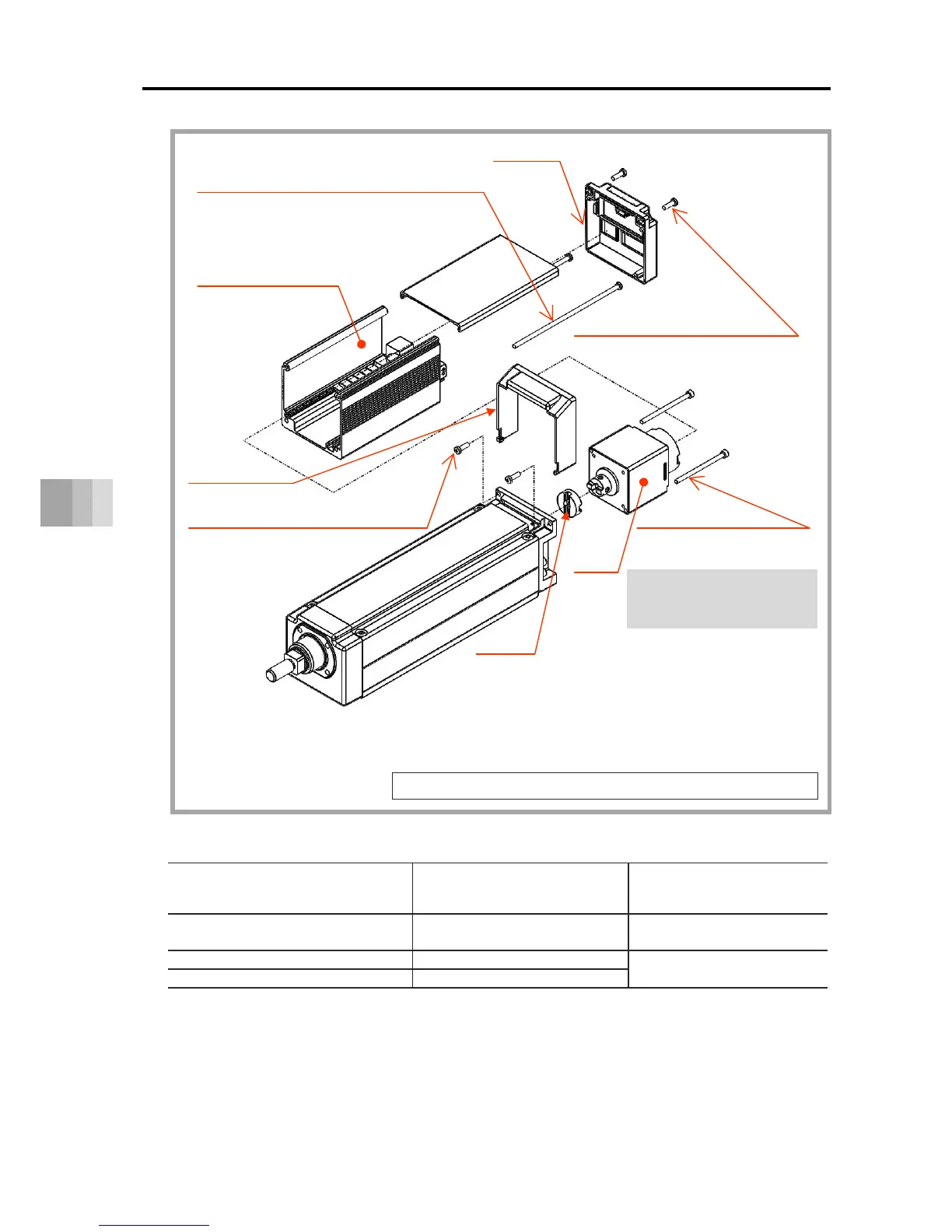

High rigidity radial cylinder type replacement method
Motor cover assembly
(controller substrate)
Cross-recessed tapping screws x 2 pcs
(M3 x 10, tightening torque 0.60N
m)
Cross-recessed pan screws x 2 pcs
RR6AH/RR7AH, RR6H/RR7H:
M3 x 110/150, tightening torque 0.60Nm
(M3 x 150/200 for models with brake)
End cover
Hex socket head bolt
RR6: 2 pcs, M3 x 50, 0.83N
m
RR7: 4 pcs, M4 x 15, 1.76N
m
Motor
Coupling
spacer
* Hex socket head bolts are used to
fix the motor.
They are not cross-recessed bolts.
Track housing cover
Cross-recessed tapping screws (S-Tite) x 2 pcs
RR6AH/RR7AH, RR6H/RR7H:
M3 x 10
Tightening torque 0.60N
m
