8.6 How to replace components
8-31
8. Maintenance and Inspection

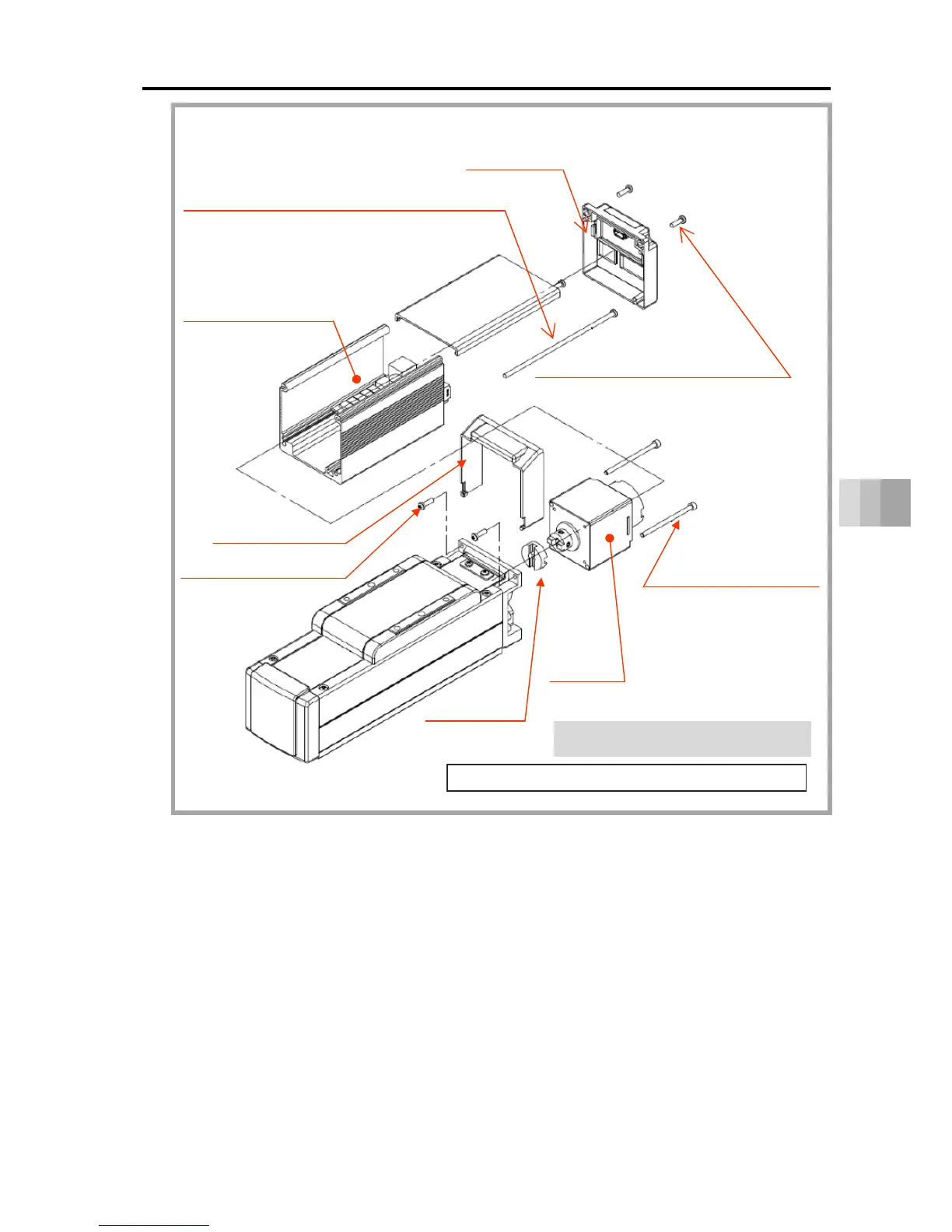

High rigidity slider type replacement method
Motor cover assembly
(controller substrate)
Cross-recessed tapping screws x 2 pcs
(M3 x 10, tightening torque 0.60Nm)
Cross-recessed pan screws x 2 pcs
S6AH/S7AH, S6H/S7H:
M3 x 110/150, tightening torque 0.60Nm
(M3 x 150/200 for models with brake)
End cover
Hex socket head bolt
S6: 2 pcs, M3 x 50, 0.83Nm
S7: 4 pcs, M4 x 15, 1.76Nm
Motor
Coupling
Spacer
* Hex socket head bolts are used to fix the motor.
They are not cross-recessed bolts.
Track housing cover
Cross-recessed tapping screws (S-Tite) x 2pcs
S6AH/S7AH, S6H/S7H:
M3×10,
tightening torque 0.60N
m
