1.2 Mechanical specifications
1-64
1. Specifications

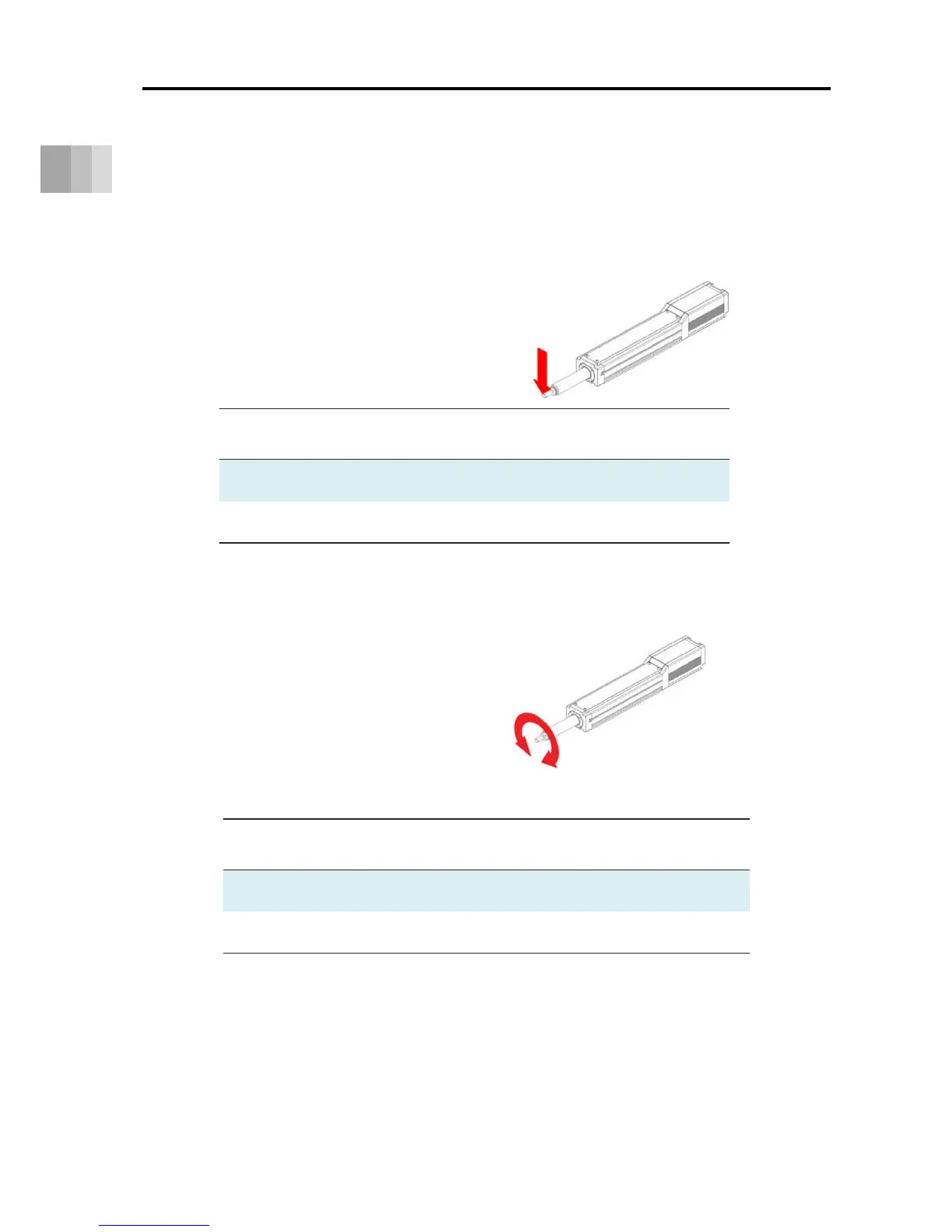

Because the radial cylinder type has a linear guide built into the body, radial and moment loads can
be applied to the rod.
The applicable radial and moment loads must meet the following three conditions.
1. The radial load acting on the rod must
not exceed the allowable value.
Type
Rod tip static allowable
radial load
Rod tip dynamic allowable
radial load
(Note 1)
EC-RR6 90N 45N
EC-RR7 120N 60N
(Note 1) The value assumes a basic rated life of 5,000km.
2. The torque (Mc) acting on the rod must
not exceed the allowable value.
Type
Rod tip static allowable
torque
Rod tip dynamic allowable
torque
(Note 1)
EC-RR6
5.5N･m 5.5N･m
EC-RR7
10.5N･m 10.5N･m
(Note 1) The value assumes a basic rated life of 5,000km.
Radial load
Torque (Mc)
